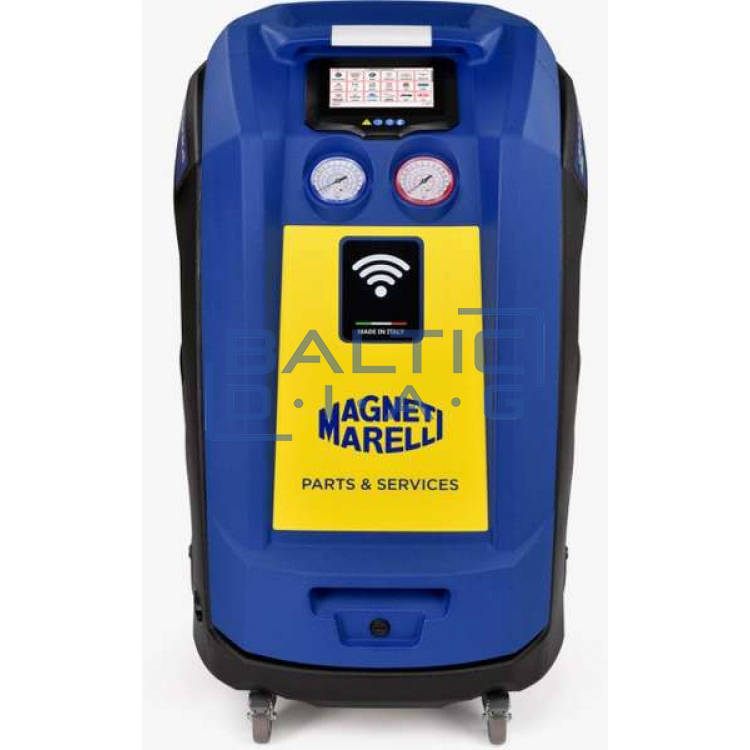

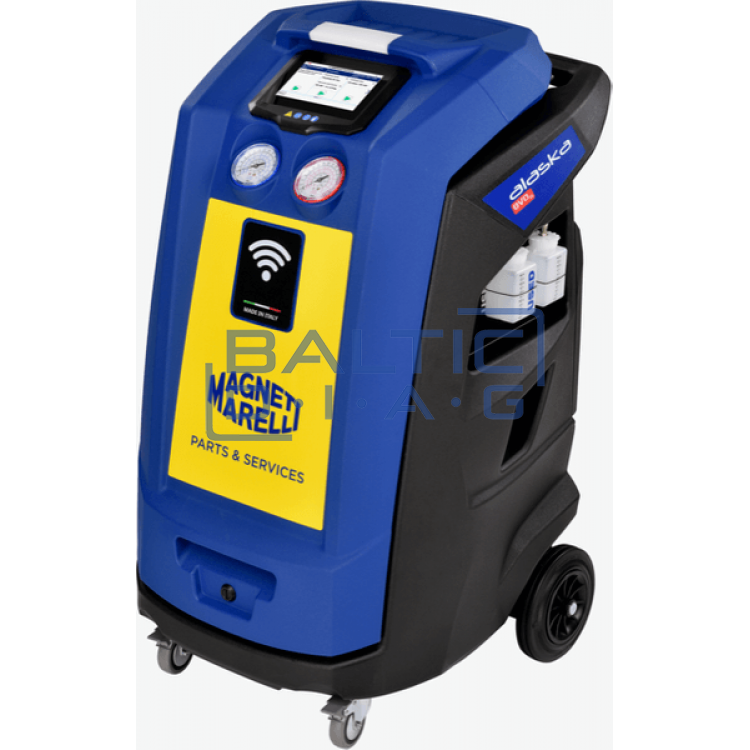

A/C filling station Magneti Marelli Alaska EVO R134A

A/C filling station Magneti Marelli Alaska EVO R134A

Manufacturer: Magneti Marelli. Warranty: 24 months

The Alaska EVO air conditioner filling station of the new series meets all the technical needs of professional service centers and professionals. The requirements relate to the maintenance and repair of air conditioning systems in a variety of vehicles, including hybrid and electric vehicles.

The new Alaska station offers a wide range with many features specially designed to make air conditioning services much more efficient, easier to use and friendlier to nature and the environment.

Advantages:

• Secure charge: It ensures that the air conditioning system is filled regardless of its capacity or ambient temperature.
• Vacuum pump oil regeneration: The internal vacuum pump cleaning process has significantly extended the oil change intervals (up to 1000 hours), which has significantly reduced maintenance costs.
• ECO quick couplers: no refrigerant leakage, thanks to the improved hose extraction system and updated quick connectors.
• Automatic venting of the stop cylinder: Due to the automatic release of non-condensable gases, the inner cylinder contains only pure refrigerant.
• Remote Assistance: Using Wi-Fi wireless connectivity and the Alaska Manager application, an authorized technician can remotely take control of the device and provide appropriate support or perform device management actions.
• Ability to perform device software updates using USB connection and provide remote device check.
• Extremely compact design, ideal for mobile solutions.
• Database updates, for 2 years.

Functions:

• Safe filling and reconditioning of vacuum pump oil
• 7" high resolution, touch control screen
• One touch cover opening
• Build in database
• Automatic air purge valve
• 2 oil containers, (1 for new oil and 1 for used oil)
• Remote support using Wi-Fi connection
• Automatic refrigerant recovery and delivery
• Automatic oil extraction from the system
• Manual operation mode
• Automatic service hose compensation
• Secure charge filling function
• Reconditioning the vacuum pump oil
• A/C Performance Testing
• Tank pressure sensor

Technical parameters:

• Refrigerant tank capacity: 12 liters
• Refrigerant type: R134a
• High performance vacuum pump: 50 l/min, 0.0 mbar
• Compressor displacement: 14 cc
• Recovery: <95%
• Pressure sensor: LP
• Oil scale: Yes
• Operating ambient temperature: 10°C – 50°C
• Supply voltage: 230 V, 50 Hz, 1 phase
• Power: 800 W
• Hose length: 4.5 m
• Number of available menu languages: 25 languages
• Dimensions: 620 x 720 x 1090 mm
• Weight: 74 kg
• Certificates: CE, PED

Additional accessories:

• Eco quick connectors
• Thermal printer for printing service reports
• Service kit for servicing hybrid and electric cars
• Nitrogen or hydrogen leak testing equipment
• Gas identifier
• The database is dedicated to agricultural machinery or construction machinery
