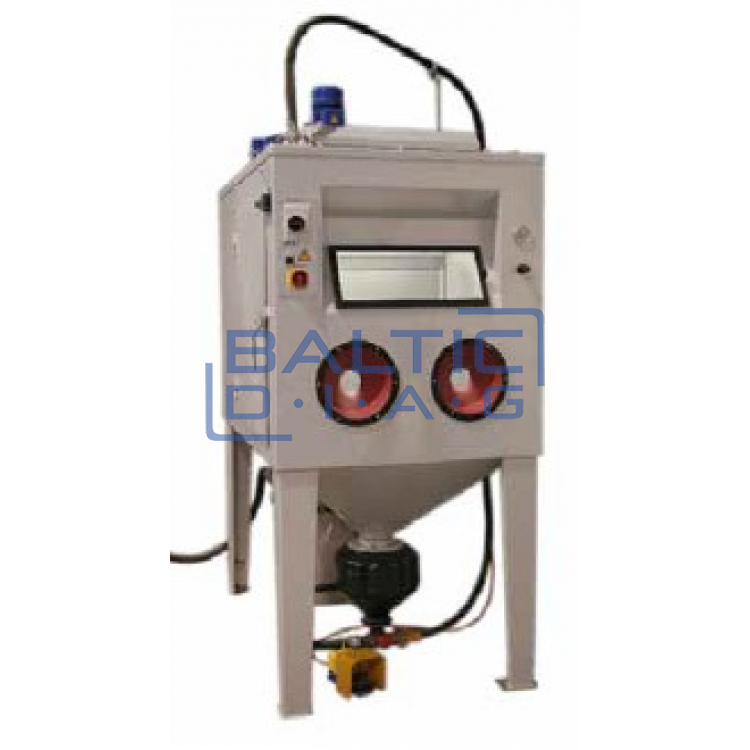

Airblast ABD-1000 Pressure sandblasting cab with automatic sandblasting function
This compact sandblasting cab is primarily suitable for gentle or light work such as:
The cab has a working space, followed by an abrasive collection funnel. The dust filter with separation is part of the sanding cabin. The working space is lined with 3 mm. Rubber walls and doors. A separation filter is connected to the sandblasting cabinet to separate large flows of incoming air into the filtration system. A sprayer is installed after the assembly funnel. The cab is equipped with wear-resistant parts to minimize equipment maintenance requirements.
The structure consists of 3 mm steel plates, finished, painted in gray.
Cabin
Working space Doors
Height
2490
1000 mm
850 mm
Width
1050 mm
1000 mm
700 mm
Depth
1700 mm
1000 mm
The set includes:
Opening door with safety control switch.
Lighting 4 x 18 W.
3 perforated grilles in the working space
1 interchangeable box
Box 1 protection.
2 flexible rubber cavities.
Installed control panel with main switch, control safety switches for lighting and extraction.
1 nozzle holder with 8 mm Borium Carbid sprayer
¾ Sandblasting hose, which is brought through the ceiling of the unit
Control valve from 0 - 10 bar, operated by the operator, changing the valve parameters and monitoring the front, integrated valve.
Pneumatic foot pedal.
Automatic sandblasting vessel:
Diameter: 350 mm
Maximum pressure: 6 bar
Construction:
The sandblasting vessel, with a capacity of about 17 l, is made of 5 mm steel plates and is equipped with self-closing two-level valves and a shredder and sieve. The further set consists of electronic 2/2 inlet valves 1 ”and an abrasive measuring valve“ Microvalve ”.
Operating principle:
The abrasive enters the funnel through the working grille in the working space of the chamber. At the lowest part of the funnel, the abrasive falls into the mixing tube, through which it is constricted and fed through the sandblasting hose. The shrinkage force can be adjusted by changing the position of the sliding valve. The abrasive hose is connected to the abrasive sprayer. A compressed air hose is also connected to the sprayer. The foot pedal is used to apply pressure to the air supply hose. This creates a vacuum in the abrasive hose, which creates abrasive traction and entry into the sprayer. The sanding pressure can be adjusted by adjusting the compressed air supply pressure.
