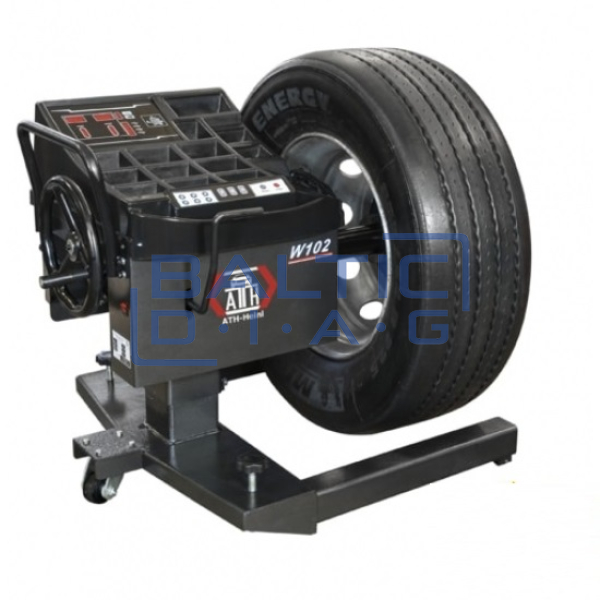

ATH W102 mobile wheel balancing machine for cars, vans and trucks

ATH W102 mobile wheel balancing machine for cars, vans and trucks

Country of origin: ATH-Heinl (Germany); Warranty 3 years

Description:

  Can be used directly on the machine, or near assembly machines;

  Manual operation with brake and 5 balancing programs;

  No extra jack required;

  Compact dimensions;

  Controlled by a microprocessor, dual LED display;

  Supplied with cones (45 - 225 mm and 270 - 287 mm); quick nut, pliers, rim width gauge.

Parameters:

Max. diameter of internal holes 45 - 225 mm / 270 - 287 mm

Shaft diameter 40 mm

Accuracy +/- 1.0 g (PKW) / +/- 10.0 g (LKW)

LED screen

Rim width 4 - 15 "

Rim diameter 12 - 24 "

Maximum wheel weight 160 kg

The maximum wheel diameter is 1200 mm

Supply voltage 230 V / 50 Hz

Weight 221 kg

Supply voltage (electric) 400 V AC / 50 Hz

Balancing programs 5
