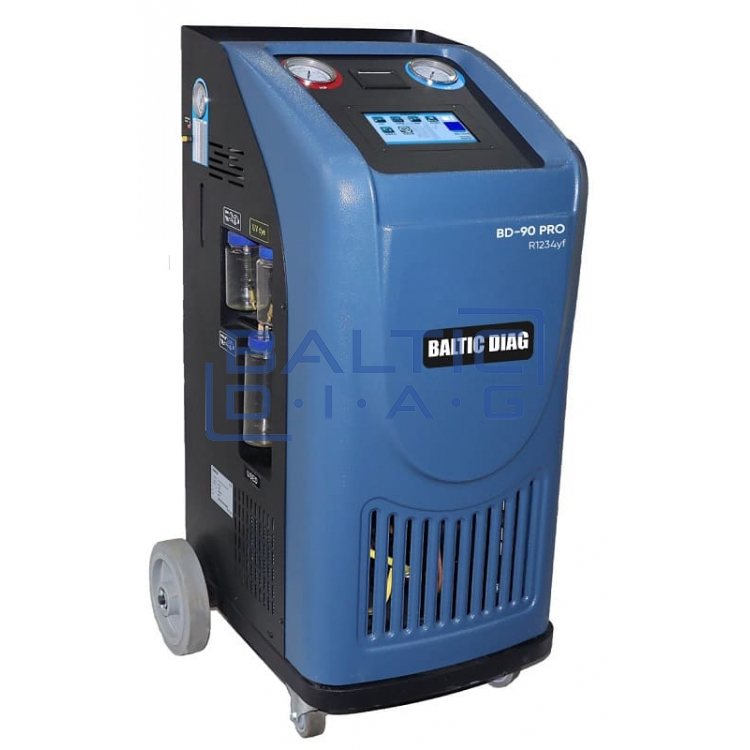

Automatic AC service station BD-90 PRO R1234yf

Automatic AC service station BD-90 PRO R1234yf

Warranty 12 months

The automated station model is designed for professional and fast filling of the air conditioning system. This equipment has all the basic functions and characteristics required for professional work with R1234yf Freon air conditioning systems. The station performs the functions of removal, vacuuming, permeability, filling and oil extraction. There is an integrated database to service the most popular car brands.

• Conditioner station full control in Lithuanian. However, this station also has more than 20 other languages: English, Russian, Polish, Estonian, German, French, Spanish and more.
• There are several thousand car models in the database up to 2017.
• At AC stations, customers can independently install the database of their desired cars.

• HP and LP hose lengths are 3 meters each, making this station particularly mobile and easy to use.
• A simple but high-quality connection system guarantees safe operation in processes such as Freon extraction and recycling; vacuum / leak check; pressure testing.
• Conditioner refill with built-in printer so you can print results when you're done.
• Oil extraction: automatic extraction of oil, as well as separation and cleaning of the entire system with simple extraction functions.
• The station has large casters and two front smaller castors that lock. This will give you mobility and comfort when working on uneven floors.
• Easily accessible vacuum pump for easy oil change.
• Suitable for use not only for cars, but also for heavy transport.


Functions and features:

• Operating mode: automatic
• Freon extraction: automatic
• Freon filling: automatic
• Oil removal: automatic
• Vacuuming: automatic
• Leak test: automatic
• UV injection: yes
• Vacuum leakage test: yes
• Condenser and cooling fan: Available
• Printer: Available
• Flushing function: yes
• Support for hybrid A / C systems: None

Technical data:

• Refrigerant type: R1234yf
• Manual control valves: 2
• Screen: 7"color, touch
• Refrigerant volume: 13.6 kg
• Accuracy: ± 10 g
• Freon filling speed: 2000 g / min
• Recirculation speed: 250 g / min
• HP indicator range: -1 ~ 30 bar
• LP indicator range: -1 ~ 16 bar
• Recovery rate: ≥95%
• Compressor power: 3/8 hp
• Vacuum pump speed: 120 l / min
• New oil bottle capacity: 250ml
• Used oil bottle capacity: 400ml
• New / used oil / UV measurement accuracy: ± 5 g
• Power supply: AC220V 50 / 60Hz
• Power: 280W
• Max. pressure: 20 bar
• Dimensions: 560x630x1070 mm
