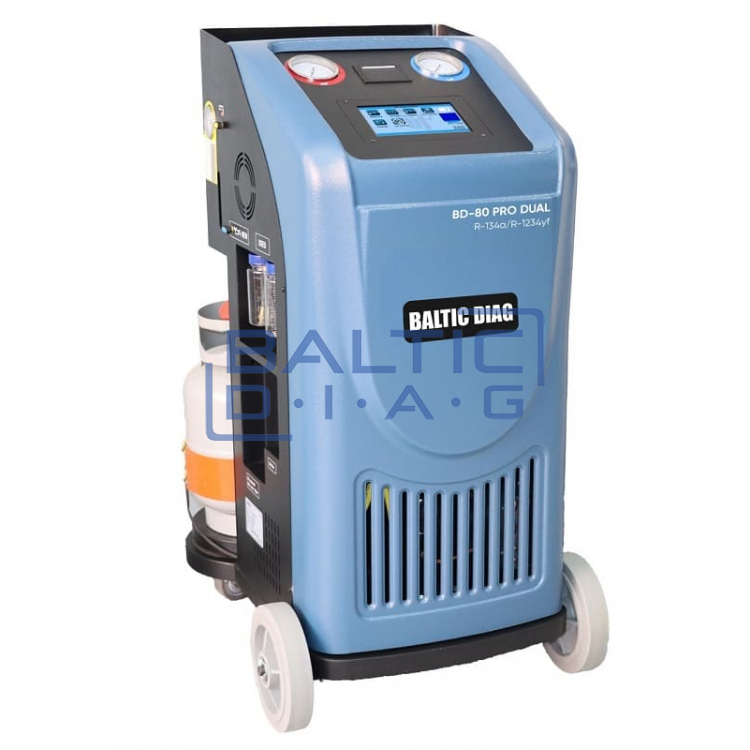

Automatic conditioner filling station BD-80 Pro Dual Extra

Automatic conditioner filling station BD-80 PRO Dual with R1234yf refrigerant analysis equipment

Warranty 12 months

A new generation automatic filling station for car AC systems that works with even two refrigerants - R134a and R1234yf. This air conditioner station has all the basic functions and characteristics required for professional work with R134a and R1234yf refrigerant air conditioning systems. The station automatically performs the functions of removal, vacuuming, permeation, filling and suction of grease. There is an integrated Lithuanian language database designed to serve the most popular car brands.

• Air conditioning stations are all operated in Lithuanian. In addition, it has more than 20 other popular languages: English, Russian, Polish, Estonian, German, French, Spanish, etc.
• At the AC station, the database consists of several thousand car models, so you will serve an extremely wide fleet of cars.
• At AC stations, customers can independently install the database of their desired cars.
• The lengths of HP and LP hoses are 3 meters each, so this station is extremely mobile and convenient to use.
• A simple but high-quality connection system guarantees safe work during processes such as freon extraction and recycling; vacuum/leak check; pressure testing.
• Conditioner filling station with an integrated printer so that you can print the results after completing the work.
• Grease Extraction: Automatic grease extraction, separation and cleaning of the entire system with simple extraction functions.

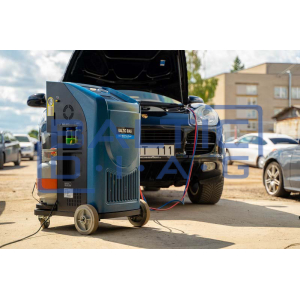

• The stand has two large wheels and two front smaller wheels that lock into place. This will give you mobility and comfort if you work on an uneven floor.
• Easily accessible vacuum pump for easy oil changes.
• Suitable for use not only for passenger cars, but also for heavy vehicles.

Features and Benefits:

• Works with two main refrigerants
• A refrigerant analyzer is installed

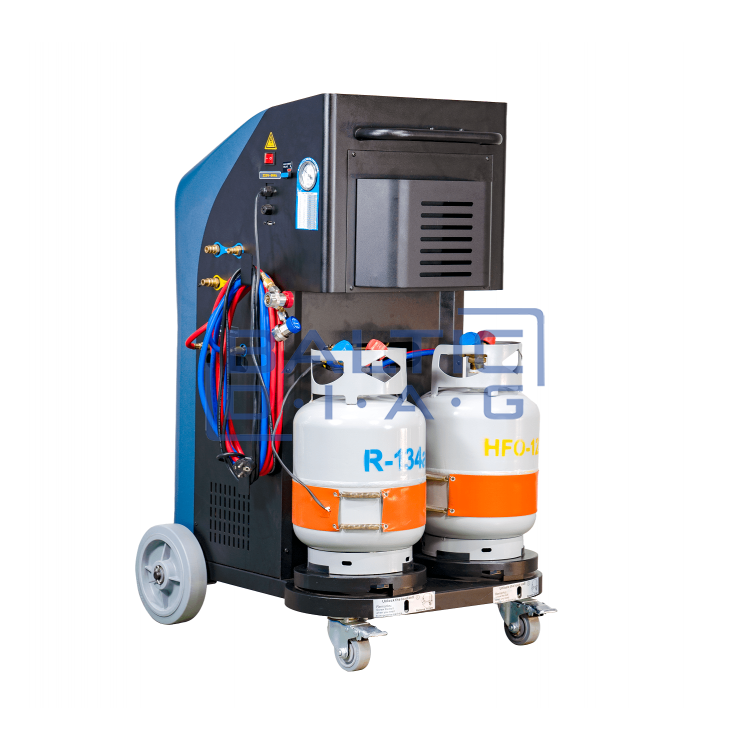

• Equipped with a double tank
• Working mode: automatic
• Refrigerant extraction: automatic
• Refrigerant filling: automatic
• Grease extraction: automatic
• Vacuuming: automatic
• Leak test: automatic
• Automatic service reminder: Yes
• UV Injection: Yes
• Vacuum Leakage Test: Yes
• Condenser and cooling fan: Yes
• Printer: Yes
• Support for hybrid A/C systems: None
• A/C Database Updates: Free

Technical data:

• Refrigerant type: R-134a and R-1234yf

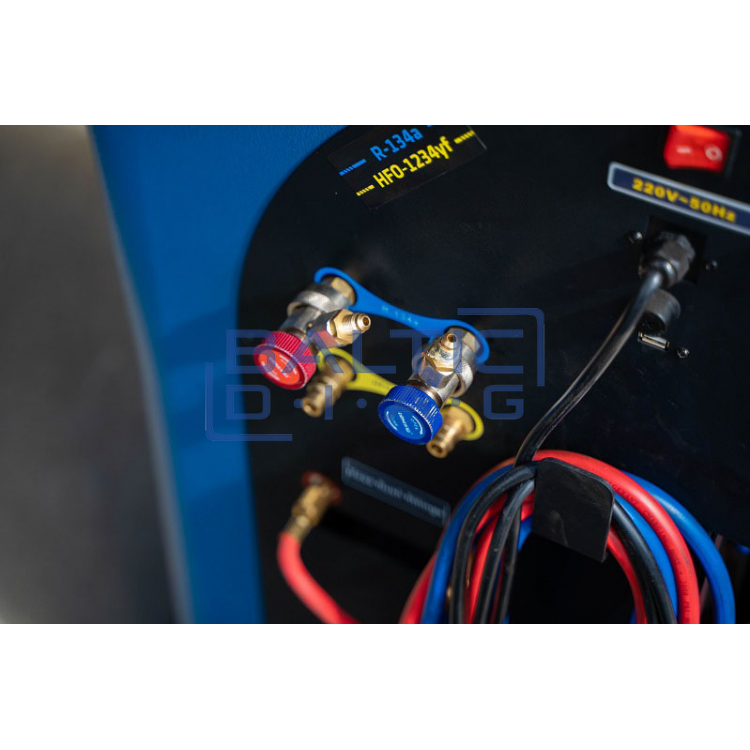

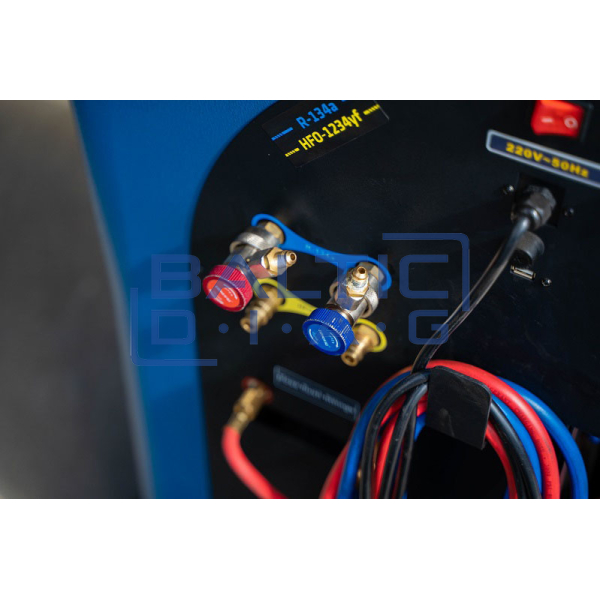

• Manual control valves: 2

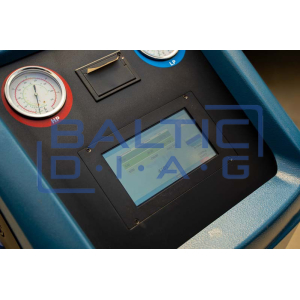

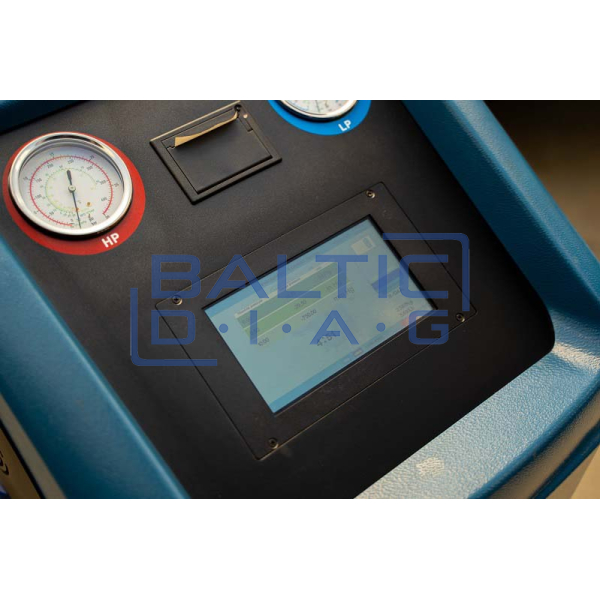

• Screen: 4.3" color LCD
• Refrigerant volume: 13.6 kg
• Accuracy: ± 10 g
• Refrigerant filling speed: 2000 g/min
• Recirculation speed: 250 g/min
• HP indicator range: -1~30 bar
• LP indicator range: -1~16 bar
• Recovery rate: ≥95%
• Compressor power: 3/8 hp
• Vacuum pump speed: 120 l/min

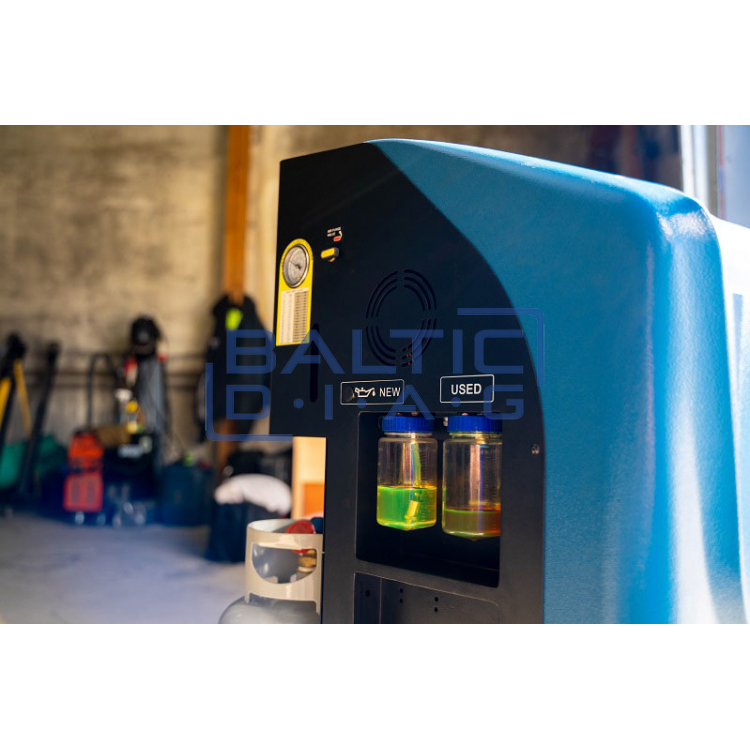

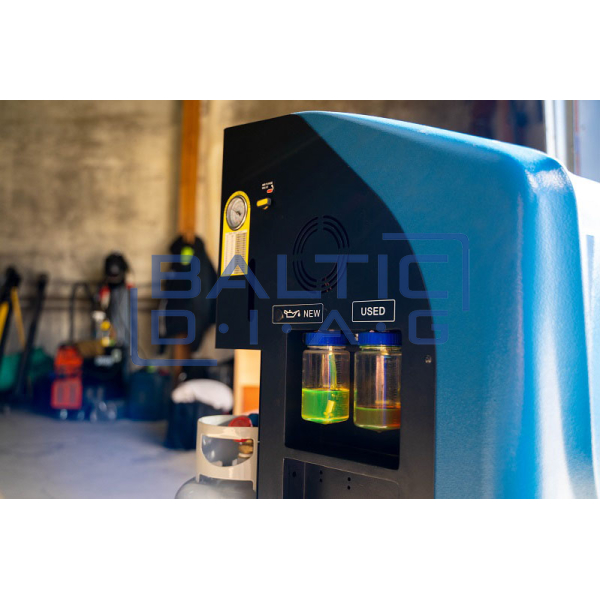

• New oil bottle capacity: 250ml
• Used oil bottle capacity: 400ml
• New/used oil/UV measurement accuracy: ±5 g
• Power supply: 220V 50/60Hz
• Power: 280W
• Max. pressure: 20 bar
• Dimensions: 650x760x1055mm

After purchasing the conditioner filling station and unpacking it, it is necessary to loosen the scale screw on the back side. Failure to remove this screw may damage the tank load cell.
