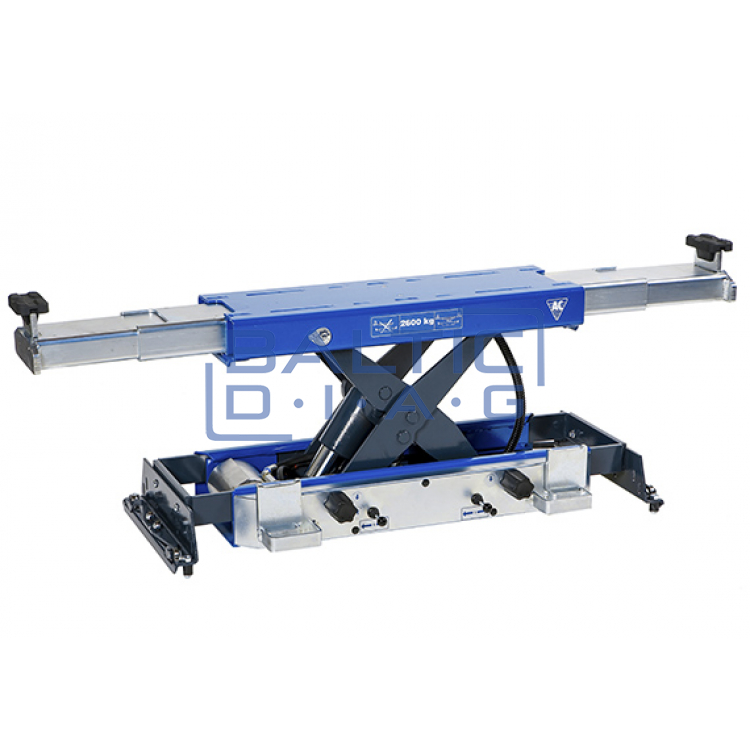

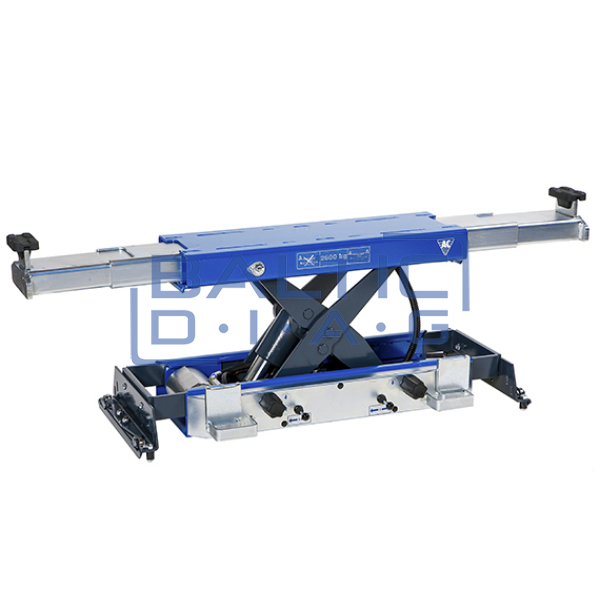

Automatic pneumatic-hydraulic axle lift SD20PHL-A

Automatic pneumatic-hydraulic axle lift SD20PHL-A

Automatic pneumatic-hydraulic axle lift SD20PHL-A

Automatic pneumatic-hydraulic axle lift SD20PHL-A

Automatic pneumatic-hydraulic axle lift SD20PHL-A

SKU: BD13301
SKU:: SD20PHL-A

4,485.00 €

Prices shown include tax

Send Message

Description

Automatic pneumatic-hydraulic axle lift SD20PHL-A

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Automatic pneumatic-hydraulic axle lift for inspection centers and workshops with many lifting operations

Description:

- Individual joysticks control lifting paws to save time-consuming work operations

- Remote-controlled lowering and lowering of the paws

- Installing the remote control under the truck control ensures safe operations and avoids unnecessary steps

- Unique height adjustable armrest system - Designed to fit all modern lifts and pits

- Supplied with 3 extension kits (10/40/85 mm) and rubber cushion for body protection

- Manufacturer: Denmark

- Warranty: 3 years

Specification:

- Lifting capacity: 2 tonnes

- Lifting stroke: 250 mm

- Minimum height: 200 mm

- Length of supports: 780 - 1500 mm

- Lift width: 780 - 1180 mm

- Construction height: 120 mm

- Construction depth: 250 mm

- Required compressed air pressure: 8.5 - 12 bar

- Required compressed air flow: 350 L / min

- Weight: 120 kg

Additional equipment:

- HSD-A: Pneumatic connection kit

- FSD1: 130 mm height extensions (Requires 2 pcs)

- FSD2: Rubber support 40 mm (Requires 2 pcs.)

- FSD3: Rubber support 80 mm (Requires 2 pcs.)

- FSD5: Saddle with thread (106 - 240 mm) (Requires 2 pcs)

- GS2: 10mm Rubber Pad (Requires 2pcs)
