Description

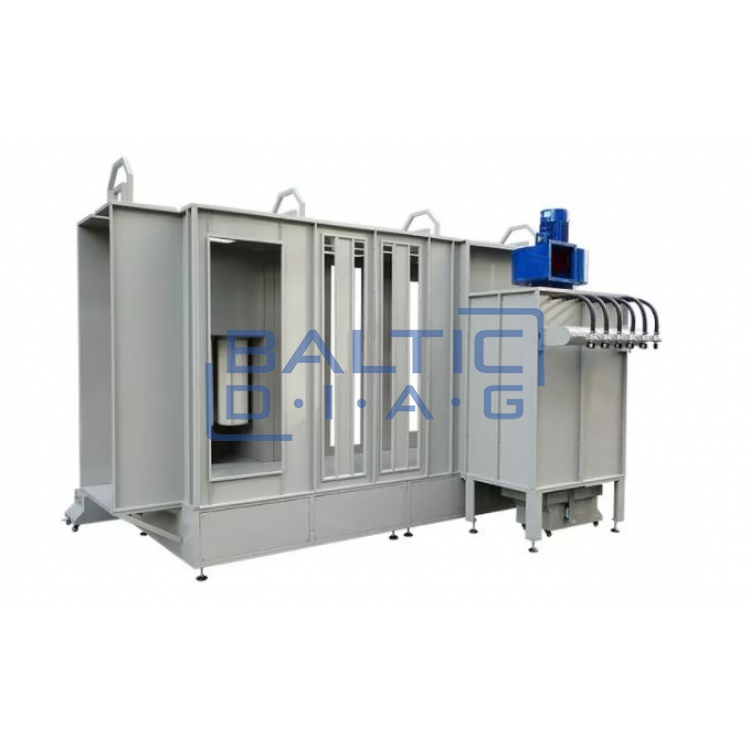

Automatic single color powder coating booth
- The double filter stage is directly connected to the cab wall, and the automatic floor cleaning minimizes dust accumulation.
- An automatic powder cabinet increases the speed of powder processing and creates a cleaner working environment.
Powder coating spray booth features
- Dual filter stage recovery systems efficiently collect sprayed powder, 0.1 micron high-precision filters ensure that only particle-free air is released outside.
- Pulse-jet automatic filter cleaning technology takes full advantage of the powder and extends the life of the filters.
- The recovery hopper downstream of the filter stage can be taken for manual collection or connected to an automatic powder recycling system.
- All functions and parameters, such as fan start, filter cleaning, cab cleaning, can be flexibly controlled on the PLC panel.
Technical data:
- Power supply: 220 V / 380 V, 3-phase, 50-60 Hz
- Fan power: 5.5 kW, 2 sets
- Number of filters: 12 pcs. (2 steps), quick release type
- Filter material: polyester
- Filter cleaning: pneumatic
- Working dimensions: Width 800 mm, Height: 2000 mm, Depth: 4000 mm
- General dimensions: Width 1200 mm, Height 2580 mm, Depth 5000 mm
