Band metal cutting machine Holzmann BS210TOP 400V
Band metal cutting machine Holzmann BS210TOP 400V
Band metal cutting machine Holzmann BS210TOP 400V
Band metal cutting machine Holzmann BS210TOP 400V

Band metal cutting machine Holzmann BS210TOP 400V

  • SKU: BD96802
2,238.50 €

Prices shown include tax

Send Message

Description

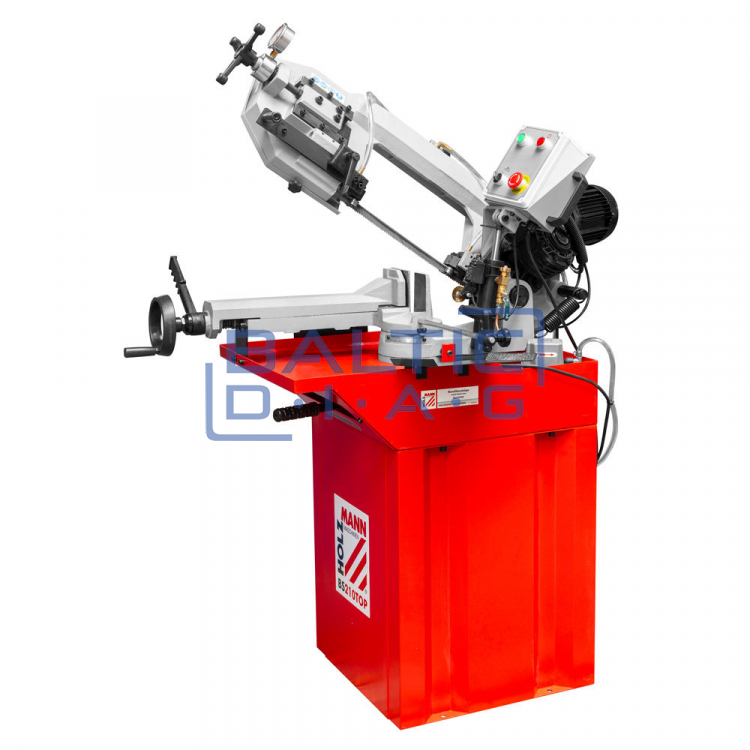

Band metal cutting machine Holzmann BS210TOP 400V

Manufacturer: Holzmann (Austria)

Features:

The sturdy machine is made of cast iron

Powerful 2-stage drive (motor ensures constant cutting performance)

The saw frame rotates up to 60°, so diagonal cuts can be made

A pressure gauge allows you to precisely adjust the tension of the blade

Fully adjustable saw frame down feed via hydraulic cylinder valve

Adjustable 5-point ball bearing blade guide for maximum cutting accuracy, automatic back stop

Complete set: saw blade, stand, workpiece limiter, automatic shut-off device, coolant device, pressure gauge

Technical data:

Motor power s1: 750/950V

Voltage: 400V / 50Hz

Table rotation range: -45°

Cutting efficiency round metal Ø 45°: 140 mm

Cutting efficiency round metal Ø 60°: 70 mm

Cutting efficiency round metal Ø 90°: 170 mm

Cutting efficiency square metal 45°: 140 x 170 mm

Cutting efficiency square metal 60°: 80 x 60 mm

Cutting efficiency square metal 90°: 180 x 170 mm

Saw blade: 2110 x 20 mm

Flywheel diameter: 260 mm

Saw blade speed: 65 m/min

Weight: 145 kg

Total weight: 173 kg

Package dimensions: 560 x 1150 x 930 mm
