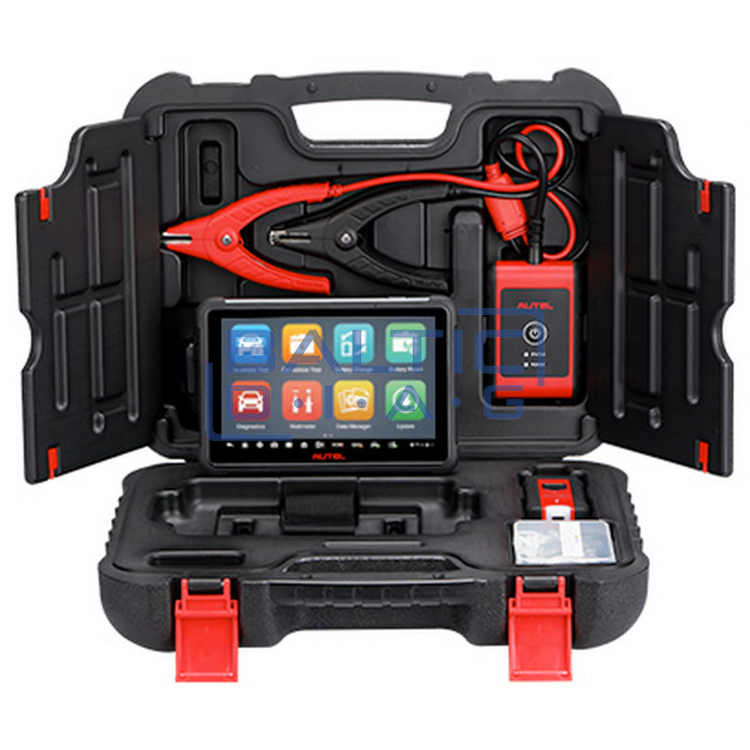

Battery diagnostic device Autel MaxiBAS BT609

Battery diagnostic device Autel MaxiBAS BT609

The MaxiBAS BT609 Wireless Battery and Diagnostic System uses Adaptive Conductance, an advanced battery analysis method that allows more accurate analysis of battery capacity and reserve capacity, which is critical to determining the true state of a battery. The 7-inch Android touchscreen tablet can quickly show the health of an existing battery, register a new battery, and perform advanced battery and electrical system diagnostics. The BT609's features include AutoVIN, which allows you to instantly identify vehicle and battery information and display graphical instructions for locating and testing the battery. Has a "service" menu. Read / delete codes in all available vehicle systems and perform routine maintenance. Print or share reports over Wi-Fi.

Testing of passenger car batteries in and out of the vehicle

Test 6 and 12 volt batteries: 100 - 3000 CCA

Test the 12 and 24 volt rotation / charging systems

Test flooded, AGM, AGM Spiral, EFB and GEL batteries

Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

Quick display of battery specifications by scanning a battery barcode with automatic and manual VIN entry

Instructions for illustrating and testing the battery position

Read and delete codes and view live data for all available systems

Operating system Android 9.0

Memory 2GB RAM & 64GB Internal

Screen 7.0 Inch 1280 x 800 TFT-LCD

Communications

Wi-Fi (IEEE 802.11 a / b / g / n / ac 1x1)

BT 5.0 + EDR + BLE

USB 2.0 (1 USB HOST + 1 USB OTG)

Micro SD Card (support up to 128GB)

Camera 8 Megapixels

Sensors Light sensor (ALS)

Sound Microphone

Connections Speaker

Charging and battery

5800 mAh 3.85 V lithium-polymer battery

Charging with 5 V 2A AC / DC power supply, temperature between 0 ° C and 45 ° C

Operating temperature 0 to 50 ° C (32 to 122 ° F)

Storage temperature -10 to 60 ° C (14 to 140 ° F)

Size 197 mm (7.75 ") x 135 mm (5.31") x 14 mm (0.55 ")

Weight 445 g (0.98 lb.)
