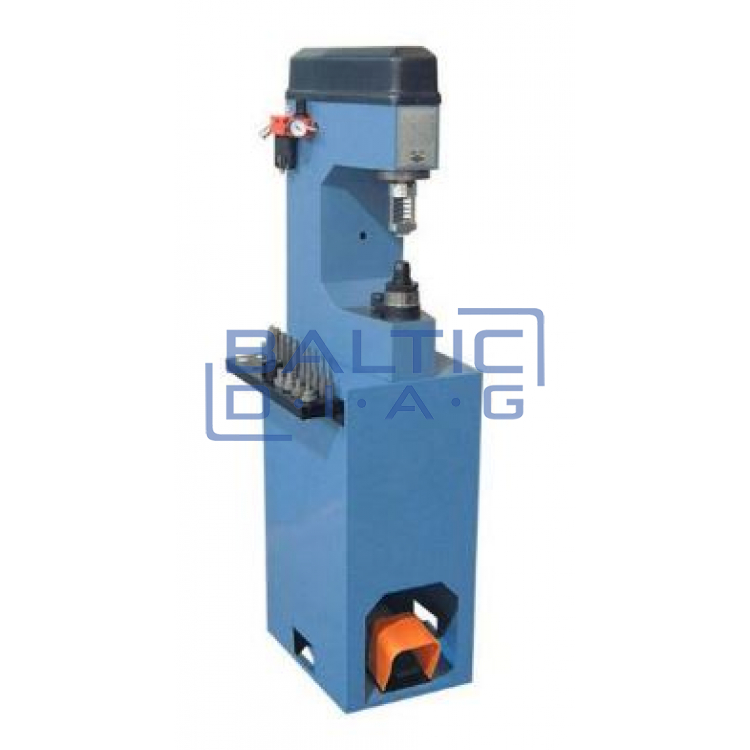

Comec CC300 pneumatic brake riveting machine

Comec CC300 pneumatic brake riveting machine

Brand Italy, Warranty 2 years

Description:

The CC300 hydro-pneumatic riveting machine is used for riveting and riveting brake linings for all types of brake pads. The ribbed steel structure gives the machine high strength and durability. The combined hydraulic and pneumatic starting system ensures high performance with a small amount of compressed air, which is cleaned by a filter with a pressure regulator and a simple manometer.

Standard equipment:

- Oil / air double cylinder system

- Air supply regulator with lubricator and pressure gauge

- Work pedal

- locker

- Nozzles 4.5-5.5-6.5-7.5-8.5 mm in diameter

- 4.5 mm diameter conical tip

- 5.5 mm diameter conical tip

- 7.0 mm diameter conical tip

- 8.5 mm diameter conical tip

- 5.5 mm diameter conical nozzle

- pick - shaped tip

- 7/8 mm diameter double return nozzle

- 10/13 mm diameter double return nozzle

- 11.5 mm diameter return nozzle

- 16 mm diameter return nozzle

- 16x38 mm cylindrical anvil

- Wrench set

- Instructions

Specification:

- Diameter of rivets: 3 ÷ 12 mm

- Working pressure: 6 ÷ 8 bar

- Maximum impact force: 5200 kg

- Maximum stroke: 40 mm

- Dimensions: 350x490x1520 mm

- Weight: 134 kg
