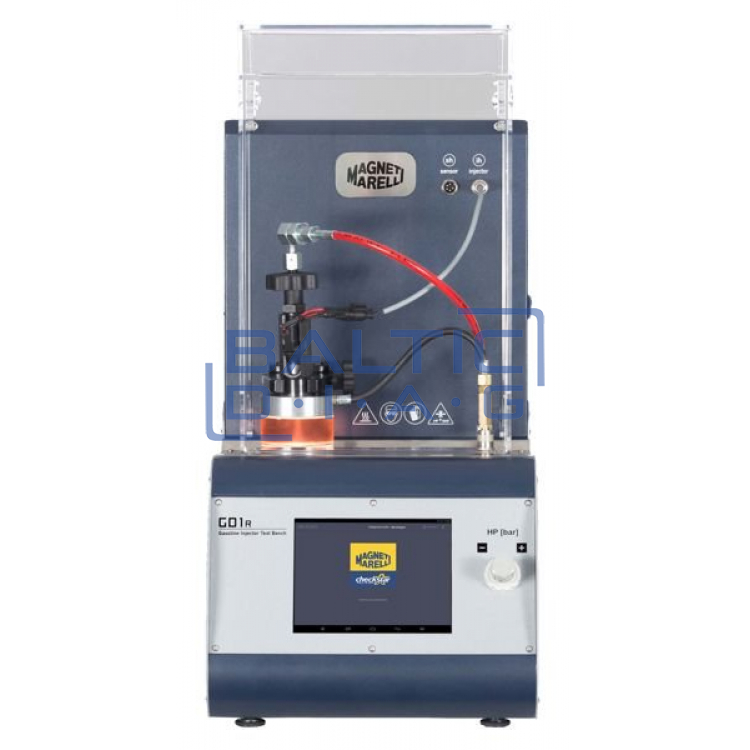

Compact GDI nozzle tester Magneti Marelli

Compact GDI nozzle tester Magneti Marelli

Manufacturer: Magneti Marelli (Poland), warranty: 24 months.

Modern direct petrol injection systems (G-DI, FSI, HPI, JTS) require high operating pressure equipment to properly inspect the injectors used in these systems. Magneti Marelli offers devices for testing and cleaning such nozzles.

Device characteristics:

Test all types of electromagnetic and piezo nozzles (0-300 V / 0-35A)

Operation of 1 or 4 nozzles (GDU4R)

Operating pressure up to 300 or 550 bar

Electronic measuring system

Dynamic mass measurement for GDU * R series (accuracy: 0.2%, repeatability: 0.05%)

GD1R series static mass measurement (resolution: 0.1 mm3, accuracy: 0.6%)

Protect the control board from damage

Unique PIEZO chimney regeneration function

Nozzle Internal Cleaning - MACC (versions * / F)

Free database update

Automatic operation (GD1R-E / 30 manual pressure regulator only)

Test time: 5-15 minutes (GDU2R / GDU4R) and 7-8 minutes (GD1R)

Integrated 10 "(8" GD1R) tablet with Android.

Test results with printability are clearly presented

Adapter available for powering all types of nozzles

Tests performed:

R2LC

Electrical tests: kΩ / μF; Ω / mH

CFL

Leak detection (inside or outside the nozzle)

NLT

Nozzle leak test at high pressure

iVM (FL, PL, EM, LL, PI)

Nozzle volume test (full load, partial load, exhaust, low load, pre - injection / post - injection, etc.)

RSP

Nozzle Response Time Test.

SPR

A dynamic spray test was performed under all test conditions.
