Compact hand powder coating line COLO L M01

Compact hand powder coating line COLO L M01

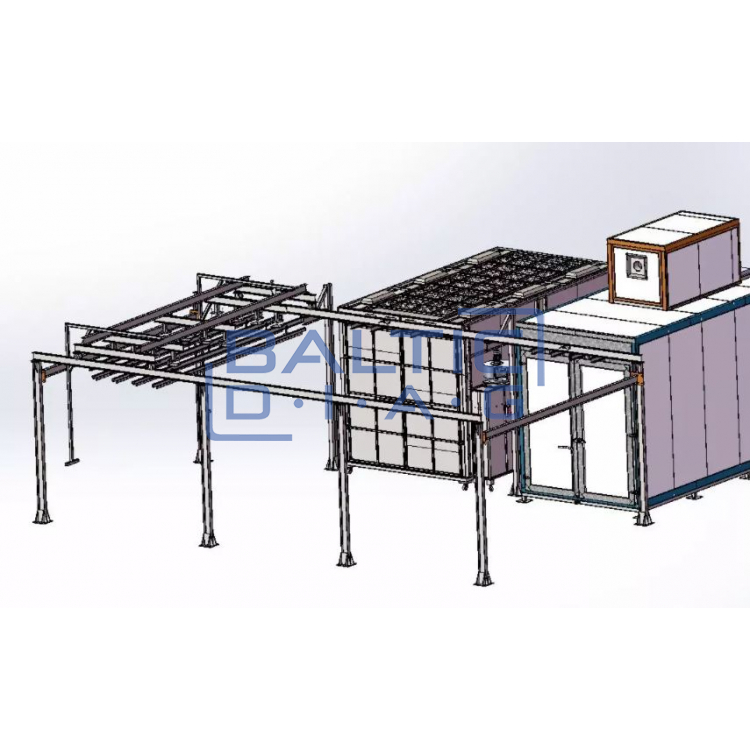

This line includes a set of manual powder coating equipment, a powder booth with a filter, a gas curing oven and a top, a rail system.

Powder spray gun COLO 191S

• The full digital interface makes it easy to set parameters for precise coating work.
• The use of advanced DVC technology provides excellent work for even the most complex parts or complex powders.
• Box delivery type directly conveyor powder from the original box, suitable for color changes.
• The flexible wheelchair can be moved anywhere without restrictions.

Powder coating booth

• Powder spraying work is carried out in a closed booth equipped with a safe and clean workshop.
• Built-in 12 pcs. filters integrated in the cab wall to collect and extract the powder.
• Designed with automatic filter cleaning using pulse current, the filter life is extended.
• The parts are transported by the upper conveyor system with less manual effort.

Technical data:

• Material: SPCC / t = 1.5 mm, with door
• Bottom frame: 8 # square tube
• Cab Inner Frame: 8 # square tube
• Recovery system filter cartridge: 12 pcs.
• Fan motor: 3 kw, 4 sets
• Air flow: 4050 m ^ 3 / h
• Internal size: L5.5 mm x W2.8 mm x H3.1 mm
• Opening size 2.8m x 2.9m

Powder coating furnace

• The gas-fired powder coating furnace is economical and environmentally friendly.
• 100 mm stone wool insulation is inserted between the galvanized inner wall and the colored steel outer fur, effectively reducing the temperature drop.
• The circulation fan heats the hot air evenly and maintains a uniform temperature in the chamber.
• The powder coating oven is easy to operate thanks to the PLC control unit with precise temperature control and timer.

Technical data:

• Working dimension: width: 2.5 m, height 3.1 m, depth 5.6 m
• Insulation board t: 100 mm
• Edging SGCC / t = 1.5 mm
• Bottom frame: 8 # square tube
• Inner frame: 8 # square tube
• Gas burner: 300,000 cal / h, RIELLO brand
• Fan motor: 11 kw, 1 set
• Air flow: 12000-14000 m ^ 3 / h
