Diagnostic device for electric cars AUTEL MaxiSys MS909EV

Diagnostic device for electric cars AUTEL MaxiSys MS909EV

Manufacturer: AUTEL (Italy), warranty - 2 years

Why you should buy AUTEL equipment from us:

• We are the ONLY official representatives of AUTEL diagnostics in Lithuania.
• Only the ORIGINAL devices we sell have Russian and English languages at the same time.
• Only original diagnostic equipment sold by us has the most extensive DATA BASE.
• Only the SOFTWARE of the original diagnostic devices we sell is adapted for the European region.
• Our customers receive full WARRANTY and POST-GUARANTEE service of the highest level.
• In case of device failure, our customers are PROVIDED with replacement devices if the repair takes longer than expected.
• The FASTEST delivery of original AUTEL diagnostic devices in Lithuania, we store MORE THAN 95% of the goods in Lithuania.
• Before buying, WE LET you TRY the original AUTEL device.

The device of the latest series of the manufacturer AUTEL, which has been expanded to perform additional diagnostics of electric car batteries. This device has all the usual features of the AUTEL MaxiSys MS909 and works perfectly with US, European and Asian electric, gas and diesel and hybrid vehicles.

• Fast analysis of EV battery high-voltage system, ability to read and delete error codes and view live data;
• Detailed diagrams of the high voltage system unit, components and sockets
• Step-by-step installation/disassembly instructions for the system
• Battery charge and condition analysis to determine the actual condition of the battery
• Battery analysis can be done via OBD or directly with the included special cables and adapters
• Detailed graphics and step-by-step instructions are displayed on the screen for safe testing
• Automatic system and software updates with push notifications
• Interactive data registration sessions allow you to directly contact AUTEL consultants, so that you can directly provide the highest quality services to your customers with their help.
• One-stop multi-tasking, designed for ideal garage operations management to manage all data files, customer information and vehicle records
• Cloud-based data manager stores customer and vehicle records, scanner data and technician notes for a specific vehicle (by VIN)

Autel MaxiSys MS909 other features:

• This instrument series is so updated that Autel updates provide the latest OE-level coverage for over 80 US domestic, Asian and European vehicles, including even supercars.
• Exclusive OE-level functionality from comprehensive OBDII diagnostics and services to advanced ECU coding and programming.
• Automatic system and software updates with real-time notifications via internet connection.
• Interactive data logging sessions allow you to contact Autel support directly to troubleshoot diagnostic errors and other issues the first time.
• A one-stop-shop for the ideal management of auto repair shop and auto electrician operations so that all data files, customer information and vehicle records can be managed and worked on conveniently.
• All customer car data is stored in the cloud, including vehicle records, scanner data and technician notes.
• Video library for troubleshooting and direct links to fix problems.
• ADAS calibration software available (optional).

Technical data:

• Operating system: Android 10.0
• Processor: Octa-core Qualcomm 660 processor (2.2GHz quad-core A73 + 1.8GHz quad-core A53)
• Memory: 4 GB RAM and 128 GB internal memory
• Screen: 9.7" TFT-LCD / touch screen
• Screen dimensions: 1536 x 2048
• Connections: Wi-Fi / Bluetooth / GPS / USB 2.0 / HDMI 2.0 / SD card (up to 256 GB supported)
• Rear camera: 16 megapixels, automatic focus, flashlight
• Front camera: 16 megapixels
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone (dual speakers)
• Power and Battery: 15,000mAH 3.8V Li-Polymer battery
• Input voltage: 12V/1.3A (adapter added)
• Operating temperature: from 0 to 50 °C
• Storage temperature: from -20 to 60°C
• Dimensions: 304.4 x 227.8 x 42.5 mm
• Weight 1.66 kg
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP1 ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

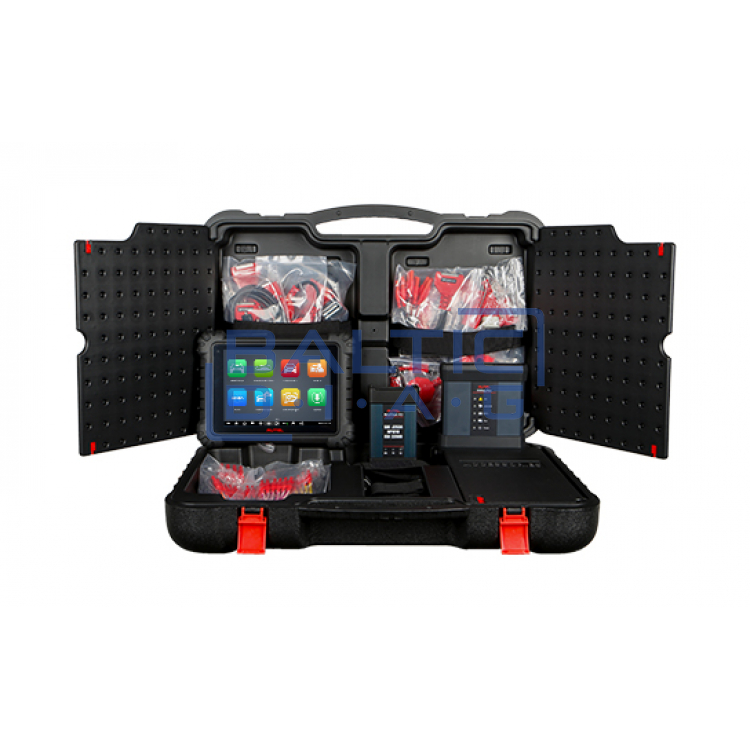

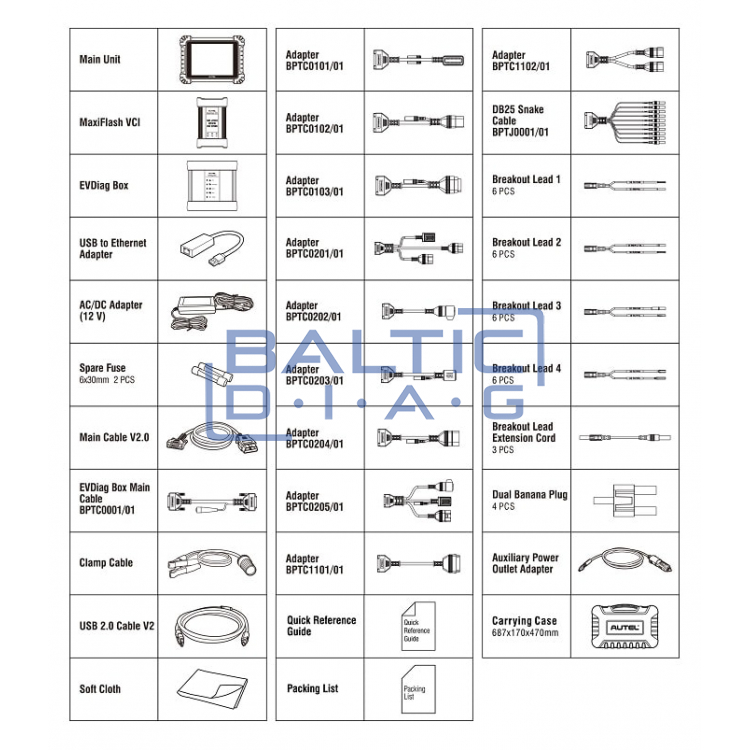

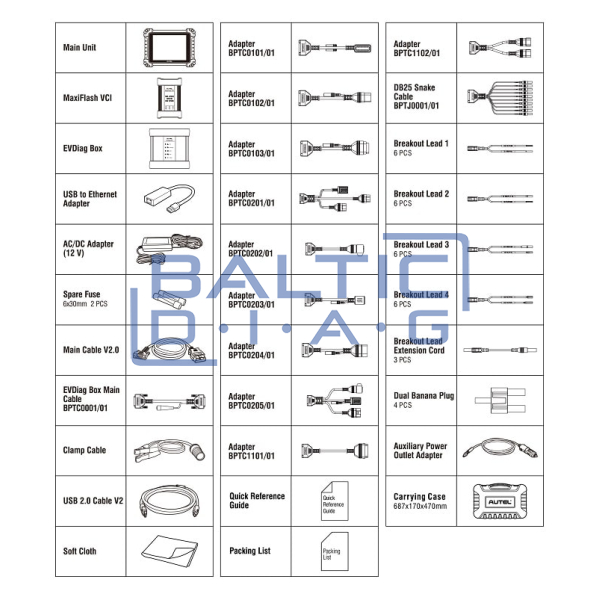

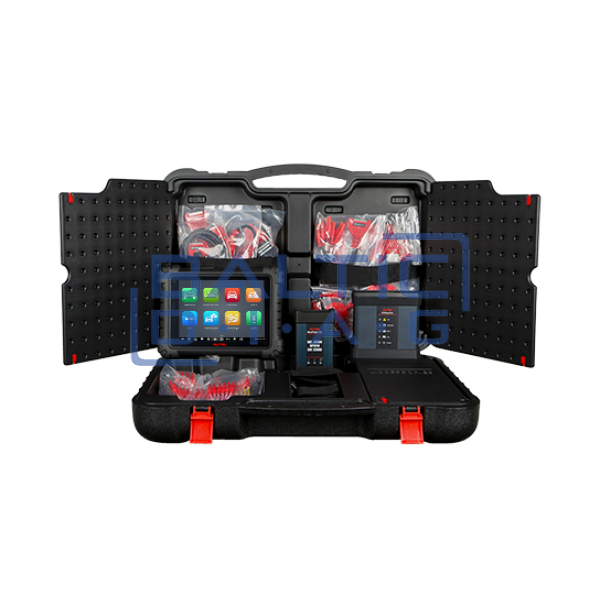

Complete set:

• AUTEL MaxiSys MS909EV device
• MaxiFlash VCI
• EVDiag Box
• USB adapter
• AC/DC adapter 12V
• 2 pcs. spare fuses
• Main OBD cable
• Main EVDiag Box cable
• Terminals for the battery
• USB 2.0 V2 cable
• Screen wipes
• Adapter BPTC0101/01
• Adapter BPTC0102/01
• Adapter BPTC0103/01
• Adapter BPTC0102/01
• Adapter BPTC0201/01
• Adapter BPTC0202/01
• Adapter BPTC0203/01
• Adapter BPTC0204/01
• Adapter BPTC0205/01
• Adapter BPTC1101/01
• Adapter BPTC1102/01
• DB25 BPTJ0001/01 cable
• 6 pcs. Lead 1 connector
• 6 pcs. Lead 2 connector
• 6 pcs. Lead 3 connector
• 6 pcs. Lead 4 connector
• 4 pcs. double plugs
• User manual
• Kit list sheet
• Car plug adapter
• Suitcase
