Diagnostic device for electric cars AUTEL MaxiSys Ultra EV

Diagnostic device for electric cars AUTEL MaxiSys Ultra EV

Manufacturer: AUTEL (Italy), warranty - 2 years

Why you should buy AUTEL equipment from us:

• We are the ONLY official representatives of AUTEL diagnostics in Lithuania.
• Only the ORIGINAL devices we sell have Russian and English languages at the same time.
• Only original diagnostic equipment sold by us has the most extensive DATA BASE.
• Only the SOFTWARE of the original diagnostic devices we sell is adapted for the European region.
• Our customers receive full WARRANTY and POST-GUARANTEE service of the highest level.
• In case of device failure, our customers are PROVIDED with replacement devices if the repair takes longer than expected.
• The FASTEST delivery of original AUTEL diagnostic devices in Lithuania, we store MORE THAN 95% of the goods in Lithuania.
• Before buying, WE LET you TRY the original AUTEL device.

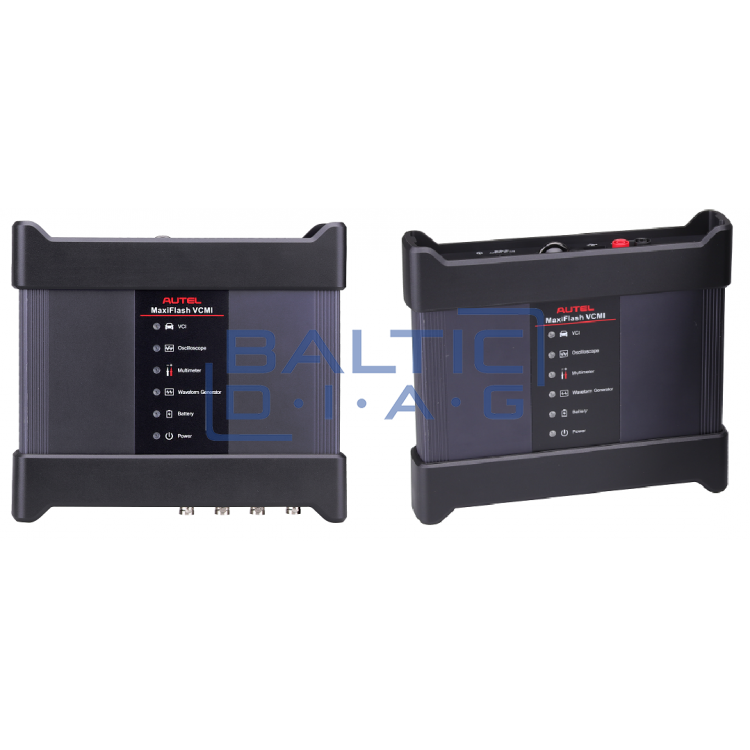

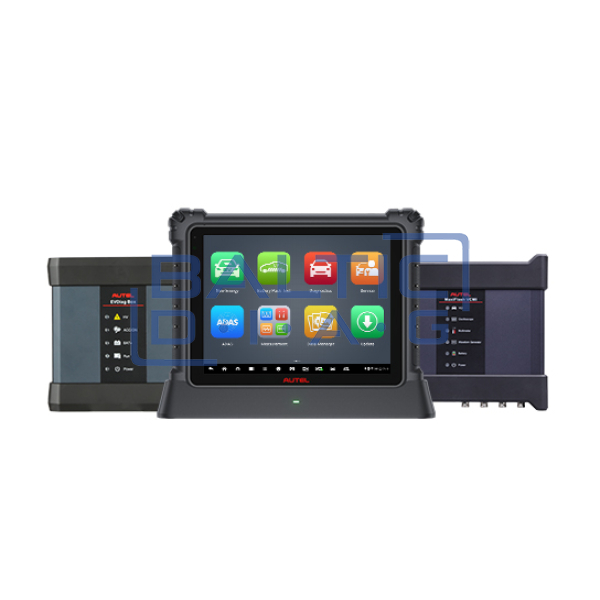

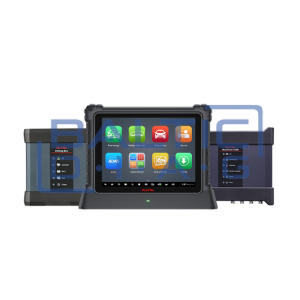

AUTEL MaxiSys Ultra EV is a new generation smart diagnostic device for electric, hybrid, gas and diesel vehicles. Ultra EV provides comprehensive battery analysis for electric and hybrid vehicles with advanced topology mapping and battery health data. The device works via OBD or directly using special cables and jumpers. The Autel Ultra EV screen displays the most detailed graphs and step-by-step sequences to safely test your EV battery. 12.9 inch Ultra EV touch screen, MaxiFlash VCMI block, available Bluetooth connection and J2534 protocol and special EVDiag block - AUTEL MaxiSys ULTRA is several steps ahead of all its competitors.

• For US, European and Asian electric, gas and diesel and hybrid vehicles
• Fast analysis of EV battery high-voltage system, ability to read and delete error codes and view live data;
• Detailed diagrams of the high voltage system unit, components and sockets
• Step-by-step installation/disassembly instructions for the system
• Battery charge and condition analysis to determine the actual condition of the battery
• Battery analysis can be done via OBD or directly with the included special cables and adapters
• Detailed graphics and step-by-step instructions are displayed on the screen for safe testing
• Automatic system and software updates with push notifications
• Interactive data registration sessions allow you to directly contact AUTEL consultants, so that you can directly provide the highest quality services to your customers with their help.
• One-stop multi-tasking, designed for ideal garage operations management to manage all data files, customer information and vehicle records
• Cloud-based data manager stores customer and vehicle records, scanner data and technician notes for a specific vehicle (by VIN)

Main features of Autel MaxiSys ULTRA:

• This instrument series is so updated that Autel updates provide the latest OE-level coverage for over 80 US domestic, Asian and European vehicles, including even supercars.
• Exclusive OE-level functionality from comprehensive OBDII diagnostics and services to advanced ECU coding and programming.
• Automatic system and software updates with real-time notifications via internet connection.
• Interactive data logging sessions allow you to contact Autel support directly to troubleshoot diagnostic errors and other issues the first time.
• A one-stop-shop for the ideal management of auto repair shop and auto electrician operations so that all data files, customer information and vehicle records can be managed and worked on conveniently.
• All customer car data is stored in the cloud, including vehicle records, scanner data and technician notes.
• Video library for troubleshooting and direct links to fix problems.
• ADAS calibration software available (optional).

Technical data:

• Operating system: Android 7.0
• Processor: Samsung Exynos 8895V octa-core processor (2.3GHz quad-core Mongoose + 1.7GHz quad-core A53)
• Memory: 4GB RAM with 256GB internal memory
• Screen: 12.9-inch TFT-LCD with 2732 x 2048 resolution and touch screen
• Communication interfaces: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO); BT v.2.1 + EDR; GPS; USB 2.0 (two type A USB HOST, one USB mini); HDMI 2.0; SD card (supports up to 256 GB)
• Rear camera: rear 16 megapixel, autofocus with flashlight
• Front camera: 5.0 megapixels
• Tablet sensors: gravity accelerometer, ambient light sensor (ALS)
• Audio Input/Output: Microphone, Dual Speakers, 3-Way 3.5mm Stereo/Standard Headphone Jack
• Power and battery: 18000mAh 3.8V lithium polymer battery, charged via 12V AC/DC power source
• Input voltage: 12V / 3A adapter
• Operating temperature: from 0 to 50°C
• Storage temperature: from -20 to 60°C
• Body: Rubberized outer protection and solid inner body
• Dimensions: 366.5mm x 280.9mm x 34mm
• Weight: 2.18 kg
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16 , ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

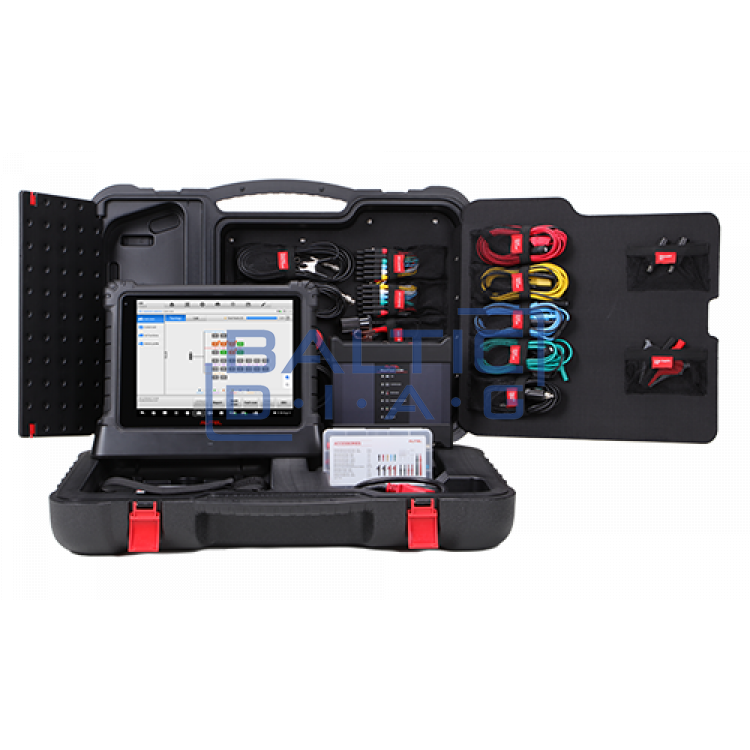

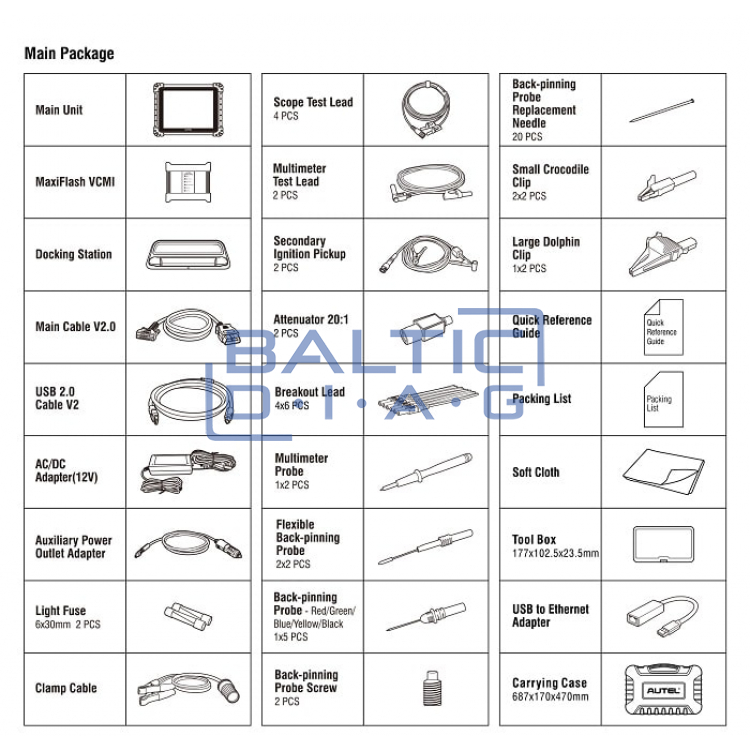

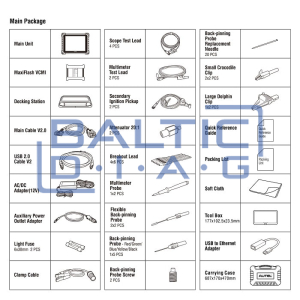

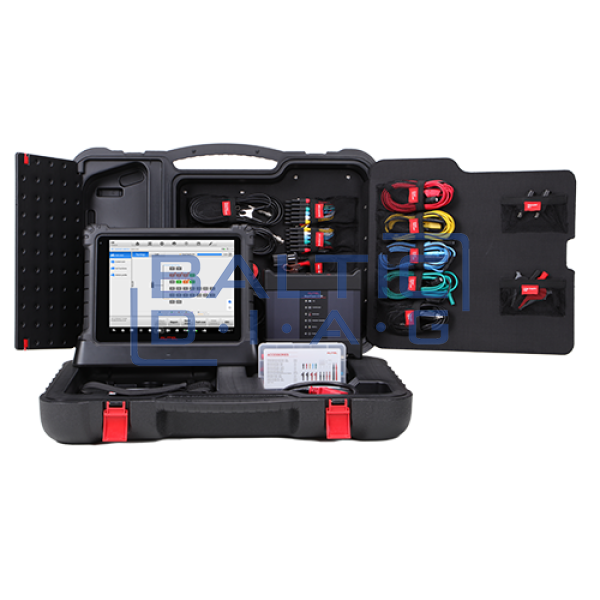

Autel MaxiSys Ultra package:

• Tablet PCs
• Loading station
• Basic OBDII Cable V2.0
• AC/DC adapter 12V
• USB 2.0 Cable V2
• Car charging cable
• 2 pcs. fuses 6x30 mm
• 4 pcs. oscilloscope test leads
• 2 pcs. multimeter test leads
• 2 pcs. secondary ignition wires
• 2 pcs. suppressors 20:1
• 4x6 pcs. probes
• 1x2 pcs. multimeter probes
• 2x2 pcs. flexible probes with connections
• 1x5 pcs. reverse mounting probes (red/green/blue/yellow/black)
• 2 pcs. screw-on reverse probe mounts
• 20 pcs. flexible needles
• 2x2 pcs. small terminals
• 1x2 pcs. large terminals
• User Guide
• Complete list
• Tablet screen cleaning cloth
• Tool Boxes
• Suitcase

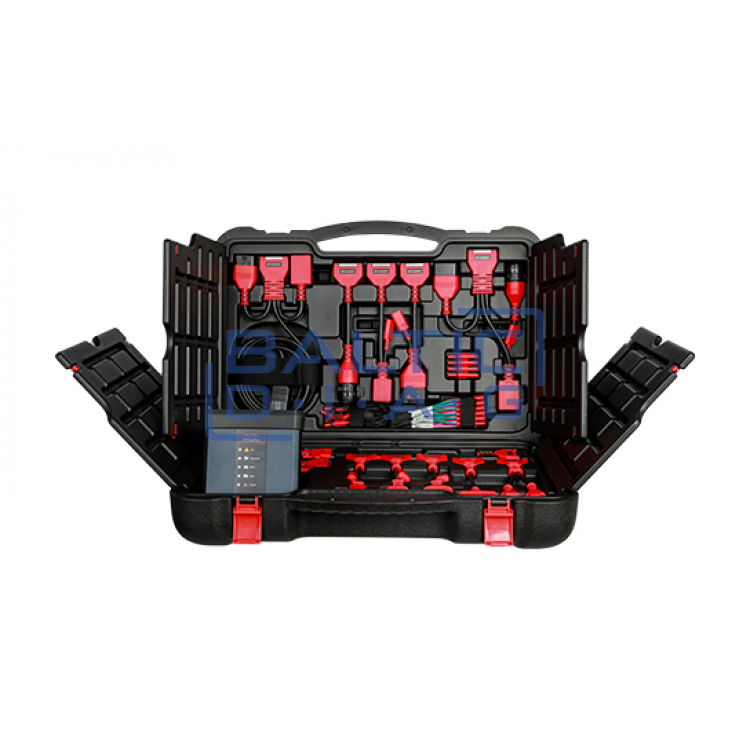

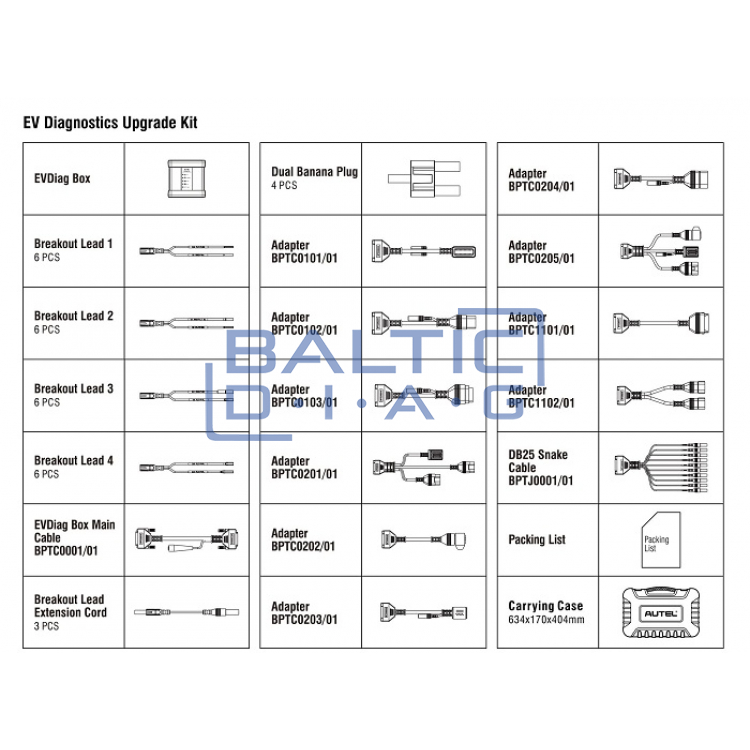

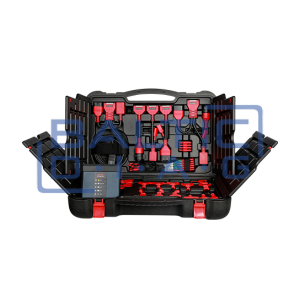

Additional EVDiag equipment:

• EVDiag Box
• USB adapter
• AC/DC adapter 12V
• 2 pcs. spare fuses
• Main OBD cable
• EVDiag Box main cable
• Terminals for the battery
• USB 2.0 V2 cable
• Screen wipes
• Adapter BPTC0101/01
• Adapter BPTC0102/01
• Adapter BPTC0103/01
• Adapter BPTC0102/01
• Adapter BPTC0201/01
• Adapter BPTC0202/01
• Adapter BPTC0203/01
• Adapter BPTC0204/01
• Adapter BPTC0205/01
• Adapter BPTC1101/01
• Adapter BPTC1102/01
• DB25 BPTJ0001/01 cable
• 6 pcs. Lead 1 connector
• 6 pcs. Lead 2 connector
• 6 pcs. Lead 3 connector
• 6 pcs. Lead 4 connector
• 4 pcs. double plugs
• User manual
• Kit list sheet
• Car plug adapter
• Suitcase
