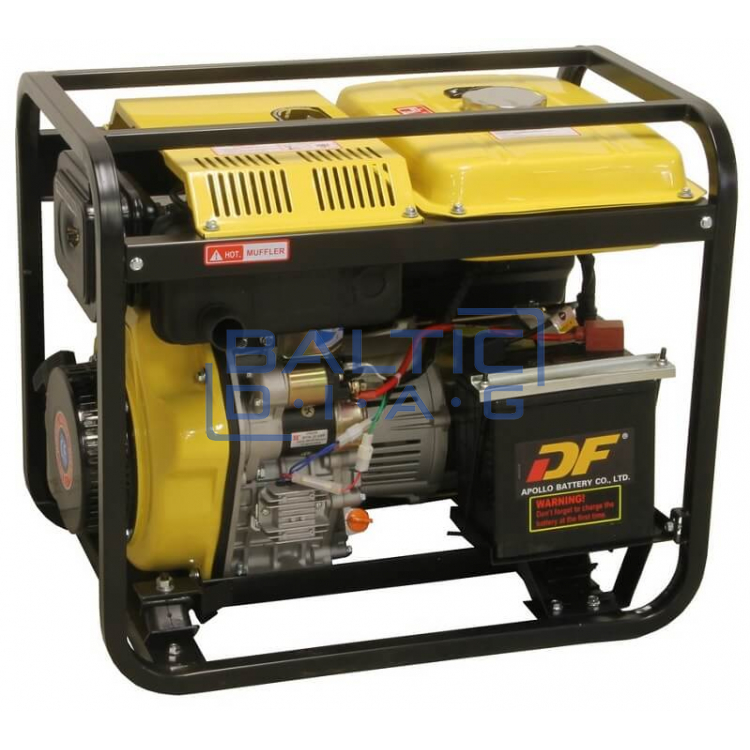

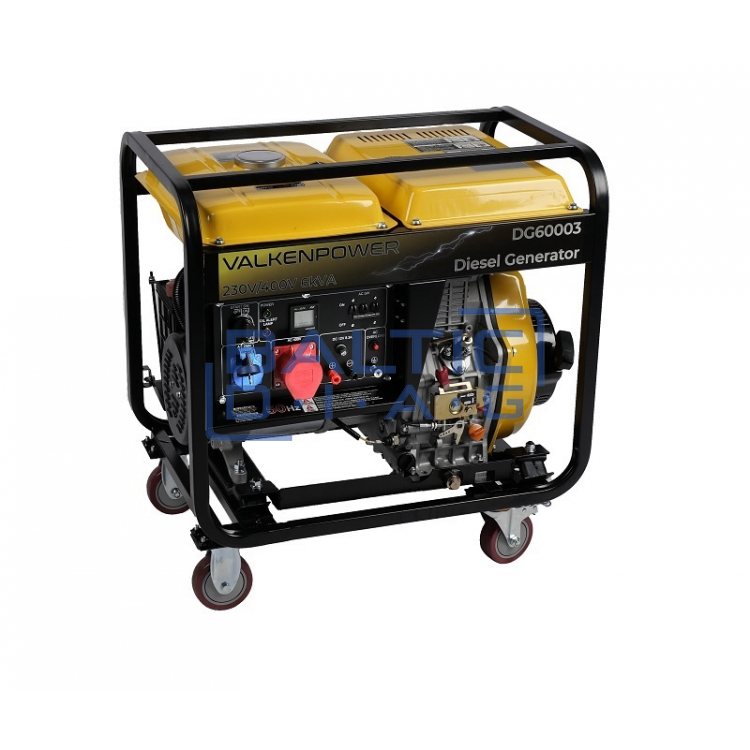

Diesel electric generator 230V / 400V, 4,6 kW

Diesel electric generator 230V / 400V, 4,6 kW

Manufacturer: Valkenpower, Holland

This diesel generator is equipped with protection against extremely low oil level, which protects the internal combustion engine from unwanted damage. If the oil level reaches a critical limit, it is simply stopped, and a red warning light starts flashing on the control panel.

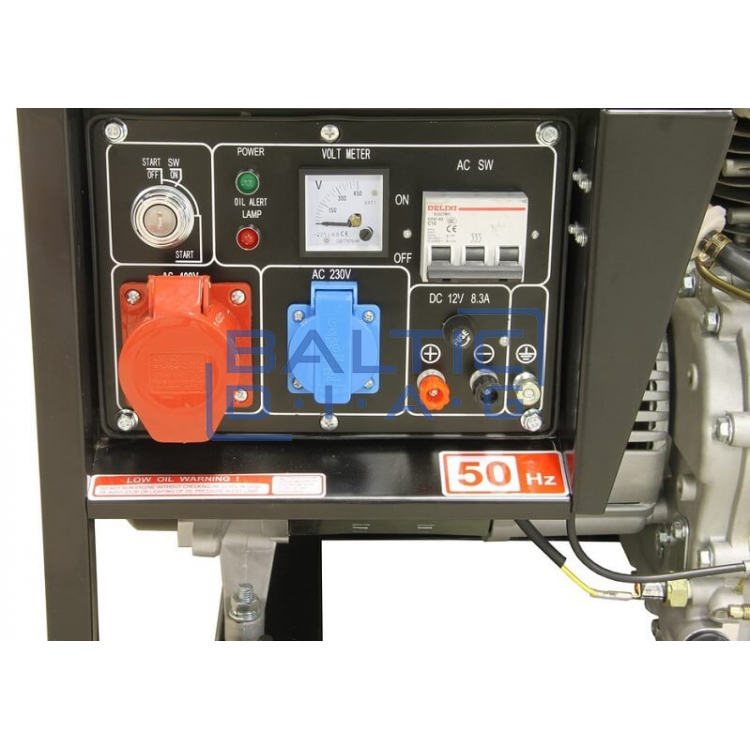

Standard features:

• Voltmeter
• Low oil level warning light
• Low oil warning system
• Electric starter

Technical parameters:

• Generated electricity voltage: 230 – 400 V
• Maximum power output (400 V): 5 kW
• Rated power output (400 V): 4.6 kW
• Nominal electrical current output (400 V): 7.2 A (per phase)
• Maximum power output (230 V): 4 kW
• Nominal power output (230 V): 3.6 kW
• Nominal electrical current output (230 V): 14 A
• DC voltage output: 12 V / 8.3 A
• Frequency: 50 Hz
• Number of revolutions of the internal combustion engine: 3000 rpm
• Cylinder capacity: 418 cm3
• Isonorm: 9001
• Noise level: 85 dB
• Generator dimensions: 700 x 485 x 615 mm (L x W x H)
• Generator weight: 120 kg
