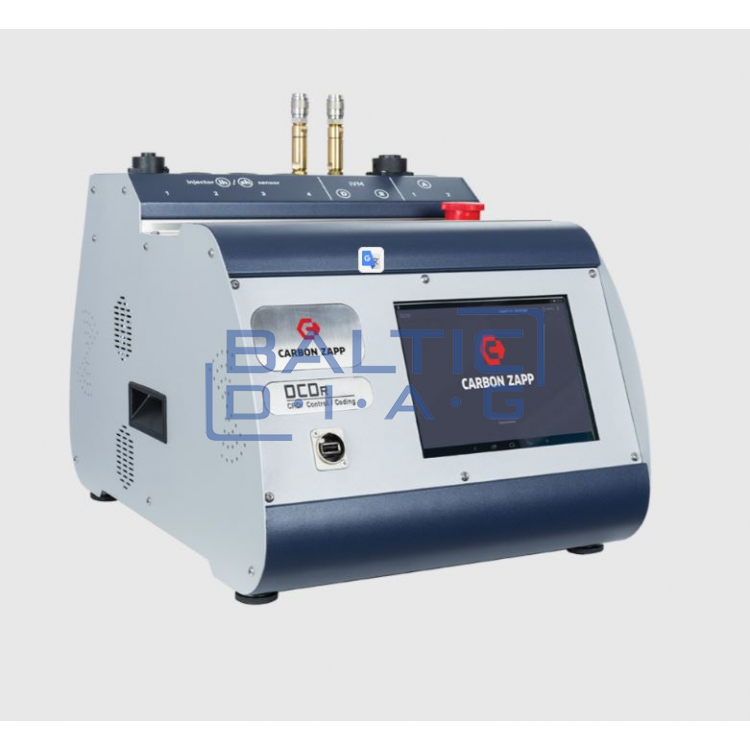

Diesel Injector Test Stand Carbon Zapp Specialists DCDR / DCDSR
Manufacturer: Carbon Zapp (Greece)
Sayves:
Works with every discrete and conventional test bench on the market
Tests all types and brands of injectors
Includes OEM database
1 CRi / CRiN / CRiN 4.2 / HEUi for solenoid or piezo injectors
Electronic measurement and coding
Operates NEW generation CRI3-25
CRI3-27 for nozzles with NCC and VCC technologies
Testing of EU5 and EU6 systems - Denso I-Art (6-pin), VDO, etc.
Injector coding for VDO IIC, Delphi C2i/C3i, Bosch IMA/ISA and Denso QR
VDO CR injectors (EU5) are only tested using VDO approved energy control
Injector response time measurement for all systems via RSP sensor
Actuator valve measurement using RSP/BIP sensor
Fully automatic and fast testing phase via 8-inch touch HMI with AZO software
CRDi Piezo Stack regeneration function
Blue limit diagnostics for diesel injectors
Static electron mass (DFAP) measurement
Emergency safety stop function
Compact, lightweight and portable device
Connects to any Cambox. Automatic function with full database and test plans (coding*) with Hartridge HK-1400A Cambox powered by Carbon Zapp (future upgrade optional)
High pressure test up to 2800 bar (EU6) with BCR-Kit (optional)
