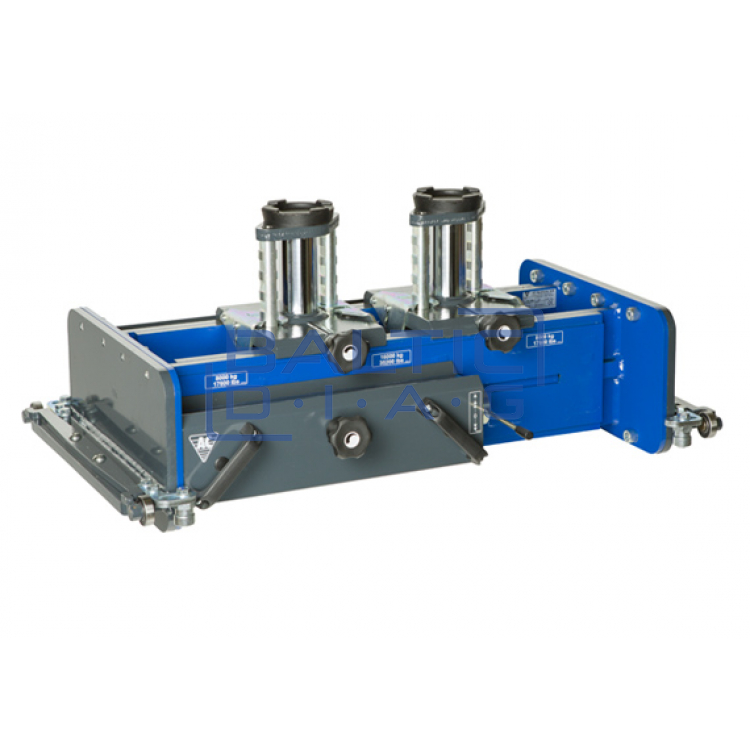

Dual pneumatic-hydraulic axle lift AC Hydraulic FL120-2M

Dual pneumatic-hydraulic axle lift AC Hydraulic FL120-2M

SKU: BD13351
SKU:: FL120-2M

7,290.00 €

Prices shown include tax

Send Message

Description

Dual pneumatic-hydraulic axle lift AC Hydraulic FL120-2M

AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Pneumatic-hydraulic two-cylinder axle lift for trucks with automatic mechanical safety lock

Description:

- Fast and accurate pneumatic-hydraulic axle hoist with high-speed cylinder

- 2 individual controlled cylinders for safe and even lifting

- Simple modern design with control panel and ergonomic working height

- Can be adapted to use all lifts due to its adjustable body

- The height of the casing is adjusted and adjusted according to the customer's requirements

- Sliding cylinders

- Emergency release and overload valve for optimum safety

- Supplied with 2 x 100 mm extensions

- Manufacturer: Denmark

- Warranty: 3 years

Technical parameters:

- "Lifting capacity": 12 tonnes

- Piston stroke: 200 mm

- Min. height: 325 mm

- Charges. Height: 505 mm

- Lift width: 590 - 1410 mm

- Depth of lift: 665 mm

- "Required Compressed Air Pressure": 8 - 12 bar

- Required compressed air flow: 350 l / min

- Weight: 202 kg
