Dual pneumatic-hydraulic axle lift AC Hydraulic FL200-2M
Dual pneumatic-hydraulic axle lift AC Hydraulic FL200-2M
Dual pneumatic-hydraulic axle lift AC Hydraulic FL200-2M
Dual pneumatic-hydraulic axle lift AC Hydraulic FL200-2M

Dual pneumatic-hydraulic axle lift AC Hydraulic FL200-2M

  • SKU: BD13352
7,735.00 €

AC-HYDRAULIC AC-HYDRAULIC
Prices shown include tax
Add to Cart

Send Message

Description

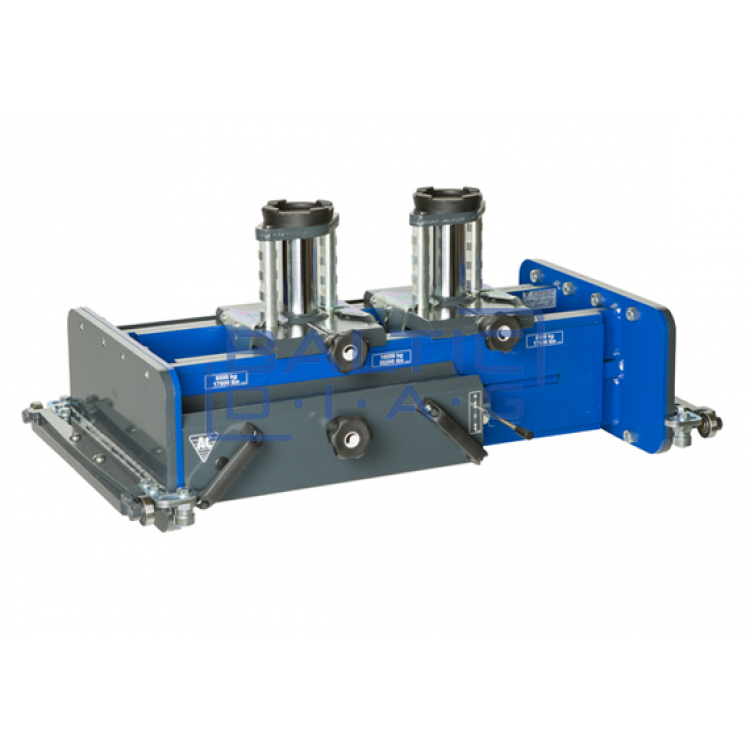

Dual pneumatic-hydraulic axle lift AC Hydraulic FL200-2M


AC-Hydraulic, Denmark; Warranty: 3 years for hydraulics and 10 years for body parts

Pneumatic-hydraulic two-cylinder axle lift for trucks with automatic mechanical safety lock

Description:

- Fast and accurate pneumatic-hydraulic axle hoist with high-speed cylinder
- 2 individual controlled cylinders for safe and even lifting
- Simple modern design with control panel and ergonomic working height
- Can be adapted to use all lifts due to its adjustable body
- The height of the casing is adjusted and adjusted according to the customer's requirements
- Sliding cylinders
- Emergency release and overload valve for optimum safety
- Supplied with 2 x 100 mm extensions
- Manufacturer: Denmark
- Warranty: 3 years

Technical parameters:

- "Lifting capacity": 20 tonnes
- Piston stroke: 200 mm
- Min. height: 325 mm
- Charges. Height: 505 mm
- Lift width: 590 - 1410 mm
- Depth of lift: 665 mm
- "Required Compressed Air Pressure": 8 - 12 bar
- Required compressed air flow: 350 l / min
- Weight: 202 kg
