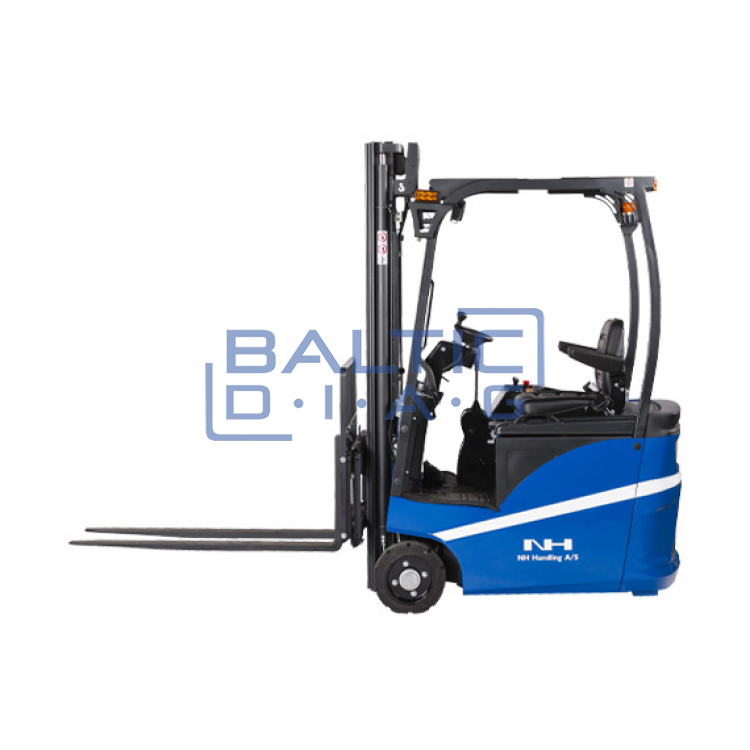

Electric forklift 1200 kg NH Handling NH1248-N

Electric forklift 1200 kg NH Handling NH1248-N

Manufacturer: NH Handling (Denmark) Warranty: 3 years

• Modern design, CURTIS control and comfort with a focus on stable operation
• Wan Nan motors and the latest AC technology ensure minimal power consumption and long operating time on a single charge
• Good visibility both at the front and rear, as well as safety for the operator thanks to the protective roof grille
• The location of the rear axle ensures a stable turn and a small turning radius
• The truck is particularly quiet
• Electrical control is environmentally friendly
• The truck is equipped with a hydraulic fork lift and can control all types of pallets

Technical data:

• Drive unit: electric
• Max. load: 1200 kg
• Load center: 500 mm
• Distance from the center of the drive wheel to the end of the fork: x 265 mm
• Wheelbase: 991/1073 mm
• Weight with battery: 2080 kg
• Axle load, with load, front / rear: 2950/330 kg
• Axle load, no load, front / rear: 880/1220 kg
• Wheel type: solid rubber
• Wheel size for: 13 x 4 - 1/2 x 8 mm
• Wheel size, rear Ø: 343 x 140 mm
• Number of front / rear wheels (x = driving wheels): b10 2/1 x
• Travel speed with / without load 7/9 Km / h
• Lifting speed with / without load: 0.15 / 0.22 m / s
• Lowering speed with / without load: 0.17 / 0.25 m / s
• Increase with / without load: 6/10%
• Service brake: hydraulic
• Engine motor with breaks: S2 60 min. 3 kW
• Intermittent lifting motor: S3 15% 3 kW
• Battery voltage, normal capacity: K5 24/420 V / Ah
• Battery weight: 440 kg
• Controller: AC Curtiz
• Tilt the fork / fork frame forwards / backwards: 6 / 6.5˚

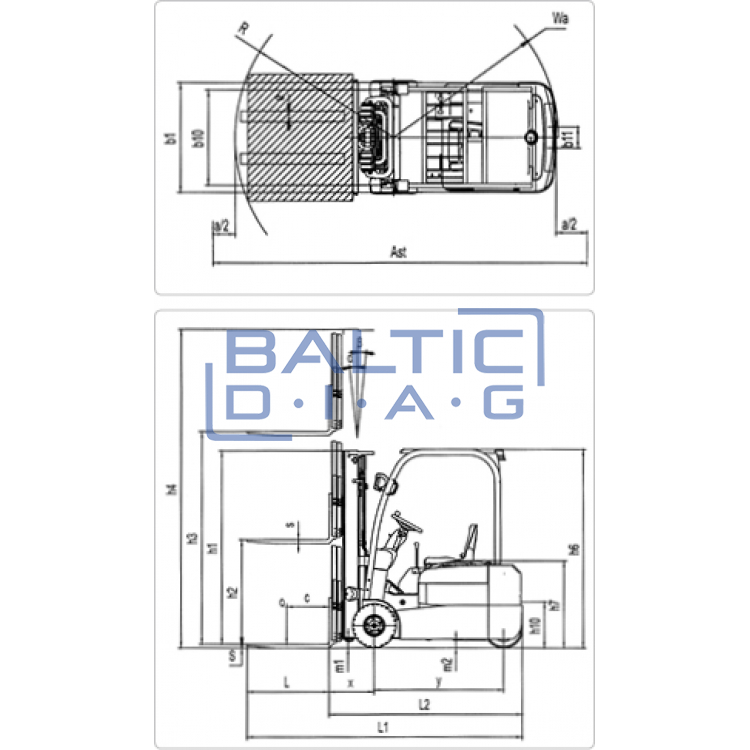

• Height, lowered mast h1: 2209 mm
• Fork height from floor to top h2: 1263 mm
• Lifting height h3: 4800 mm
• Height, raised mast h4: 5779 mm
• Protective roof height h6: 1975 mm
• Seat height h7: 980 mm
• Towing hook location h10: 540 mm
• Total length l1: 2460 mm
• Length to the back of the fork: 1545 mm
• Overall width b1: 880 mm
• Fork dimensions s / e / l: 35/100/1200 mm
• Fork chair width b3: 825 mm
• Free height with load, under the mast m1: 80 mm
• Free height, wheelbase center m3: 90 mm
• Corridor width with pallets 1000x1200 per Ast: 2950 mm
• Footpath width with pallets 800x1200 along Ast: 3068 mm
