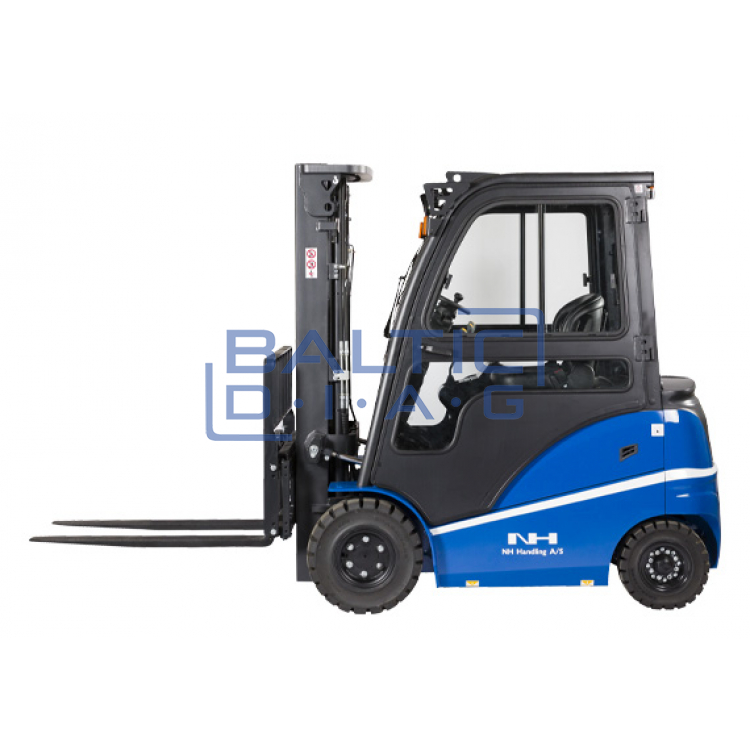

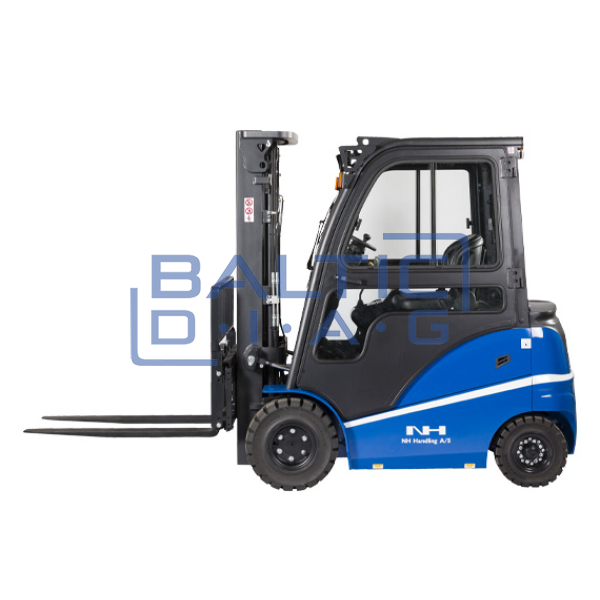

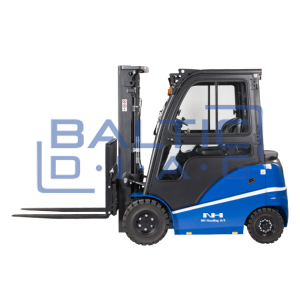

Electric forklift 2500 kg NH Handling NH2548-N

Electric forklift 2500 kg NH Handling NH2548-N

Manufacturer: NH Handling (Denmark) Warranty: 3 years

Technical data:

• Drive unit: electric
• Max. load: 2500 kg
• Load center, nominal: 500 mm
• Distance from the center of the driving wheel to the end of the fork: 468 mm
• Wheelbase: 1500 mm
• Weight with battery: 4260 kg
• Axle load, with load, front / rear: 6020/750 kg
• Axle load, no load, front / rear 2000/2260
• Wheel type - strong rubber
• Wheel size for 23 x 9-10-18 PR mm
• Wheel size, rear 18 x 7-8-14 mm
• Number of front / rear wheels (x = driving wheels) b10 2/2 x
• Travel speed with / without load: 13/14 Km / h
• Lifting speed with / without load 0.3 / 0.39 m / s
• Lowering speed with / without load <0.6 m / s
• Enlarge with, without load: 13/15%
• Service brake: hydraulic
• Engine motor with breaks S2: 60 min. 11 kW
• Intermittent lifting motor S3: 15% 8.6 kW
• Battery voltage, normal capacity K5: 48/600 V / Ah
• Battery weight: 947 kg
• Controller AC: Curtiz

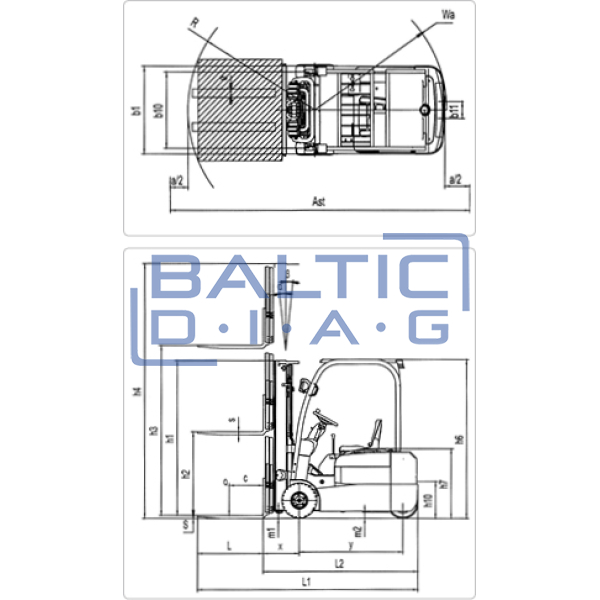

• Tilt the fork / fork frame forwards / backwards: 6 / 10˚
• Height, lowered mast h1: 2245 mm
• Fork height from floor to top h2: 1263 mm
• Lifting height h3: 4800 mm
• Height, raised mast h4: 5779 mm
• Protective roof height h6: 2060 mm
• Seat height h7: 1100 mm
• Towing hook location h10: 295mm
• Total length l1: 3398 mm
• Length to the back of the fork l2: 2328 mm
• Overall width b1: 1260 mm
• Fork dimensions s / e / l: 40/120/1200 mm
• Fork chair width b3: 1040 mm
• Free height, with load, under the mast m1: 110 mm
• Clearance height, chassis base center m3: 120 mm
• Corridor width with pallets: 1000x1200 per Ast 3588 mm
• Walkway width with pallets 800x1200: along Ast 3718 mm
