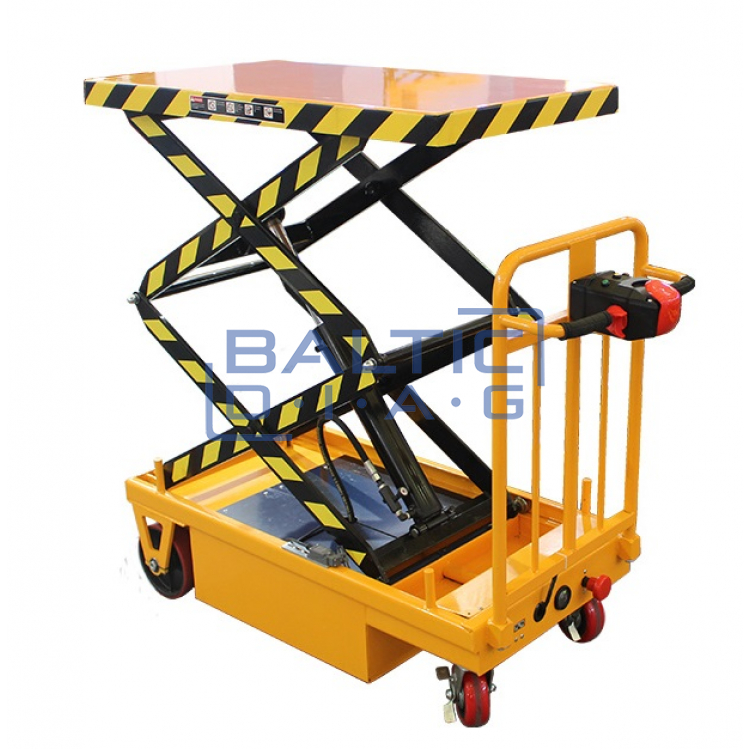

Electro-hydraulic mobile lifting table 1-4t

SKU: BD99715
SKU:: BD99715

0.00 €

Prices shown include tax

Add to Cart

Send Message

Description

Electro-hydraulic mobile lifting table 1-4t

Scissor lift with mounted rollers. High anti-corrosion function. High quality pumping station, gentle lifting and lowering. Scissor technology. The pressure limiter protects against overload, the lift control valve allows you to adjust the lowering speed. Lifting can be stopped at a convenient location for you. According to American standard ANSI / ASME and European standard EN1570.

Features:

Electrical and hydraulic system.

The ramp facilitates loading and unloading.

The high-quality pumping station allows stable lifting and falling.

Scissors technology against.

Equipped with aluminum suspension under the platform for lowering.

The pressure relief valve protects against overload.

The flow control valve allows you to adjust the descent speed.

Manufactured according to American standard ANSI / ASME and European standard EN1570.

Security standards:

Safety valves

Emergency exhaust valve

Overload protection device

Emergency valve

Overload protection device

Modelis	Keliamoji galia (kg)	Sumažintas platformos aukštis (mm)	Maks. Plokštelės aukštis (mm)	Platformos dydis (mm)	Rėmo dydis (mm)	Kėlimo laikas (s)	Variklis (kW)	Grynas svoris (kg)
SS01	1000	205	1000	1300 × 820	1240 × 640	20-25	1.1	160
SS02	1000	205	1000	1600 × 1000	1240 × 640	20-25	1.1	186
SS03	1000	240	1300	1700 × 850	1580 × 640	30–35	1.1	200
SS04	1000	240	1300	1700 × 1000	1580 × 640	30–35	1.1	210
SS05	1000	240	1300	2000 × 850	1580 × 640	30–35	1.1	212
SS06	1000	240	1300	2000 × 1000	1580 × 640	30–35	1.1	223
SS07	2000	230	1300	1300 × 850	1280 × 785	20-25	1.5	235
SS08	2000	230	1300	1600 × 1000	1280 × 785	20-25	1.5	268
SS09	2000	250	1300	1700 × 850	1600 × 785	25–35	2.2	289
SS10	2000	250	1300	1700 × 1000	1600 × 785	25–35	2.2	300
SS11	2000	250	1300	2000 × 850	1600 × 785	25–35	2.2	300
SS12	2000	250	1300	2000 × 1000	1600 × 785	25–35	2.2	315
SS13	4000	240	1100	1700 × 1200	1600 × 900	30–40	2.2	375
SS14	4000	240	1100	2000 × 1200	1600 × 900	30–40	2.2	405
SS15	4000	300	1400	2000 × 1000	2000 × 900	45-50	2.2	470
SS16	4000	300	1400	2000 × 1200	2000 × 900	45-50	2.2	490
SS17	4000	300	1400	2200 × 1000	2000 × 900	45-50	2.2	480
SS18	4000	300	1400	2200 × 1200	2000 × 900	45-50	2.2	505
