Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
-11 %
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL
Electrohydraulic two post lfit Weber Expert SJC-10XL

Electrohydraulic two post lfit Weber Expert SJC-10XL

  • SKU: BD96798
3,085.50 €

3,448.50 €
Prices shown include tax

Send Message

Description

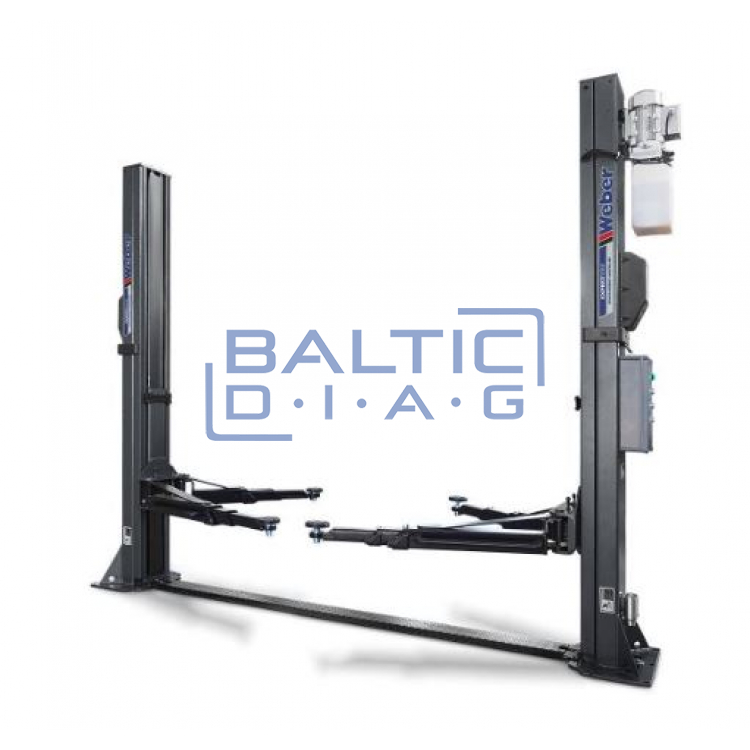

Electrohydraulic two-column lift Weber Expert SJC-10XL

Manufacturer: Weber (Germany);

Description:
  • Fully automatic lifting and lowering at the touch of a button
  • Short arms are double telescopic for efficient application with both short and long cars
  • Protective rubbers on both columns
  • Curtains to protect the inside of the column from contamination
  • Asymmetrical paws for more comfortable door opening angles
  • Three-stage lifting paws ensure the ability to lift both short and long vehicles
  • Lifting pallets with height adjustment
  • Supplied with 4 pcs. 100 mm extension kit
  • Low maintenance and therefore faster to pay off

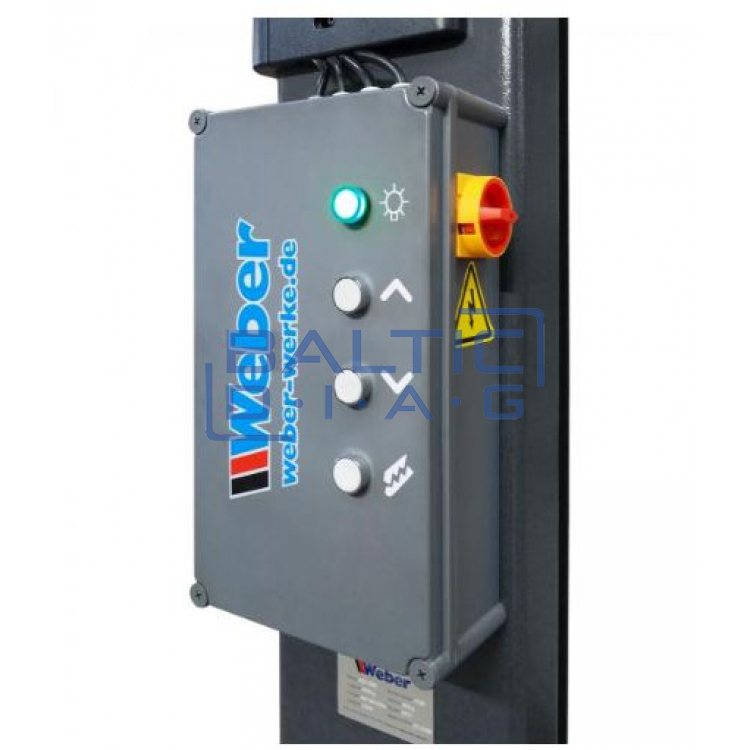

  • Easy operation thanks to 24V safety button
  • Perfect for lifting both cars and minibuses

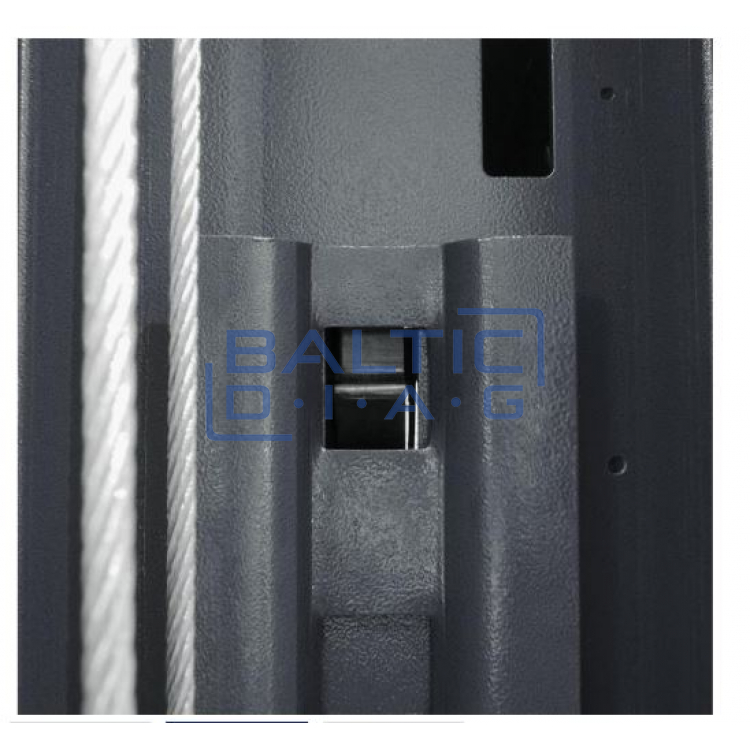

  • Automatic conical paw lock mechanism, manual unlocking possible
  • Lifting cylinders in both columns, cylinder sealing performed in the cylinder itself
  • Multiple safety devices, overload valve, hose break protection and mechanical protection
  • Electromagnetic locking
  • Lifting capacity up to 4.5 tons, structure successfully tested with 115% dynamic load and 150% static load
Technical parameters:
  • Lifting capacity: 4500 kg
  • Max. lifting height: 2060 mm
  • Min. height: 105 mm
  • Crossing height: 30 mm
  • Column height: 2850 mm
  • Spacing between columns: 2860 mm
  • Passage: 2570 mm
  • Overall width: 3755 mm
  • Length of long paws: 900 - 1830 mm, three steps
  • Length of short paws: 620 - 1235 mm
  • Min. required ceiling height: 3150 mm

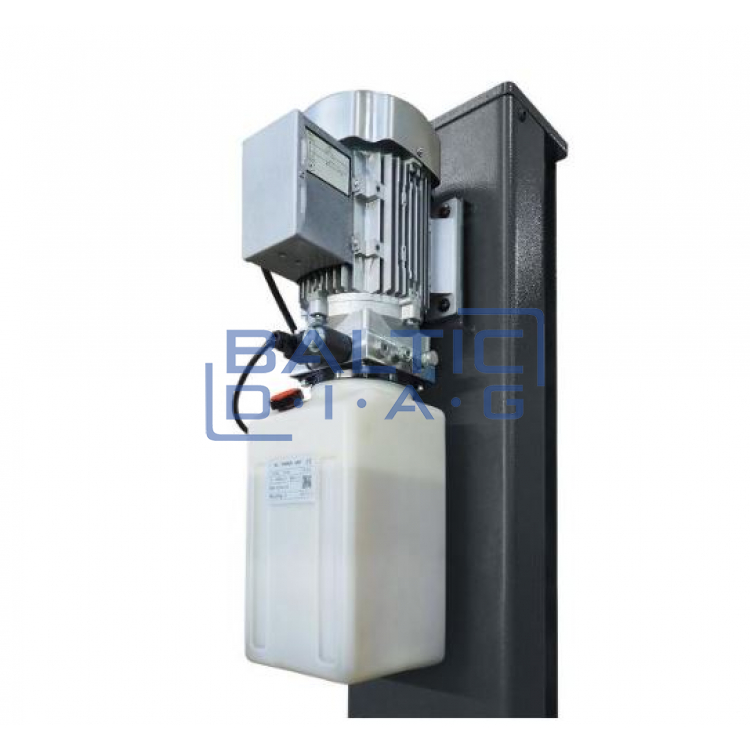

  • Engine power: 2.2 kW
  • Lifting time: 50 s
  • Weight: 660 kg
  • Power supply: 400V / 3Ph / 50Hz
