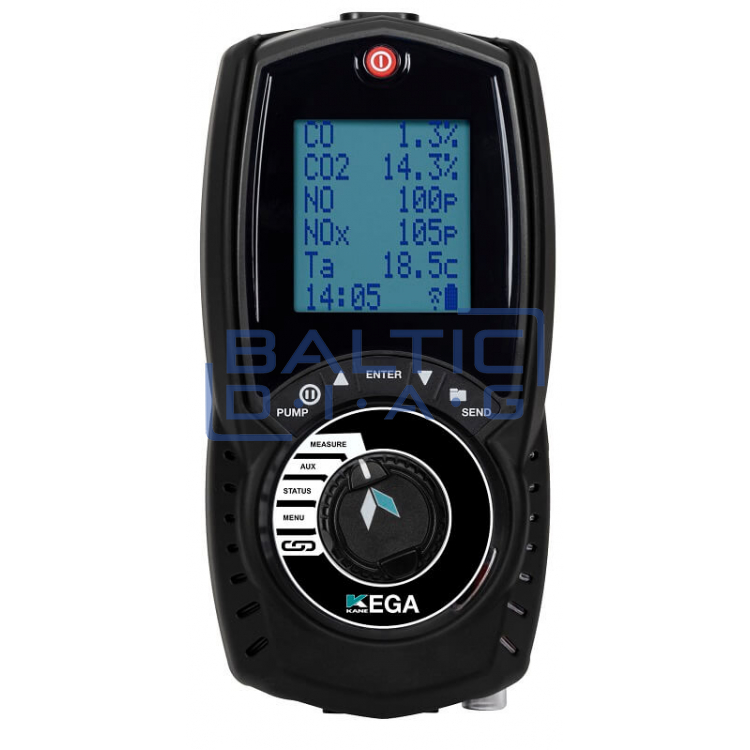

Exhaust gas analyzer Kane-EGA 1/2/3

Exhaust gas analyzer Kane-EGA 1/2/3

Manufacturer: KANE, Great Britain

It is a mobile, hand-held exhaust gas analyzer capable of measuring up to 3 different gas mixtures. Measured gas mixtures: CO, 0 - 10000 ppm or 0 - 10% / 100000 ppm. CO2, 0 - 20%. O2 - 0 - 21% and NO 0 - 600 ppm.

EGA options:

• Kane-EGA1: option to measure only one selected exhaust gas mixture.
• Kane-EGA2: option to measure two selected exhaust gas mixtures.
• Kane-EGA3: Ability to measure three selected exhaust gas mixtures.

Battery-powered exhaust gas analyzers

• Instant inspection of exhaust pipes and catalytic converters.
• Ability to measure diesel internal combustion NOx emissions.
• Ability to measure the air quality of a vehicle or workplace.
• Possibility to check the heating system of the car cabin.
• Compact and simple to use, with a large screen.

Applicability:

• Measure the performance and safety of every internal combustion engine that uses fossil fuels.
• The possibility of measuring: vehicles, forklifts, ice cleaning machines, interior heaters, motorcycles, scooters and generators.

Measurements that depend on the selected sensor

• CO: 0 - 10000 ppm
• CO2: 0 - 20%
• CO: 0 - 10%
• O2: 0-21%
• NO: 0 - 600 ppm

Features:

• The rotary selection wheel and the 6-line display will facilitate the use of the analyzer.
• Ability to connect to KANE live and third-party programs.
• Ability to connect to additional KANE LINK devices.
• Ability to save up to 45 performed measurements.
• Compact and sturdy, covered with protective rubber and equipped with magnets so that you don't have to always hold the device in your hands.
• Integrated water retention filter and replaceable particle filter.
• USB charger and replaceable, long-life batteries.
• Printing of results with the optional KANE-IRP3 printer.
• 10-year warranty if the device is repeatedly serviced at KANE service.

Additional probes and accessories:

• EP2 - 300mm probe with 6M tubing and built-in particle filter
• EP3 - 230mm motorcycle probe with 1.5M tubes
• EP4 - same as EP3, only additionally measures exhaust temperature
• EP5 - Cabin heater analysis probe
• KANE-IRP3 - infrared printer

The set includes:

KANE LINK wireless module, EP1 emission probe, USB1 charger and 14102/2 equipment bag

Equipment prices:

• KANE-EGA1 Analyzer: 959.00 EUR including VAT
• KANE-EGA2 analyzer: 1399.00 EUR including VAT
• KANE-EGA3 analyzer: 1849.00 EUR including VAT
