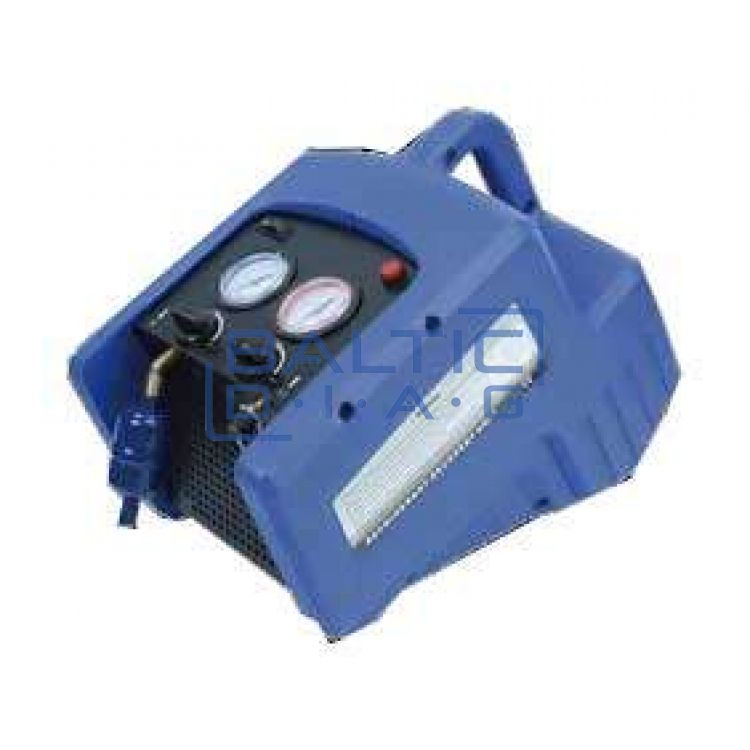

Freon collector with oil separator Magneti Marelli R134a / R1234yf etc.

Freon collector with oil separator Magneti Marelli R134a / R1234yf etc.

Manufacturer: Magneti Marelli, Poland. Warranty: 2 years

Supported factors:

cat.lll: R-1 2, R-1 34a, R-401C, R-406A, R-5OO, HFO-1234yf

Cat IV: R-22, R-401A, R-401 B, R-402B, R-407C, R-407D, R-408A, R-409A, R-41 1A, R-41 1B, R-41 2A , R-502, R-509

V cat: R-402A, R-404A, R-407A, R-407B, R-41OA, R-507, R32

Other parameters:

Voltage: 220-240 VAC 50/60 Hz 1 10-1 27 VAC 60 Hz 100 VAC 50/60 Hz 1 10/220 VAC 50/60 Hz

Compressor: 1/2 hp without oil

Maximum current: 4 A @ 50 Hz 8 A @ 60 Hz

High pressure switch: 38 bar / 550 psi cat. III cat. IV cat. V

Recovery efficiency:

Steam 0.23 kg / min 0.25 kg / min 0.26 kg / min

Fluid 1.57 kg / min. 1.81 kg / min. 1.85 kg / min

Push / pull 4.64 kg / min 5.57 kg / min 6.22 kg / min

Optional low pressure switch

An 80% capacity switch is optional

Operating temperature 0-40 ° C

Case

High impact molded polyethylene

Dimensions 485 mm long x 220 mm wide x 365 mm high

Weight 13 kg
