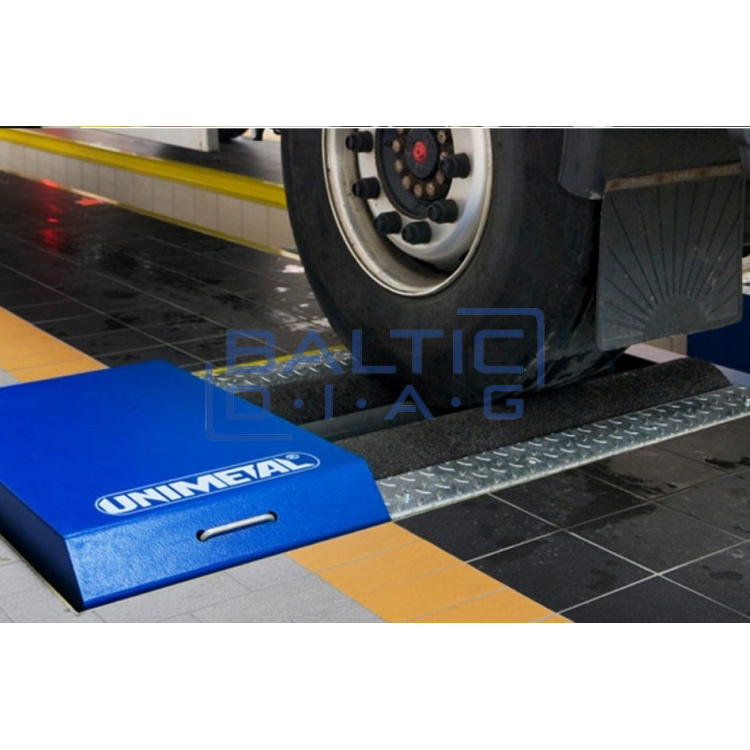

Heavy-duty vehicle brake test bench for Unimetal RHC-30 up to 18t axles

The RHC-30 is a state-of-the-art brake test bench for heavy-duty vehicles over 3.5 tons and up to 18 tons, including trucks, buses, tractors, trailers and other vehicles with all-wheel drive.

This brake stand can be used individually or linked to a common test line like the UNILINE QUANTUM 3000. The equipment is intended for heavy duty vehicle service centers, public transport companies and other companies involved in the repair and maintenance of heavy duty vehicles.

The electromechanical part of the equipment is of proven design with high strength. All UNIMETAL units feature innovative measurement systems and microprocessor-based control panels powered by UNILINE QUANTUM software.

The user-friendly program takes the user step-by-step through the testing process and automatically analyzes and reports the test results. The system has a wide range of additional functionalities that can be enabled for advanced testing and brake system analysis.

- Maximum axle load: 18 tonnes

- Braking force limits: 0 - 30 kN

- Track width: 990 - 2700 mm

- Available Wheel Diameter: 14 - 33 "

- Measured pressure ranges (with optional equipment): 0 - 1 MPa

- Brake Pedal Pressure Limits (Optional): 0 - 1000 N

- Engine power: 2x 7,5 kW

- Coefficient of adhesion for dry / wet tires: 0,9 - 0,7

- Test speed: 2.5 km / h

- Power supply: 400V / three-phase

- Control unit (without computer)

- Remote control radio

- Power and signal wires

- Frame for concreting into the base

- Wireless pressure sensor for pneumatic systems

- Wireless brake pedal pressure sensor

- 4x4 program for testing four wheeled vehicles

- Quick-release connectors

- Analog display

- Inverters, reduce power consumption and smooth start up of rollers

- 42 "LCD display with wall mount

- Hydraulic axle loader

- Weighing system

- Mobile slow-moving rollers

- Roller covers
