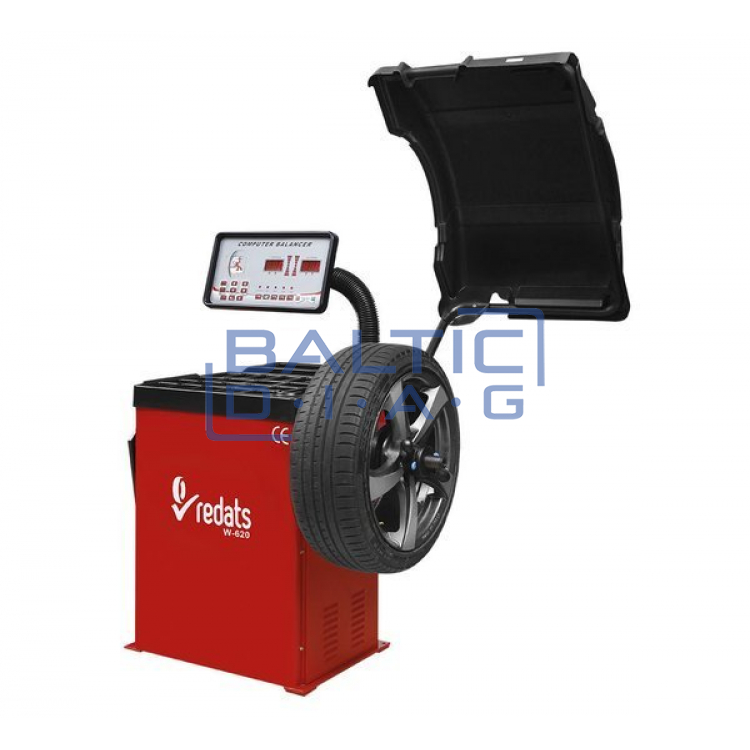

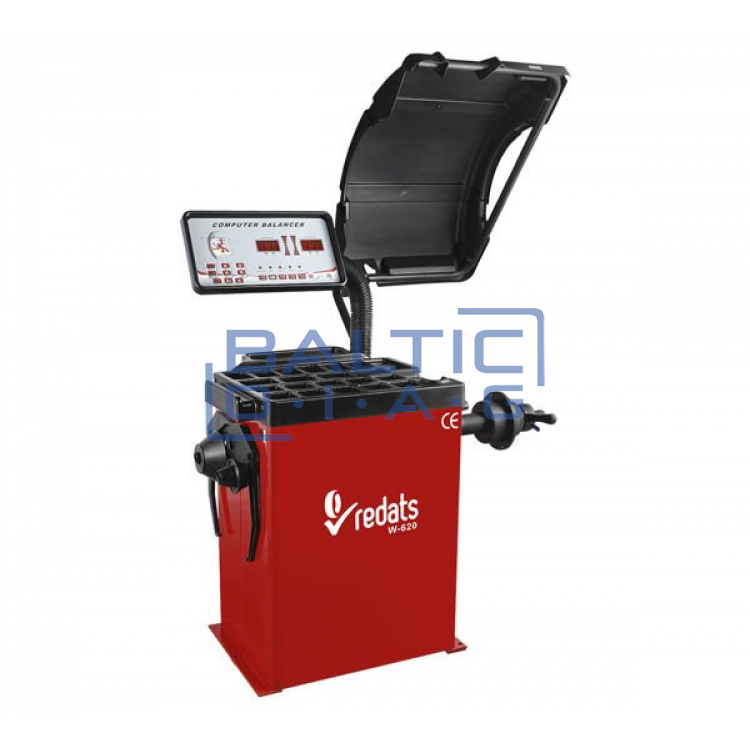

High precision wheel balancing machine Redats W-620

High precision wheel balancing machine Redats W-620

Manufacturer: Redats. Warranty: 2 years

These wheel balancers are specially designed to ensure the highest quality and accuracy of wheel balancing. Using this machine, you will easily and precisely balance the wheels of various sizes and widths of passenger cars and minibuses.

If you care about the quality of the device - Redats W-620 is a great choice! This machine is a reliable device that has very simple, intuitive controls and high-quality, robust and precise components. You won't have to worry about any unexpected breakdowns when working with these machines.

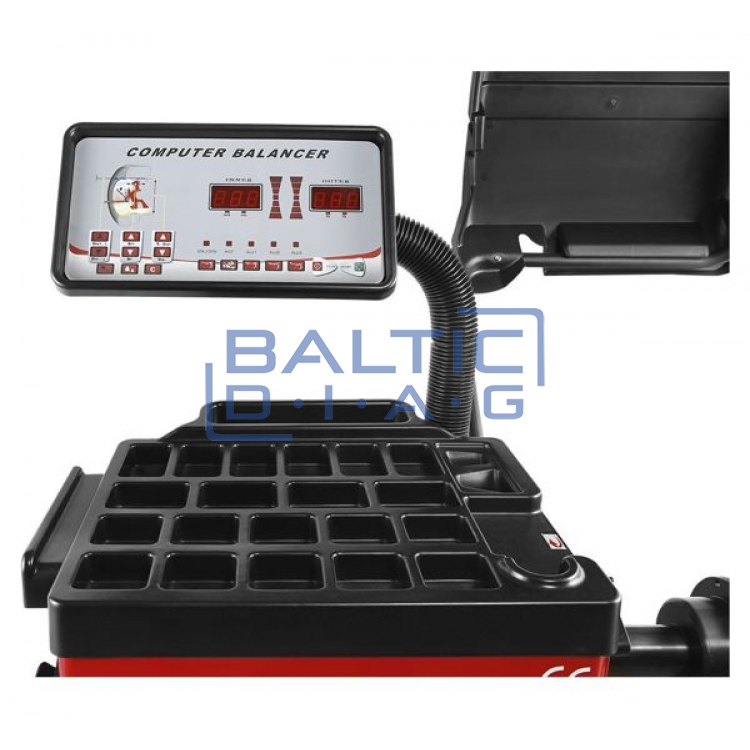

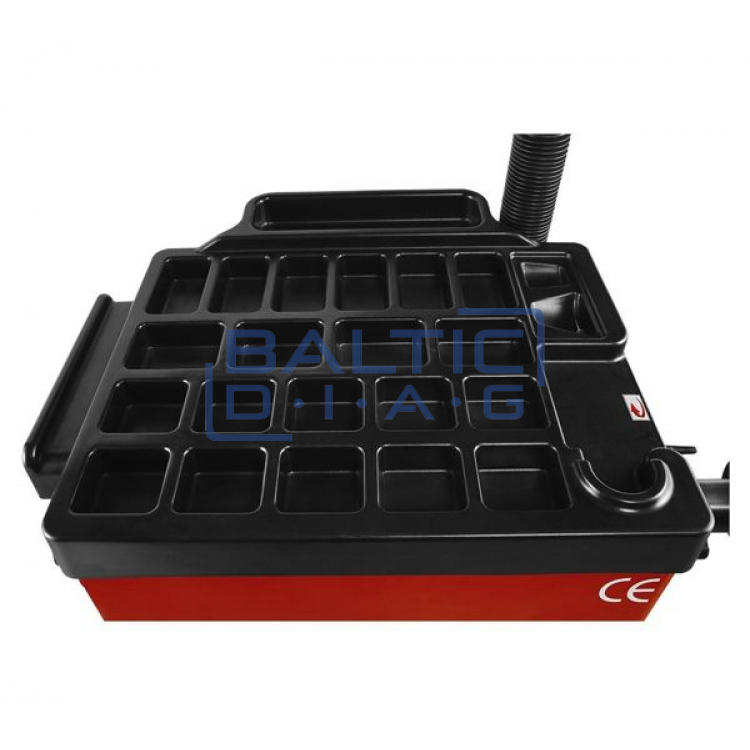

Extremely reliable and accurate balancing process. The measurement system practically eliminates all possible electronic inaccuracies, thanks to which the entered wheel data remains extremely accurate, regardless of the size of the rim. The ergonomic design of the machine ensures a comfortable workplace - there is enough space between the mounting shaft and the balancing machine, so you can easily glue or add balancing weights to the rims. Also, the balancer has a large work surface with compartments of various sizes for convenient storage of balance weights and other accessories.

Another advantage of the Redats W-620 machine is a very quiet engine, which ensures comfortable working conditions even on the most intensive working day, the same quiet, strong and accurate balancing shaft ensures fast wheel fastening and a high-quality balancing process.

Balancing machines are equipped with dynamic wheel balancing programs (for passenger cars and commercial vehicles) as well as one static balancing program for motorcycle wheels. And the places of balancing irregularities are displayed thanks to auxiliary lights.

Features:

• Dynamic wheel balancing - for passenger cars
• Static wheel balancing - for motorcycle wheels
• Four special programs - 3 programs for aluminum rims and 1 for motorcycle wheels
• Quiet electric motor, accurate and strong balance shaft

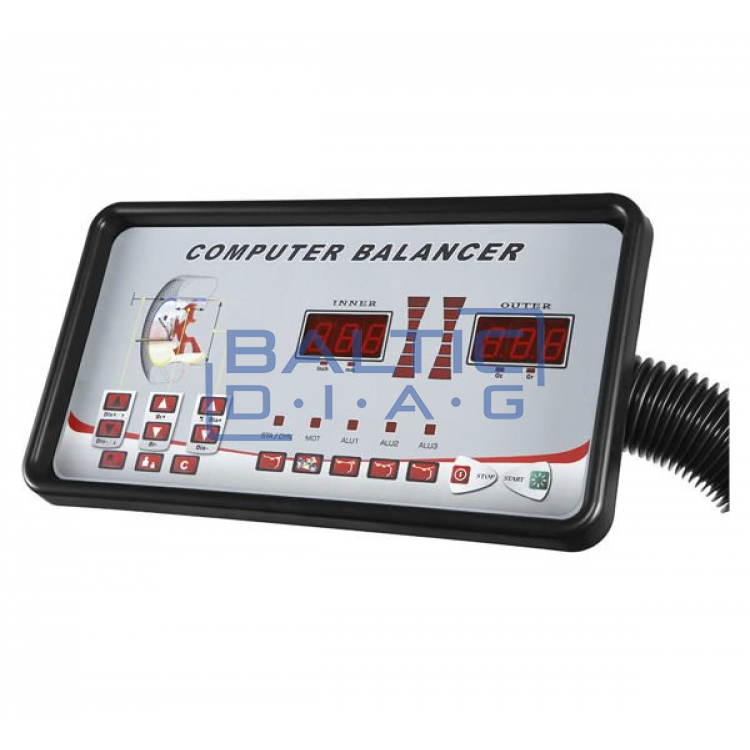

• The lights will show you where the wheels are out of balance
• Self-diagnosis and device calibration
• Imbalance is displayed in grams.

Complete set:

• Quick lock wing nut

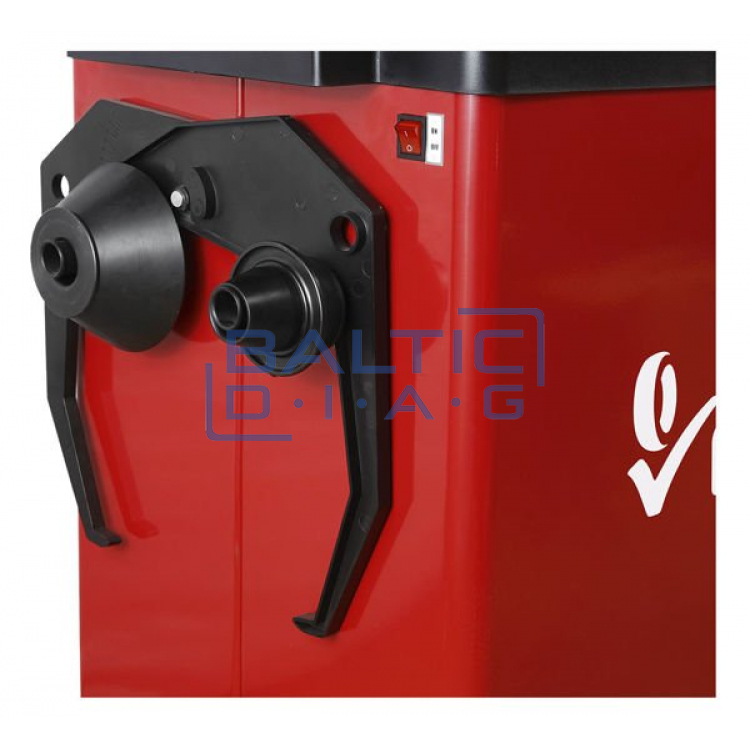

• 3 centering cones, 43 – 157 mm
• Pliers, for removing and applying weights
• Calibration weight, 100 g
• Ruler for measuring rim width
• Fixing cone with rubber
• Small mounting cone
• 2 holders for details
• Hexagon key

Technical parameters:

• Additional features: Automatic calibration optimization
• Minimum imbalance threshold: 1g
• Power supply: 230V 50 Hz
• Rim diameter: 10-24"
• Unbalance positioning device: LED lamps
• Rotation speed: 200 rpm
• Maximum wheel weight: 65 kg
• Applications for ALU rims: 3

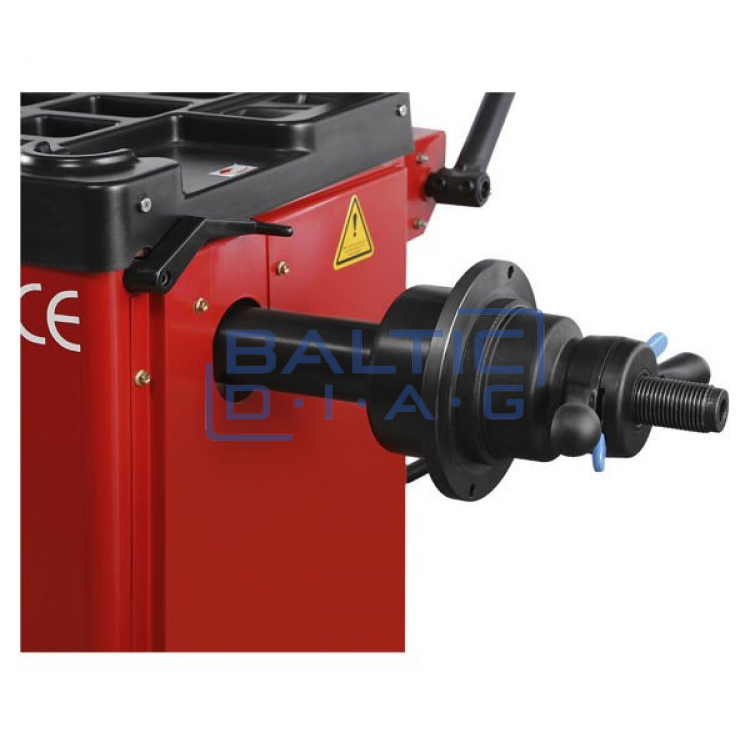

• Axle diameter: 36mm (diameter) x 3mm (thread pitch)
• Max. power consumption: 250 W
• Dimensions: 1620 x 1100 x 1220 mm
• Weight: 110 kg
