Warranty: 12 months;

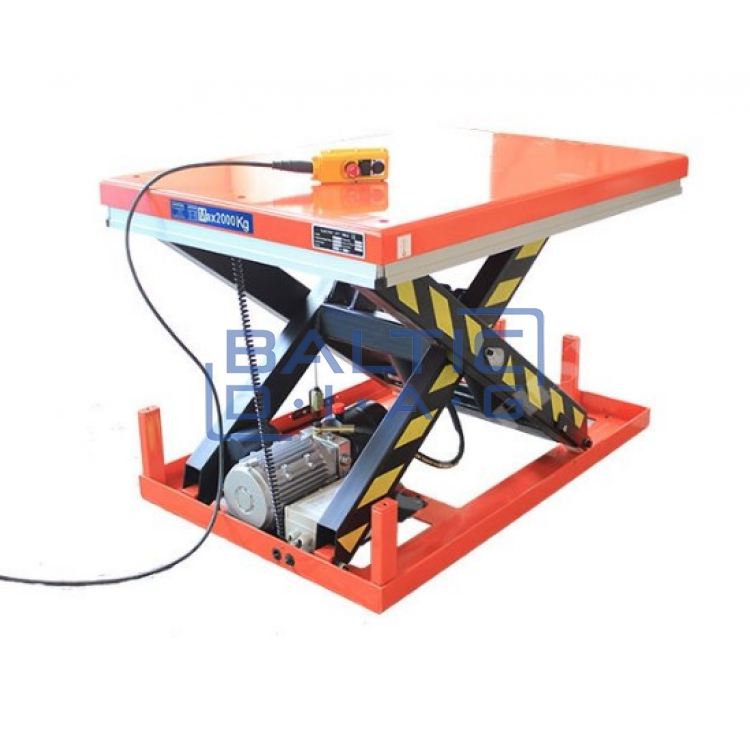

Sturdy and high-quality hoist with a special anti-corrosion layer on the platform, precise and high-quality hydraulic pump ensures stable and even control of the hoist scissors. The self-lubrication system is responsible for reducing the friction of moving elements. Hydraulic hoists of this type are a very important component of the industrial environment, which allows to raise various goods or components to the required height for transportation or further use / assembly.
To ensure high corrosion resistance, the frame structure is shot blasted and then painted and varnished with a special varnish.
The high-precision hydraulic station ensures a stable movement of the lift
Removable platform mount allows for easy adjustment or assembly of the lift
The pressure relief valve protects against overload; The flow control valve regulates the descent speed
ANSI / ASME and EN1570 standards
Model | Load Capacity | Self Height | Max Height | Platform size | Base size | Lifting Time | Motor | Net Weight |
SS2001 | 2000 | 230 | 1000 | 1300×850 | 1220×785 | 20~25 | AC 380V
| 1.5 |
SS2002 | 2000 | 230 | 1050 | 1600×1000 | 1280×785 | 20~25 | 1.5 | |
SS2003 | 2000 | 250 | 1300 | 1700×850 | 1600×785 | 25~35 | 2.2 | |
SS2004 | 2000 | 250 | 1300 | 1700×1000 | 1600×785 | 25~35 | 2.2 | |
SS2005 | 2000 | 250 | 1300 | 2000×850 | 1600×785 | 25~35 | 2.2 | |
SS2006 | 2000 | 250 | 1300 | 2000×1000 | 1600×785 | 25~35 | 2.2 | |
SS2007 | 2000 | 250 | 1400 | 1700×1500 | 1600×1435 | 25~35 | 2.2 | |
SS2008 | 2000 | 250 | 1400 | 2000×1800 | 1600×1435 | 25~35 | 2.2 |
