Warranty: 12 months;

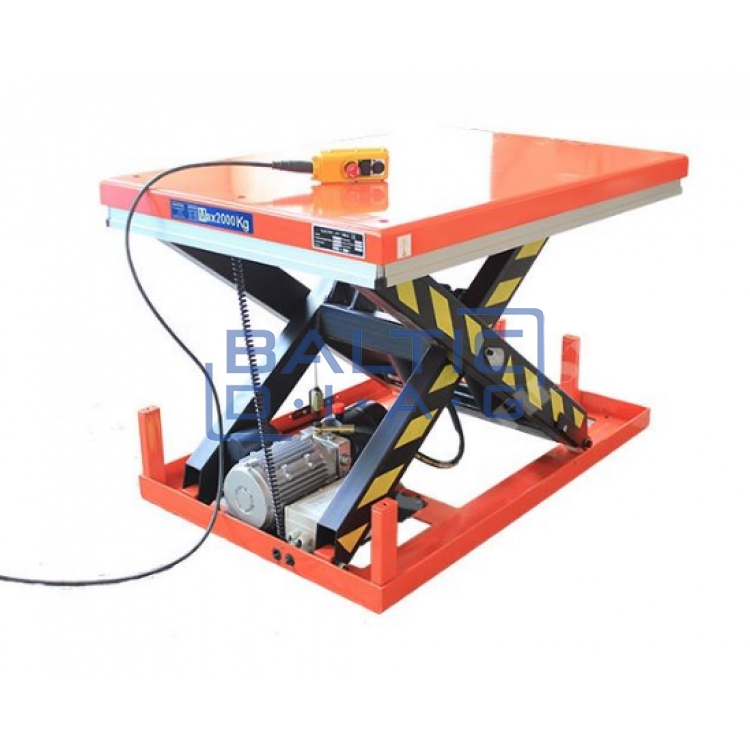

Sturdy and high-quality hoist with a special anti-corrosion layer on the platform, precise and high-quality hydraulic pump ensures stable and even control of the hoist scissors. The self-lubrication system is responsible for reducing the friction of moving elements. Hydraulic hoists of this type are a very important component of the industrial environment, which allows to raise various goods or components to the required height for transportation or further use / assembly.
To ensure high corrosion resistance, the frame structure is shot blasted and then painted and varnished with a special varnish.
The high-precision hydraulic station ensures a stable movement of the lift
Removable platform mount allows for easy adjustment or assembly of the lift
The pressure relief valve protects against overload; The flow control valve regulates the descent speed
ANSI / ASME and EN1570 standards
* The required lift parameters can be adjusted and adapted to your needs
Model | Load Capacity | Self Height | Max Height |
Platform size |
Base size | Lifting Time |
Motor |
Net Weight |
SS4001 | 4000 | 240 | 1050 | 1700×1200 | 1600×900 | 30~40 | AC 380V
| 2.2 |
SS4002 | 4000 | 240 | 1050 | 2000×1200 | 1600×900 | 30~40 | 2.2 | |
SS4003 | 4000 | 300 | 1400 | 2000×1000 | 1980×900 | 35~40 | 2.2 | |
SS4004 | 4000 | 300 | 1400 | 2000×1200 | 1980×900 | 35~40 | 2.2 | |
SS4005 | 4000 | 300 | 1400 | 2200×1000 | 2000×900 | 35~40 | 2.2 | |
SS4006 | 4000 | 300 | 1400 | 2200×1200 | 2000×900 | 35~40 | 2.2 | |
SS4007 | 4000 | 350 | 1300 | 1700×1500 | 1620×1400 | 35~40 | 2.2 | |
SS4008 | 4000 | 350 | 1300 | 2200×1800 | 1620×1400 | 35~40 | 2.2 |
