Key and immobilizer programming software Autel MaxiIM IM508S

Warranty - 2 years. The period of free updates is 24 months.

Description:

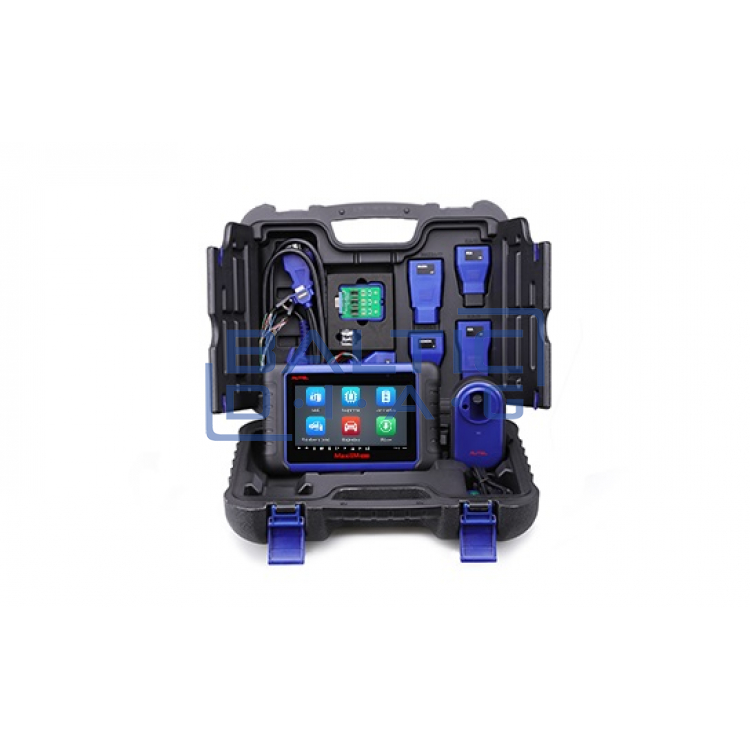

MaxiIM IM508S is a fast, easy-to-use and convenient immobilizer and key programmer. Autel diagnostics is developed on the basis of Android software, the operating touch screen tablet features a strong quad-core processor, intuitive design and a clear user interface. The IM508S comes complete with the XP200 key programmer, so all specific service functions for the immobilizer system can be performed with Autel diagnostics. Also, the ability to quickly diagnose all modules from the vast majority of car makes and models on the market, making the IM508S an indispensable tool for your service. This device is an excellent solution for service and repair technicians looking for an affordable and capable IMMO and diagnostic device.

• Powerful tablet processor
• 7" 1024 x 600 LCD touch screen
• 64GB internal memory
• Android operating system for fast startup and multitasking
• An impressive combination of key programming/full system diagnostics and advanced maintenance programs
• Intelligent mode for cognitive and automatic key learning
• Advanced mode for advanced key learning
• Scans PIN/CS (All key lost), key generation, key programming, remote training
• IMMO ECU reboot/adaptation, reset/coding
• Transponder read/write, EEPROM/MCU read/write
• Powerful OE level diagnostics for over 80 US, Asian and European market makes and models

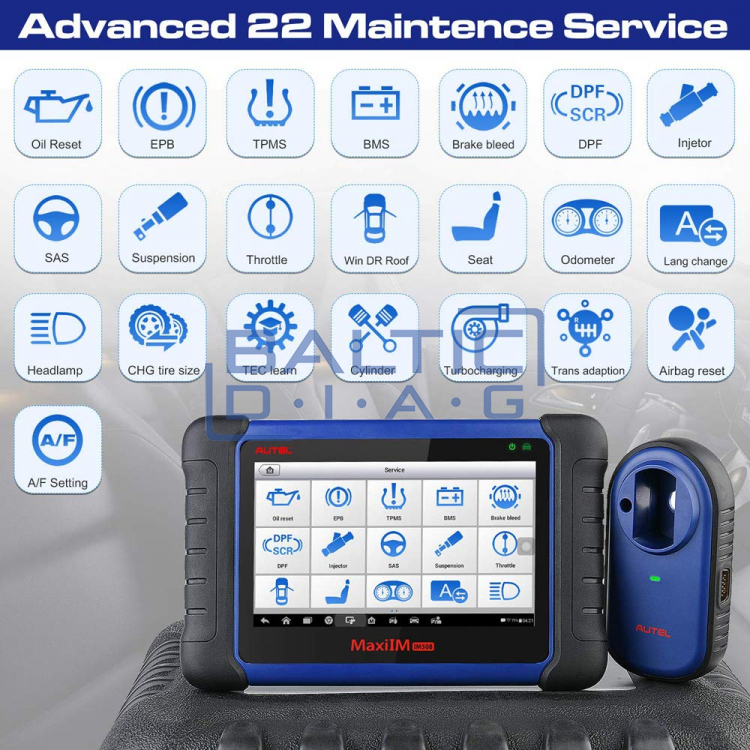

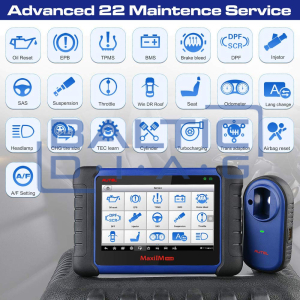

• Advanced maintenance programs including EPB, DPF, SAS, oil recovery, BMS service functions

Technical parameters:

• Operating system: Android 11.0
• Processor: Quad core processor, 1.8 GHz (A55)
• Memory: 64 GB
• Display: 7-inch LCD capacitive touchscreen, 1024 x 600 resolution
• RAM RAM: 4 GB
• Connections: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (up to 64GB)
• Sensors: light sensor for automatic screen brightness setting
• Audio inputs/outputs: no inputs, output - sound signal
• Power and battery: 3.7V / 5000 mAh lithium polymer battery, charged via 5VDC power supply
• Operating time: estimated constant operating time of about 4.5h
• Charging voltage: 12V
• Power consumption: 500 mA (LCD at standard brightness, Wi-Fi on) at 3.7V
• Operating temperature: 0 - 50°C
• Storage temperature: -20 - 60°C
• Operating humidity: 5 - 95%, non-condensing
• Weight: 0.788 kg
• Supported protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Comparison with legacy IM508 equipment:
