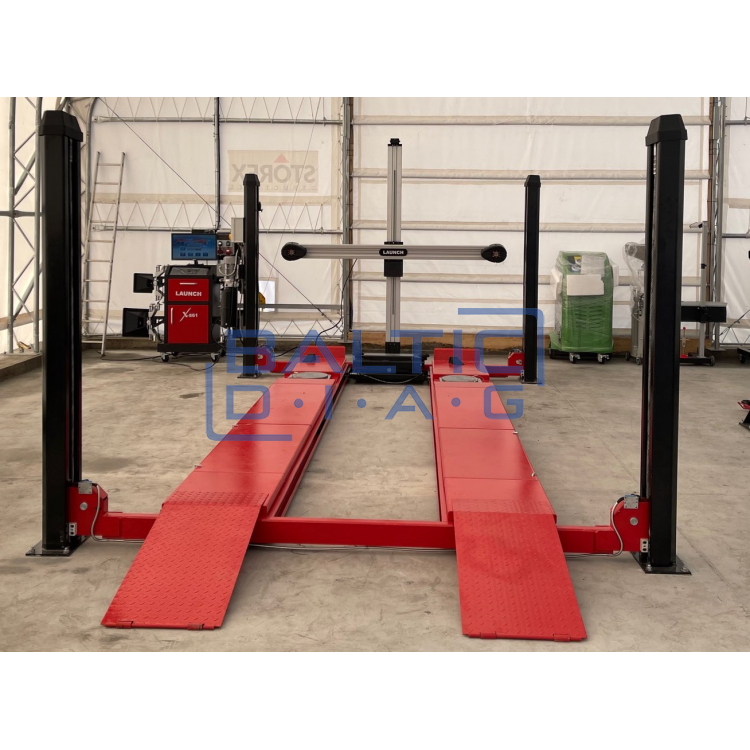

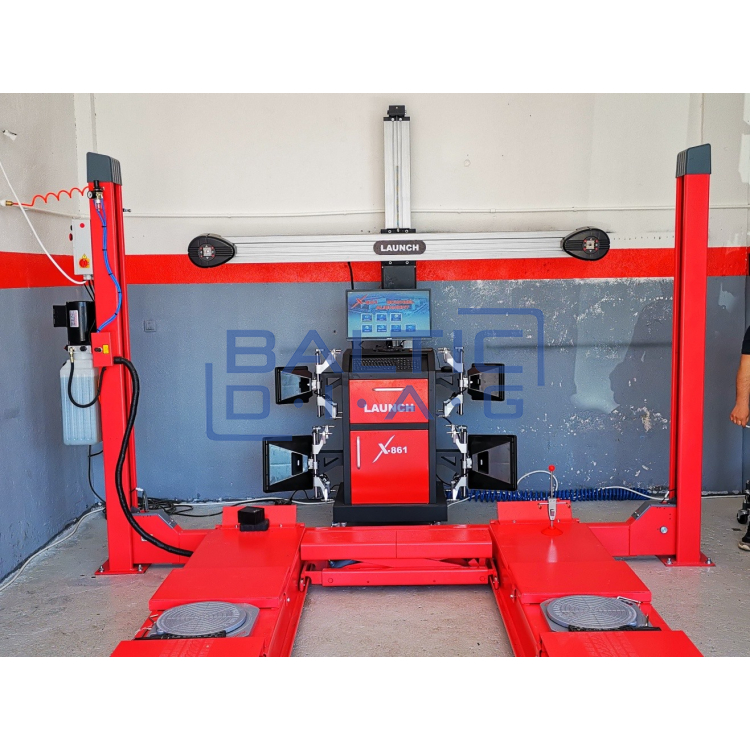

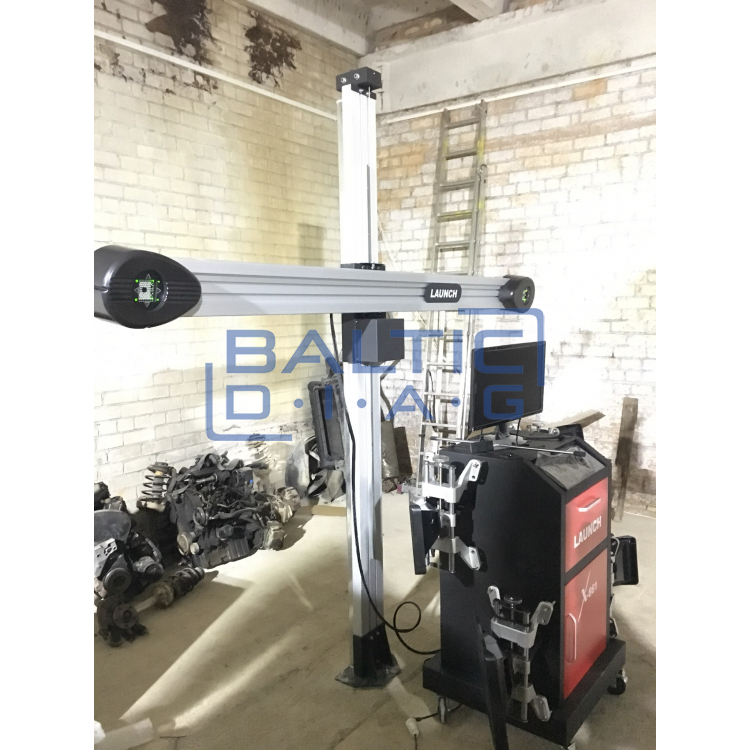

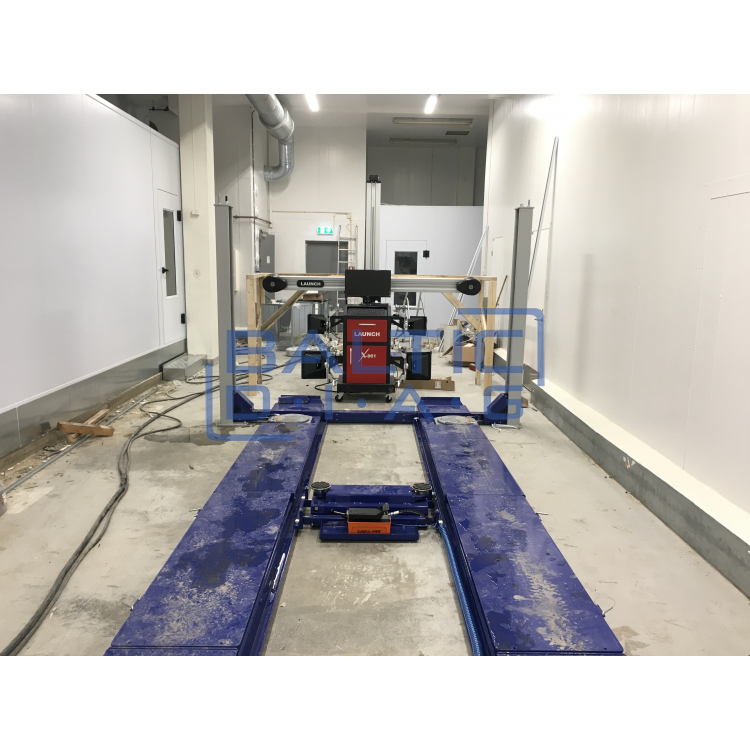

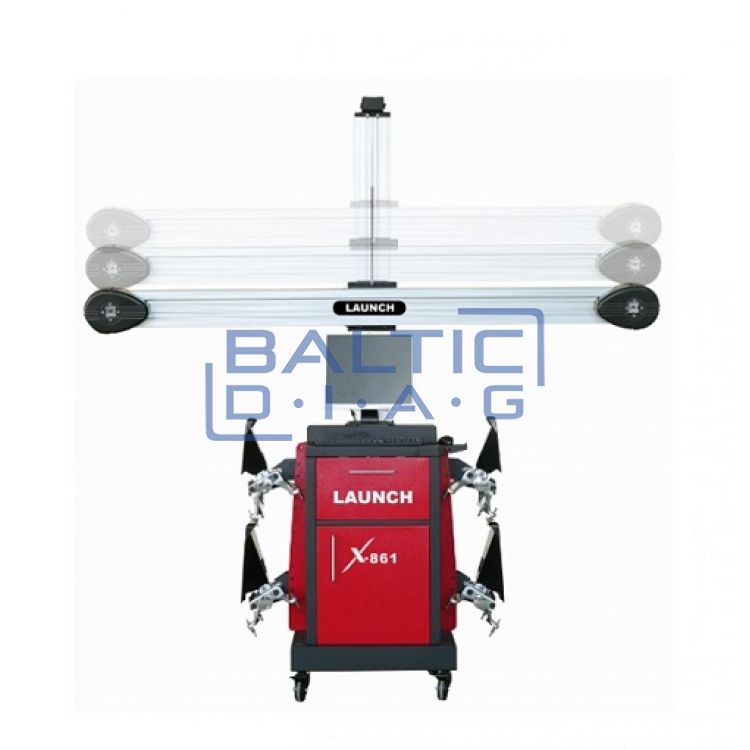

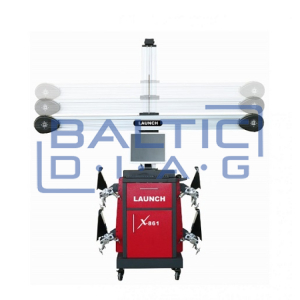

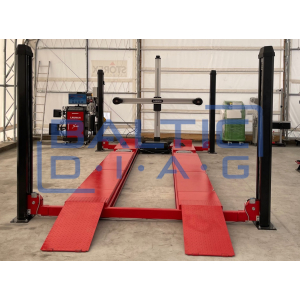

Launch X-861 3D wheel alignment stand

Launch X-861 3D wheel alignment stand

Launch, Germany; Warranty: 2 years

Description:

The X-861 3D Wheel Alignment Stand is a new generation device from LAUNCH. It is a highly accurate 3D measuring stand with which it is easy to start wheel alignment measurements based on easily presented data. A variety of car wheel angles can be measured, including front and rear wheel tilt, front and rear wheel tilt (chamber), caster angle, center axle lift, axle perpendicularity, and more. All parameters are set with extremely high accuracy. With the X-861, the job is easy to get started, thanks to a clear sequence of operations. The Launch X-861 3D Alignment Stand for the European market uses a version of our region. The complete stand includes the entire car database, a printer and, of course, a computer. This is a good choice for providing professional wheel alignment services. All wheel angles of passenger cars are measured and evaluated.

Measurement parameters:

• Alignment: ± 20 °
• Partial alignment: ± 20 °
• boiling point: ± 12 °
• Caster: ± 25 °
• Axial wheel displacement: ± 25 °
• Flinch Angle: ± 10 °
• Thrust Angle: ± 10 °

Technical data:

• Input voltage: 220V AC (10A)
• Input frequency: 50 ～ 60Hz
• Max. power consumption: 0.5 kW

Technical characteristics:

• 3D measurement technology makes measurement more accurate and stable
• Cameras automatically detect targets
• Equipped with a high-speed camera system
• Intelligent measurement with fully automatic lift and motion function
• No calibration is required when in use
• Informational texts describe work operations and help to understand what is being done and how
• Convenient software management and easy-to-use features

Available languages:

• English, Spanish, Russian, Polish, German, French, Italian, Portuguese, Japanese, Korean, Chinese.

Equipment:

• Side beam targets
• Column and height-adjustable beam
• Cabinet
• A set of clamps and targets
• A computer
• Printer
• Swivel plates 2 pcs.
• Brake clamp
• Steering wheel lock
