Manual powder coating line COLO L M01

Manual powder coating line COLO L M01

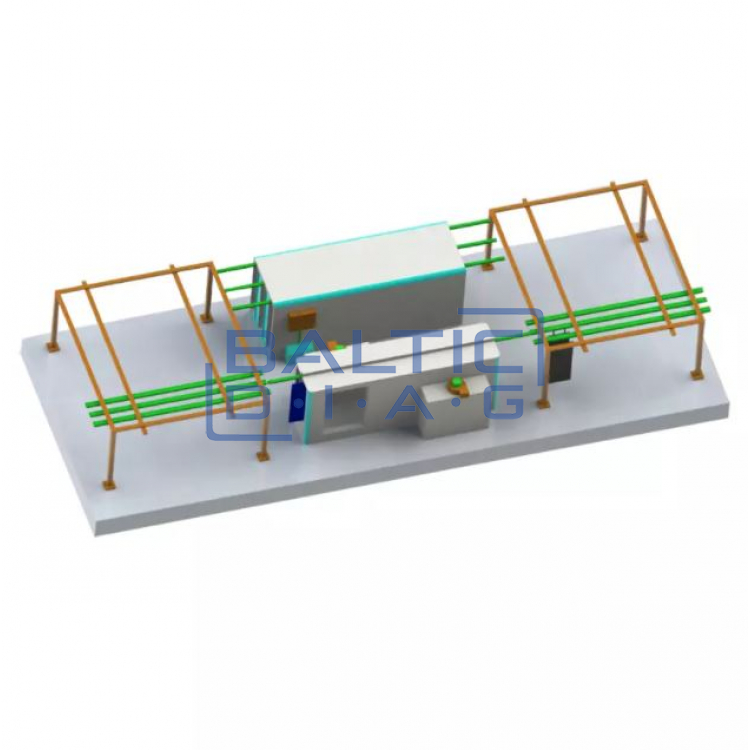

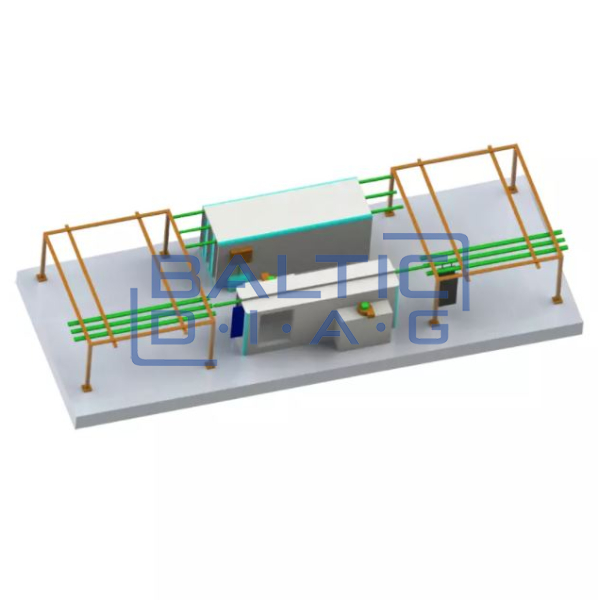

• This powder coating line is ideal for continuous batch production based on manual control with an overhead conveyor, includes a powder coating booth and curing furnace, as well as manual powder coating machines.

Powder spray gun COLO-191S

• The COLO 191S hand powder spray gun is designed for easy and efficient work.

Configurations and functions

• The digital controller allows you to precisely identify and scan data.
• The three predefined applications have flat parts, profiles, and recoating.
• 100 sq. M. hand-held sprayers ensure high transmission efficiency.
• The 60 lbs liquid powder hopper is tightly closed to prevent moisture and contamination.
• The flexible wheelchair can be moved anywhere.
• The antistatic powder hose is smooth for powder transfer.

Tunnel powder spray booth COLO-3212

• This tunnel powder coating booth has 2 workstations that allow parts to receive a coating on both sides, parts enter the booth from one entrance and the other through conveyors.

Technical data:

• Model: COLO-S-3212
• Power supply: electric
• Meals: as required
• Rated power: 4 kW
• Frequency: 50-60 Hz
• Filters: polyester
• Number of filters: 4 pcs.
• Filter suspension type: easy to change
• Filter cleaning system: pneumatic
• General dimensions: width 1200 mm, height 2033 mm, depth 3000 mm

Conveyor powder coating furnace COLO 3210

• This powder coating furnace, equipped with a conveyor designed to carry heavy materials into the furnace for continuous production, can be heated with electricity, gas or diesel if necessary.
• The circulation fan heats the hot air evenly and maintains a uniform temperature in the chamber.
• Powder coating furnaces are environmentally friendly and reduce operating costs.

Technical data:

• Power source: gas / liquefied gas / diesel
• Voltage / frequency: as required
• Burner: 100000 cal
• Warm-up time: 15-30 min. (180 ° C)
• Temperature stability: <± 3-5 ° C
• Max. temperature: 250 ° C
• Ventilation efficiency: 1131-2565 m3 / h
• Fan motor power: 1.5 kW
• Working dimension: width 1900 mm, height 2000 mm, depth 3000 mm
