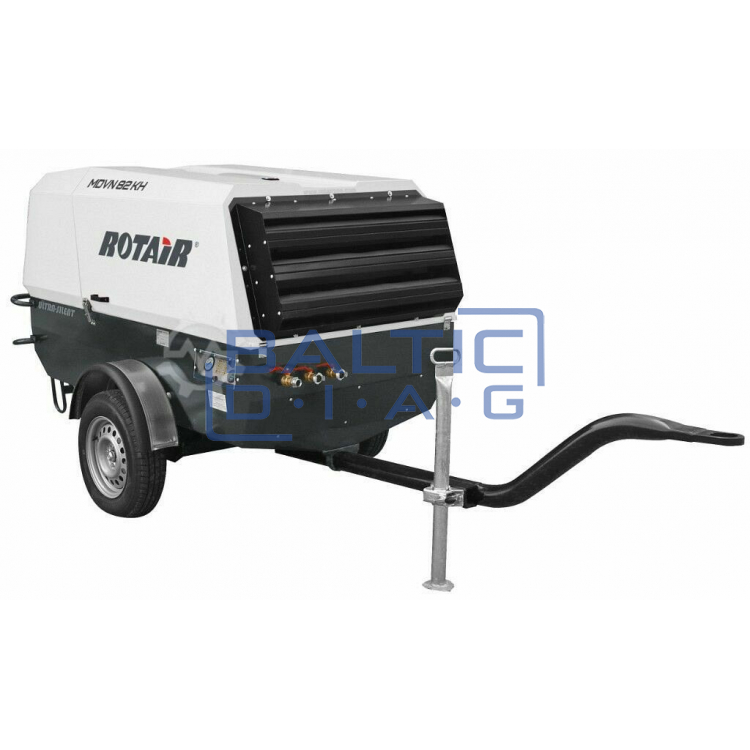

Mobile diesel air compressor Rotair MDVN 82KH

Mobile diesel air compressor Rotair MDVN 82KH

Manufacturer Rotair (Italy)

An advanced mobile compressor, it is very quiet and meets the strictest environmental standards worldwide. Each compressor type also has a specific model with integrated chiller and condensate filtration for sandblasting, fiber optic laying, and all when cool, dry air is required.

Wide pressure range with double pressure option

Compact, ergonomic, durable devices

Minimum noise level

Emissions according to the latest environmental standards

Easy access for maintenance

Manufactured in accordance with current international standards (CE, ASME, DOSH)

Control panel "No Key", one button to start the device

Low maintenance costs

The advanced system allows the engine to be preheated without overloading

Centralized control panel for easy operation

Axles of different types, with or without brakes, with lamps suitable for road use

Compressor specifications:

Operating pressure: 7 bar / 100 psi

Working capacity: 4500 lt / min / 160 cfm

Min. operating pressure: 5 bar 73 psi

Drive system air-cushion: Direct Drive

Compressor cooling: oil / air

Oil cooling capacity: 10.7 l

Emission temperature: 40 ° C - 105 ° F

Drain valves: 2 x 3/4 "

Noise level EEC no. 2000/14: <98 LWA

Battery power: 12V cc - 750A-100Ah

Fuel tank capacity: 88 l

Consumption: 6.4 l / h

Engine specifications:

Engine manufacturer: KOHLER

Engine model: KDI 1903 TCR St V

Cylinders: 4

Issue: Stage V / Tier 4 Final

Filtration: DOC + DPF

Volume: 1903 cc

Aspiration: turbocharger

Max. engine power @ 2600 RPM: 36.5 kW 49.0 HP

Max. engine speed: 2600 RPM

Min. engine speed: 1700 RPM

Cooling: Water

Cooling system capacity: 14 l

Lubrication: Oil

Oil capacity: 9.75 l

Max. operating temperature: 50 ° C-122 ° C

Compressed air temperature: -10 ° C 14 ° F

Max. altitude: 1800 m a.s.l.

Dimensions: 3213 x 1520 x 1440 mm

Weight: 960 kg (without brakes) 1020 kg (with brakes)
