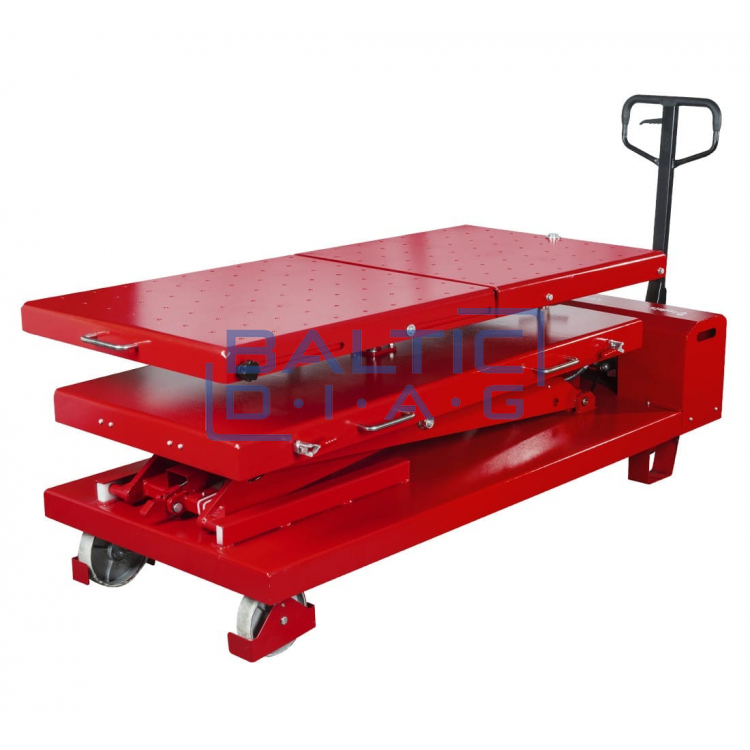

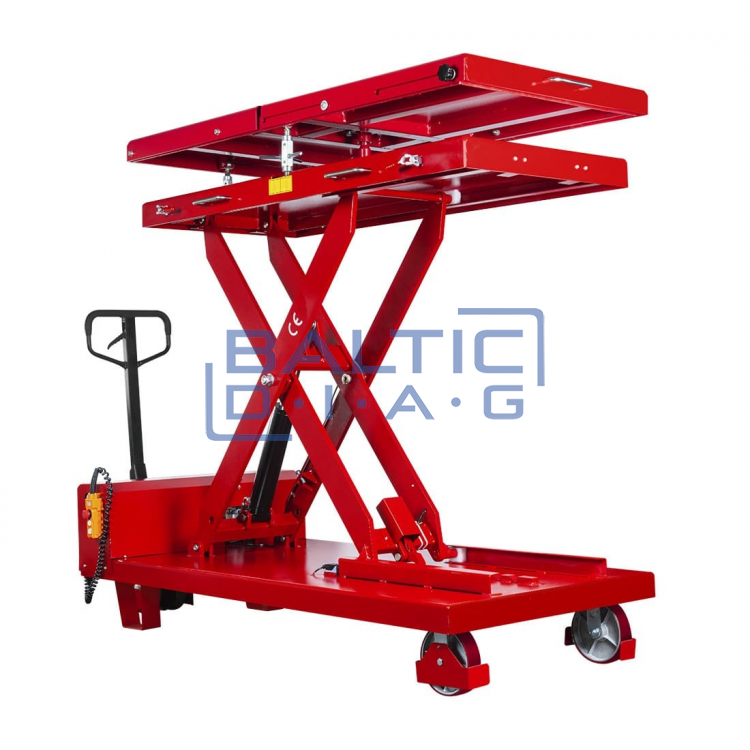

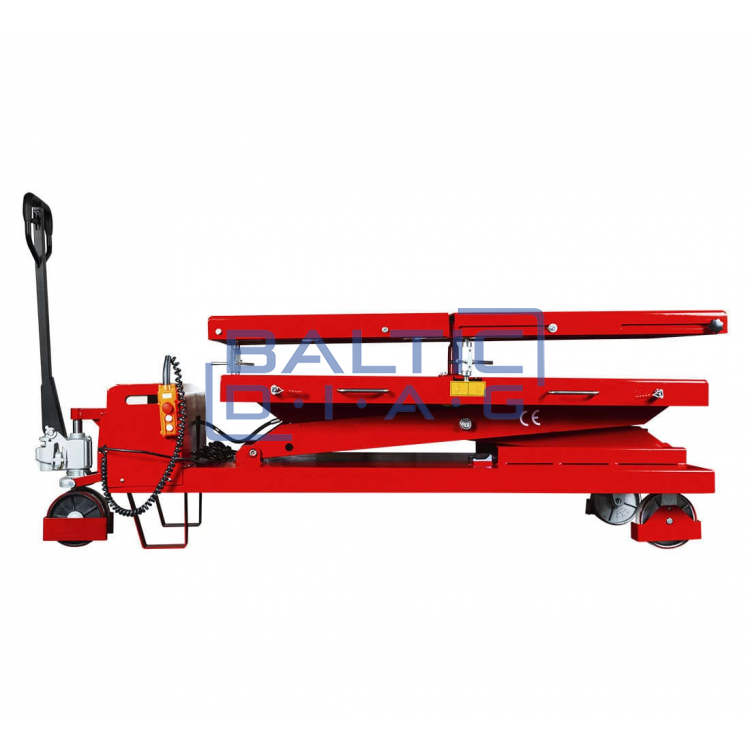

Mobile lifting table Redats LE-220 1200 kg

Mobile lifting table Redats LE-220 1200 kg

Manufacturer: Redats (Poland), warranty: 12 months

REDATS LE-220 platform hoist can lift up to 1200 kg of weight - engines, electric car batteries, gearboxes, other heavy mechanisms. The platform tabletop has M10 holes that will allow the lifting weight to be attached to the trolley. The telescopic platform can be extended up to 310 mm to adapt to specific jobs. There is a special safety feature that protects against sudden lowering. The lift truck also has a limit switch that limits the maximum lowering.

Technical data:

Max. lifting weight: 1200 kg

Mechanism: electric-hydraulic

Power: 1500 W

Weight: 720 kg

Width: 900 mm

Length: 2457 mm

Lifting/lowering time: 54 s / 58 s

Platform width: 800 mm

Platform length: 1750 mm (+310 mm)

Max. height: 1800 mm

Minimum height: 800 mm

Noise level: < 70 dB
