Multifunctional semiautomatic welding machine EasyMIG 210S

Spartus, Poland

Description:

Fast EasyMIG 210S is a modern inverter-based semiautomatic welding machine powered by IGBT transistors. Thanks to these technologies, this equipment can be electrode welded in inert (MIG) or active (MAG) gas environments, welded with coated electrodes (MMA) and welded by the TIG lift method. In addition, thanks to the integrated welding pole swapping function of the device, it is possible to weld flux coated wire without inert gas. The maximum welding current for MIG / MAG / TIG methods is 200A. MMA welding current up to 160A. The device is powered by 230V single-phase source.

The EasyMIG 210S has integrated synergistic applications for MIG / MAG welding with 0.6 / 0.8 / 1.0 mm diameter wire. There is also the option to manually adjust the settings.

Thanks to the advanced technology used in the device, the welding equipment has various different functions for the welding process:

  • 2T / 4T: option to select one of these modes (MIG / MAG)
  • Welding inductance control: bonding control and deep control (MIG / MAG), reducing seam leaks
  • Hot start: simpler electrode ignition (MMA)
  • Arc force: easier welding in difficult positions (MMA)
  • VRD: Reduces no-load voltage (MMA)

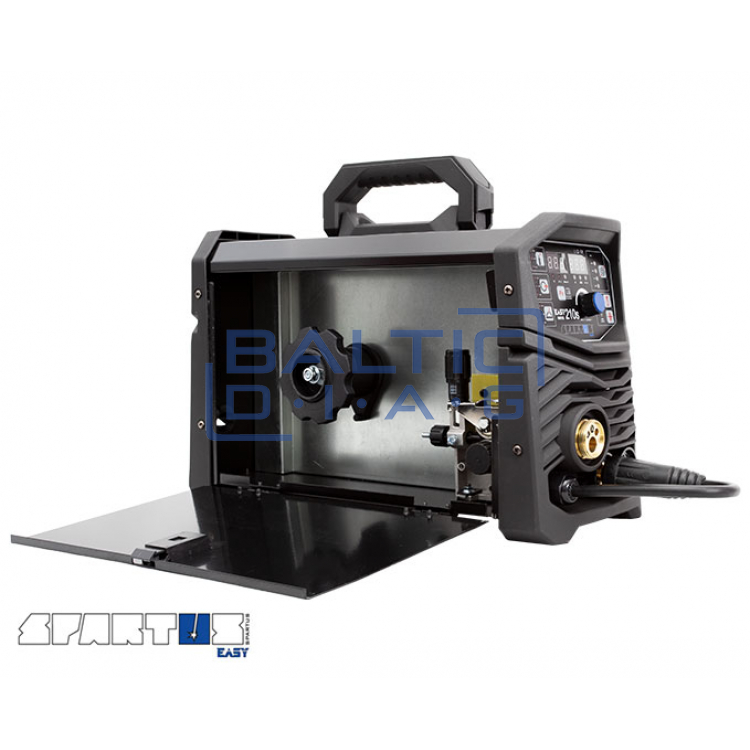

The professional double-roller feed mechanism ensures a smooth and seamless welding wire feed. Stable output parameters ensure high quality welding.

Technical parameters:
  • Power supply: 230V single phase
  • MIG welding current: 50 - 200A
  • MIG duty cycle: 30%
  • MIG operating voltage: 12.3 - 26V
  • Wire feed speed: 2 - 12.5 m / min
  • Wire feed: integrated, two roller drive
  • Wire coil support: <= 5 kg, 200 mm diameter
  • Wire diameters: 0.6 / 0.8 / 1.0 mm
  • 2T / 4T switch: available
  • Inductance Management: Yes
  • Wire Testing: Yes
  • Synergic mode: available
  • Manual Synergy Adjustment: Yes
  • MIG / MAG polarization reversal: available
  • TIG digestion mode: available
  • TIG welding current: 10 - 200A
  • TIG duty cycle: 30%
  • MMA welding mode: available
  • MMA welding current: 10 - 160A
  • Hot start: available
  • Arc Power Adjustment: Yes
  • OHIM: available
  • MMA duty cycle: 60%
  • Maximum current consumption: 37A
  • Power factor: 0.76
  • Insulation class: H
  • Protection class: IP21S
  • Weight: 9 kg
  • Dimensions: 470 x 190 x 300 mm
  • Fuse: 25A
Scope of delivery:

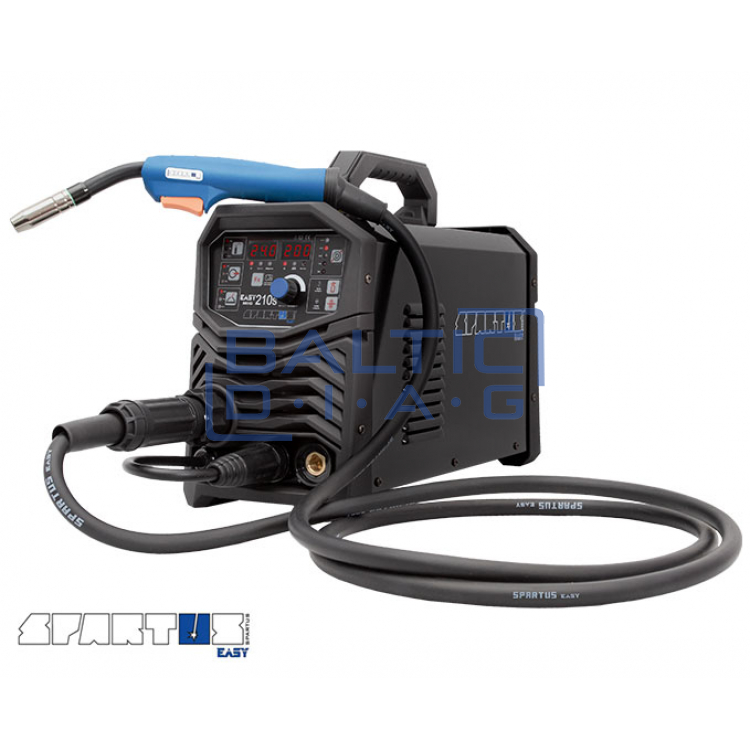

  • MIG gun SPARTUS® SPE 150 3 m,
  • Electrode holder
  • Work clip
  • Gas hose with strips
  • User manual
