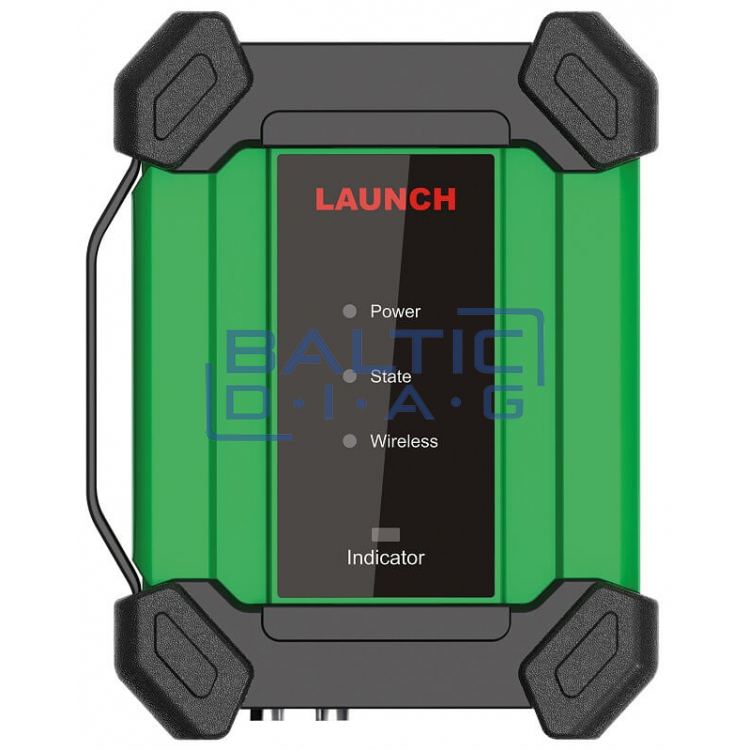

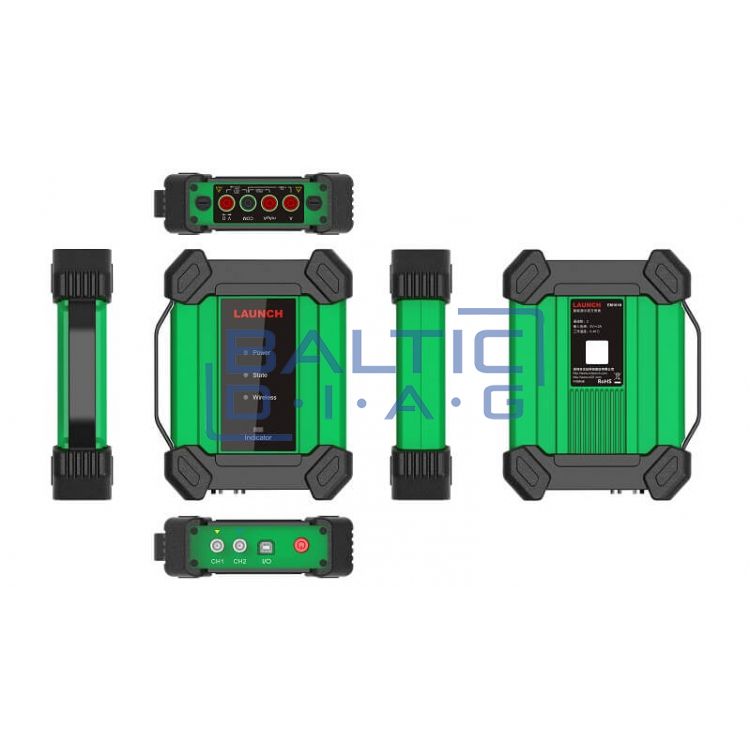

Oscilloscope and multimeter for electric vehicles Launch EM101N EV

Oscilloscope and multimeter for electric vehicles Launch EM101N EV

Features:

• 2-channel oscilloscope with multimeter function
• Brand-new diagnostic APP with friendly interface, convenient and easy use, which supports local saving and opening of waveforms.
• Supports both wired connection and wireless connection with supported X-431 diagnostic tools. The brand-new UI style design supports three display modes, which can be freely selected and switched at will.
• Rich accessories, pricker sets, multimeter pens, crocodile clips, oscilloscope channel test lines, etc.
• It is equipped with a 3.1 Ah battery and can also be used wirelessly.

Parameters:

Multimeter:

• DC voltage: automatic limit setting, limits +- 600V
• AC voltage: automatic limit setting, limits +- 600V
• DC electric current: automatic limit setting, limits +- 10A. (If there is a need to measure a higher electric current, it is necessary to connect an additional accessory)
• AC electric current: automatic limit setting, limits +- 10A. (If there is a need to measure a higher electric current, it is necessary to connect an additional accessory)
• Impedance: automatic limit setting, limits 0 ~ 6MΩ
• On/off: Tweet when resistance is lower than 30Ω
• Diode: 0.5V – 2.0V

Oscilloscope:

• Number of channels: 2 analog channels
• Real-time testing frequency: 50 MHz/s
• Time steps: 1 us/div ~ 10 s/div, in steps of 1 ~ 2 ~ 5 times
• Test modes: normal, peak setting, average
• Memory size: 1M
• Input connection: DC, AC, ground
• Input resistance: 1 MΩ ±2% in parallel with 15pF ± 5pF
• Vertical sensitivity: 2mV/div ~ 5V/div
• Vertical resolution: 8 bits
• Maximum input voltage: 40V (AC+DC peak values)
• Probe attenuation factor: 1x; 10x; 100x
• Excitation types: threshold, pulse width excitation
• Excitation mode: automatic, normal, individual
• Automatic measurements: peak values, average value, maximum value, minimum value, highest value, lowest value, frequency and period
