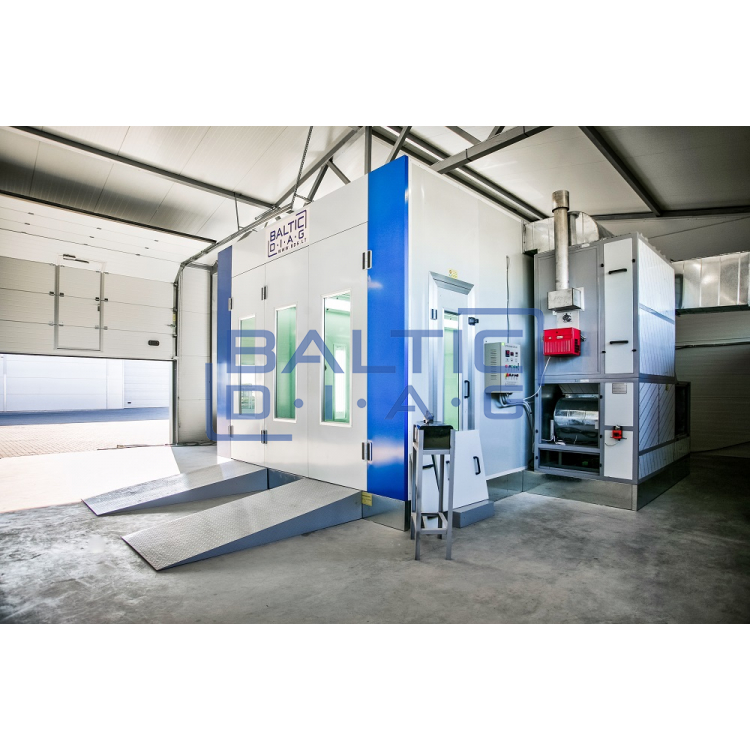

Painting chamber BD-6400 (with activated carbon filtration system)

Painting chamber BD-6400 (with activated carbon filtration system)

From now on, we can offer the most popular painting camera in Lithuania with all environmental protection standards, which you can install and operate even in the centers of big cities. The popular car painting camera BD-6400, which is already equipped with an activated carbon filtration system. This paint booth is designed for those who operate in cities and are close to residential buildings. This possibility is provided not only by the activated carbon filtration system, but also by the fact that pocket filters are additionally installed.

Advantages of a painting chamber with an activated carbon filtration system:

• The car paint camera can be installed in cities and near residential buildings
• Low maintenance costs, low price per kg, carbon filters are changed every 6-12 months. period
• A more sustainable business that cares about the environment
• Chemical compounds released to the outside are retained, and no odor remains

Technical parameters:

Basic data:

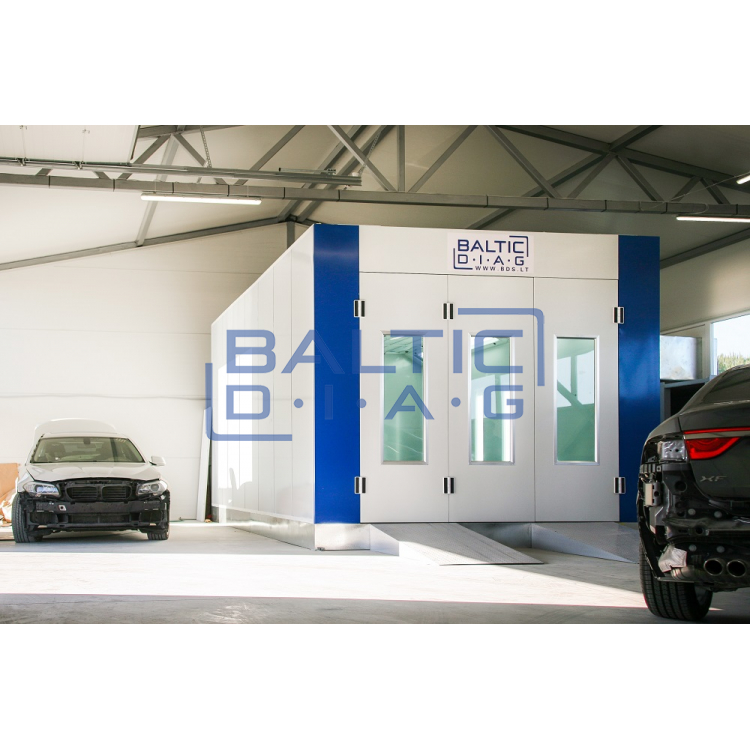

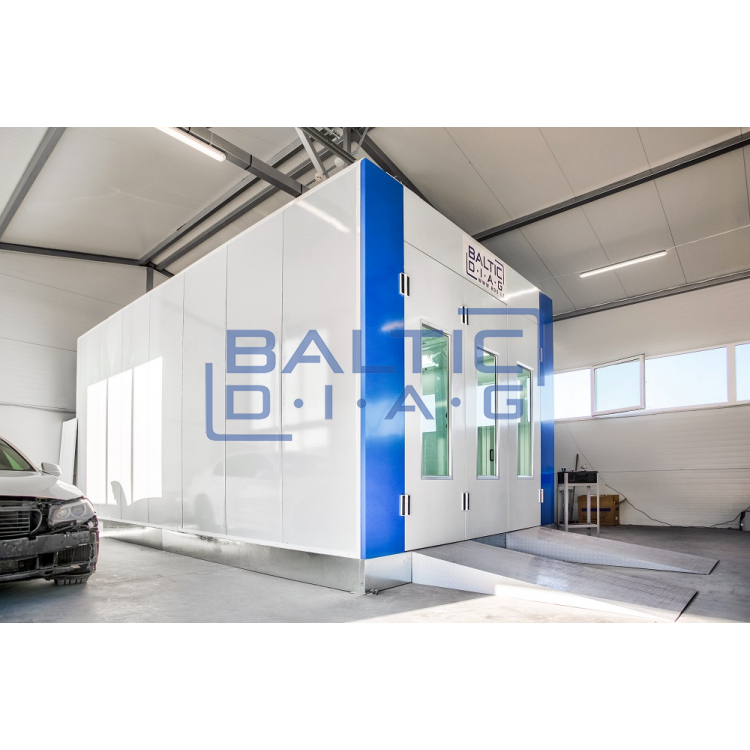

External dimensions: 7000 x 5200 x 3500 mm

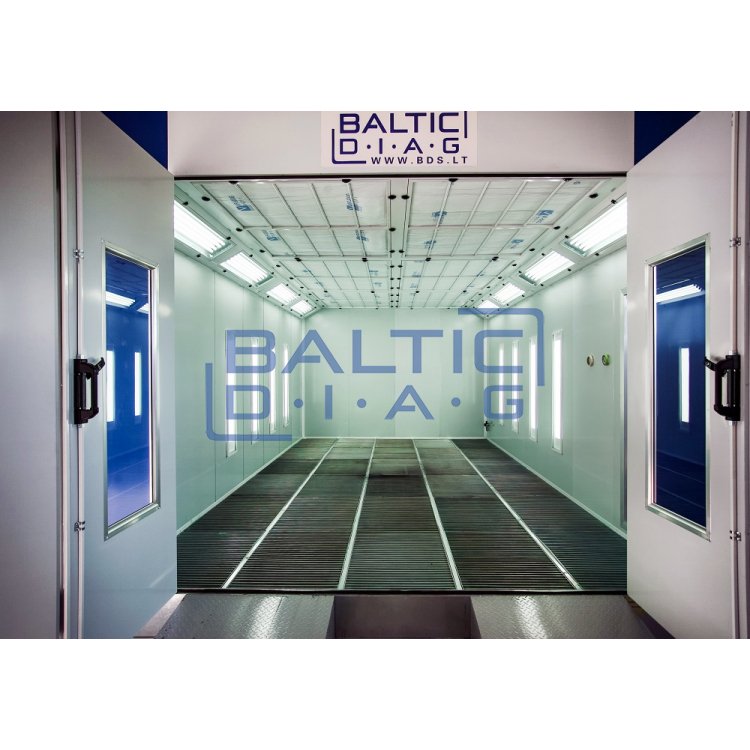

Internal dimensions: 6900 x 3900 x 2800 mm

Main door: 3000 x 2705 mm (with handle)

Staff door: 650 x 2000 mm (with handle)

Control unit dimensions: 500 x 200 x 600 mm

Access ramps: 2000 x 620 mm

Chimney dimensions: 275 x 250 x 300 mm

Total power: 15.5 kW; 380V/50Hz

Walls and ceilings:

50 mm thick EPS foam insulation between steel plates

Available in 70 mm EPS foam insulation or stone wool insulation on request

Floors:

Metal base (galvanized), with two rows of filter trays and ramps

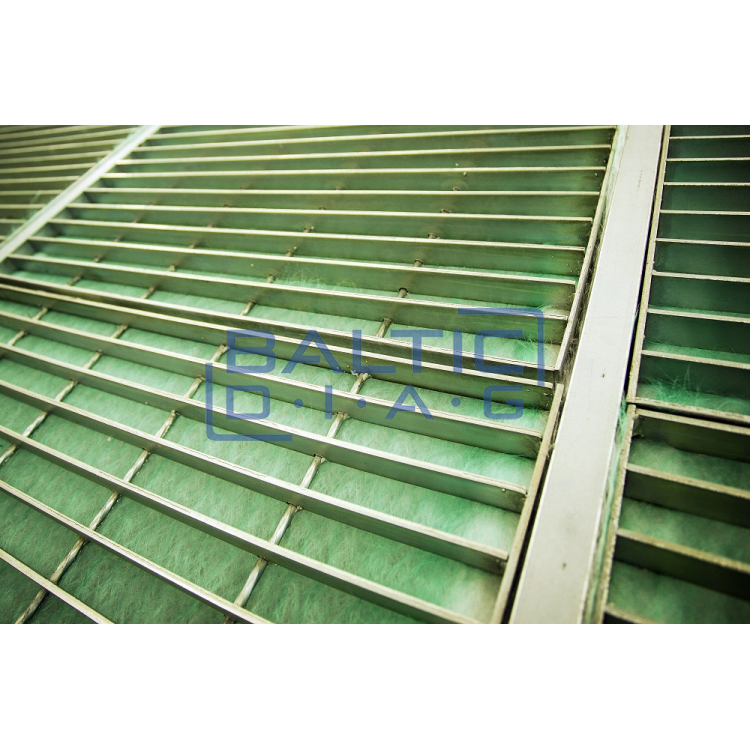

Two rows of galvanized gratings or fully slatted floors (Price does not change)

Heating system:

Gas heating system, burner: Riello FS20

Gas consumption: 8.2 - 23.5 m3 / h

Heat exchanger (stainless steel), 1 pc.

Reaching operating temperature of 50 ~ 80 ° C in 5-10 minutes. Ventilation

Filtration system:

Main filter, 1 pc. > 83%

Air inlet filter, 1 pc. > 97%

Air exhaust filter, 1 pc. > 70%

The filtration system can be through the bottom of the chamber, recessed into a pit or on a floor with ramps for access to the chamber (standard version), can be filtered through 3 chamber walls, placed on the floor (costs a little more) and can be filtered through 1 chamber side ( costs cheaper).

The fastest filtration is through the floor of the chamber, slightly slower through the sides of the chamber, and slowest through one side.

Air system:

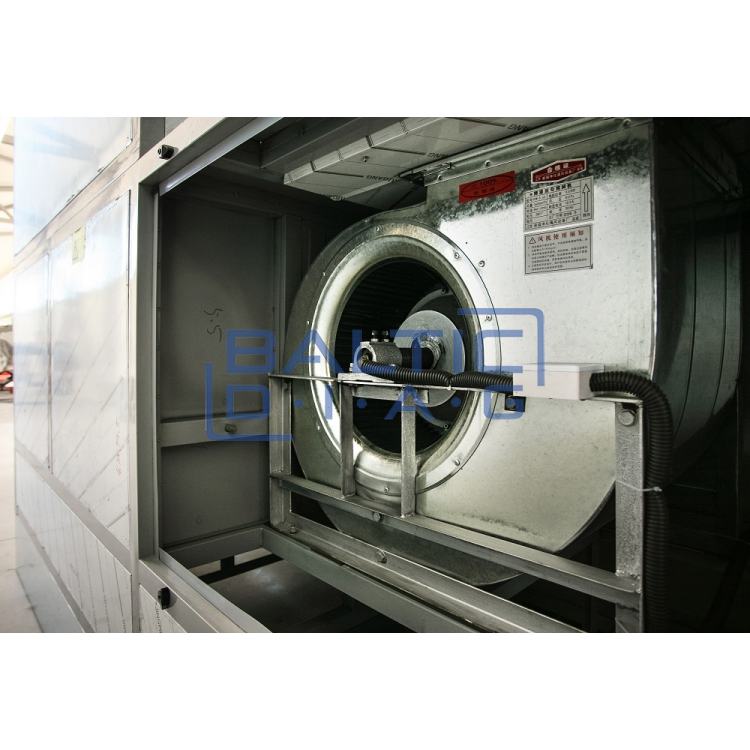

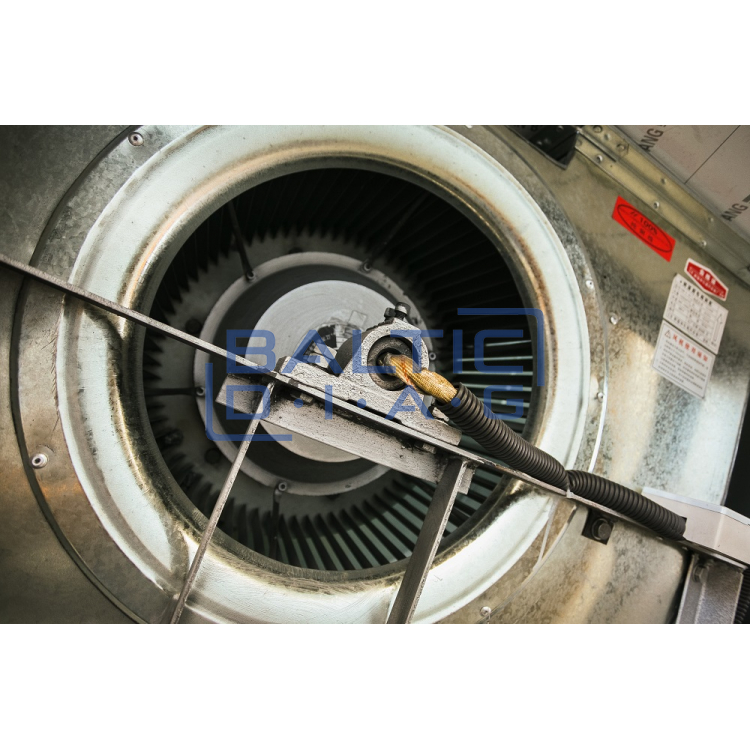

Air intake fans, 2 pcs., Centrifugal with 4 kW motors, capacity: 24000 m3 / h

Exhaust fan, 1 unit, centrifugal with 5.5 kW motor, capacity 18000 m3 / h

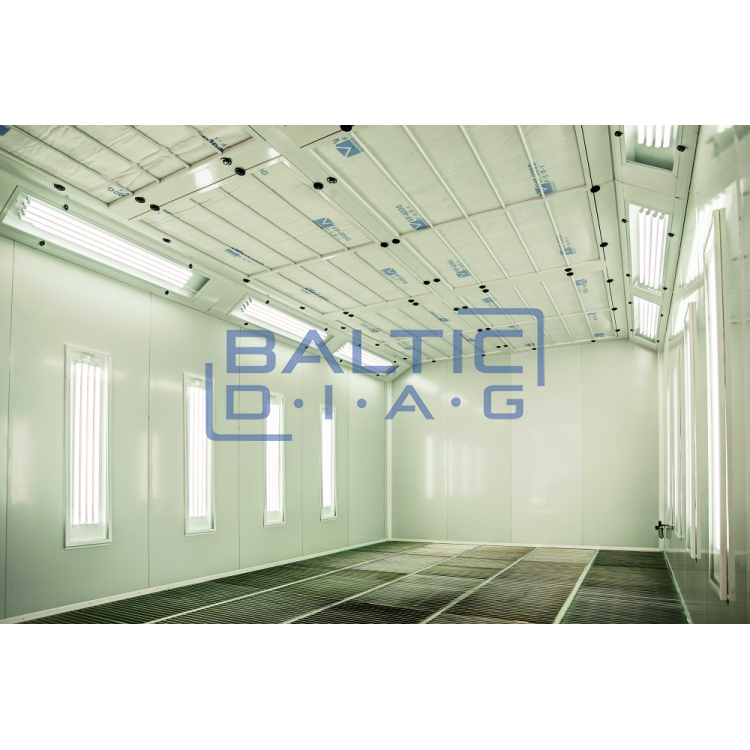

Lighting:

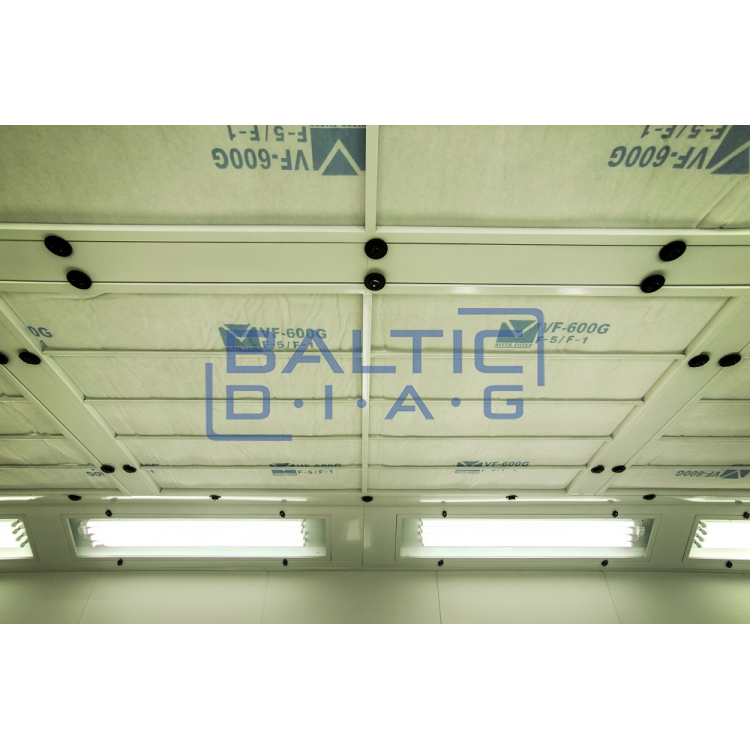

Ceiling lamps, 32 pcs. After 16 W, LED

Side lamps, 32 pcs., 16 W, LED

Control panel:

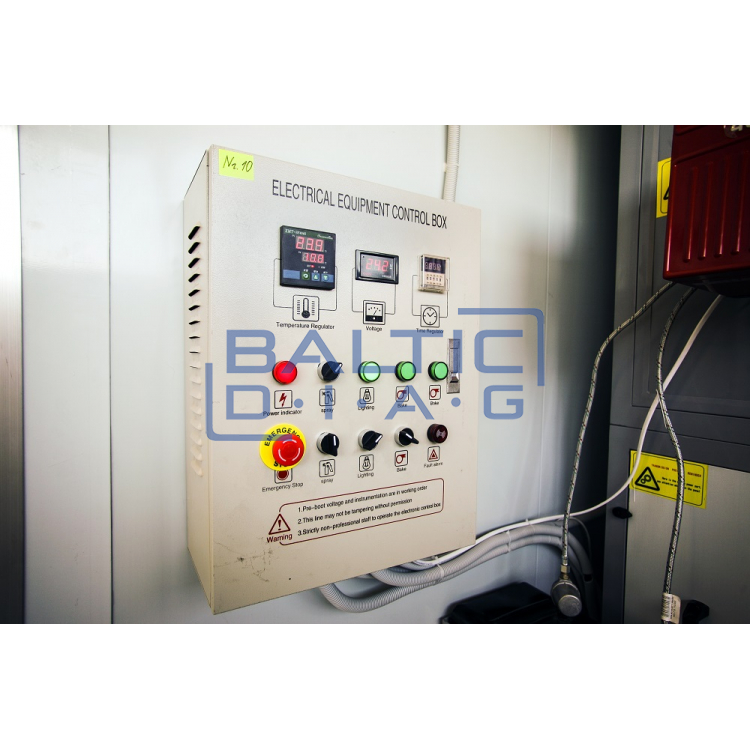

1 pc., Spray switch, heating switch, light switch, emergency stop, etc.

Electronics CHINA DELIXI production (CHINA DELIXI - a French capital company working with Schneider electric.)

Included:

All equipment, fasteners, sealing means, CE certificate
