Painting chamber FAM IRON

Painting chamber FAM IRON

FAM SRL, Italy; Warranty: 12 months

Description:

This painting camera is professional equipment for painting experts looking for high quality but also on a limited budget.

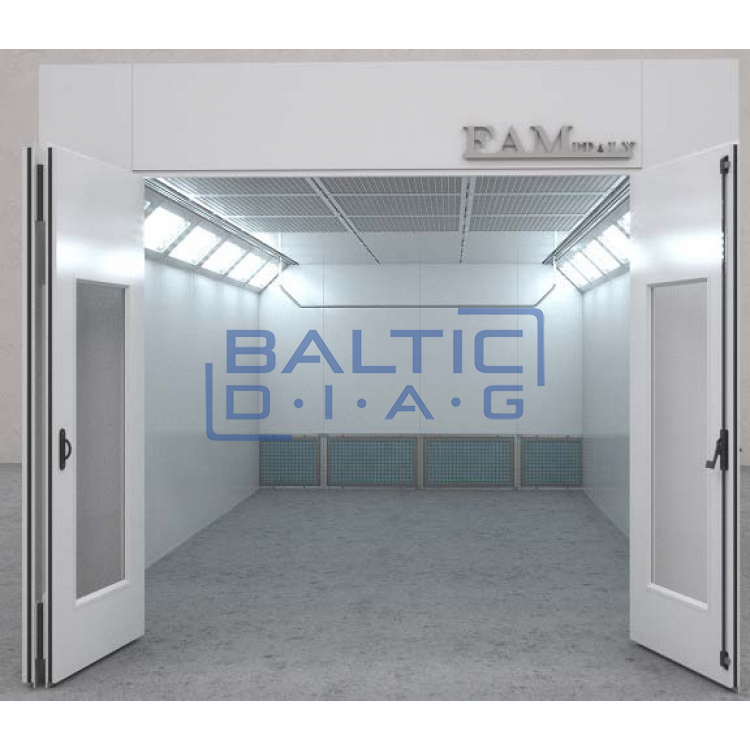

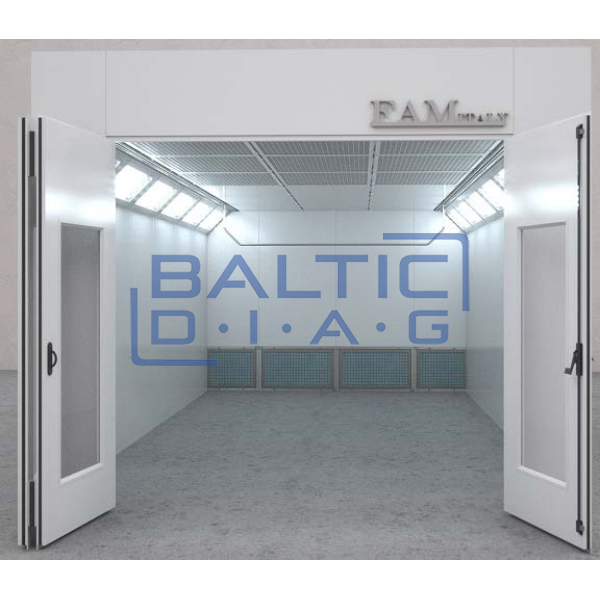

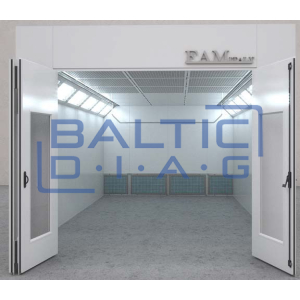

This car paint chamber is mounted directly on the pavement and does not require any excavation work due to air extraction. Air extraction is performed through a filtration system in the rear wall. The equipment has an air intake and exhaust fan and an electromechanical control unit. Air circulation is performed through a partial section of the ceiling (front side of the ceiling) and is extracted through the rear wall. Ducts are not equipped with a painting chamber. Their price can be calculated separately, knowing the exact dimensions and distances of the required ducts.

The main door is made of double-layer painted sheet metal with insulation. The door sections are articulated and have large safety windows and side locks. One door can be used as a service door. Each door section has strong galvanized and painted hinges and a set of gaskets to be installed between the door gaps.

Additional service doors are made of double-painted sheet metal with insulation.

The front and side walls are made of galvanized sheet metal painted white on the inside and outside.

The ceiling is made up half of a ventilation grille through which air is supplied and of white metal plates.

The lighting is arranged diagonally across the length of the camera on both sides.

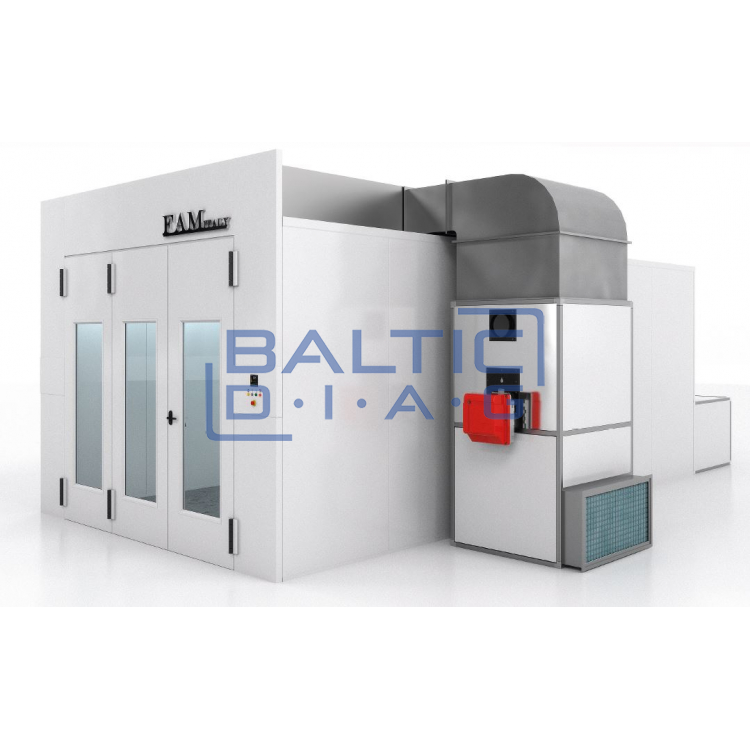

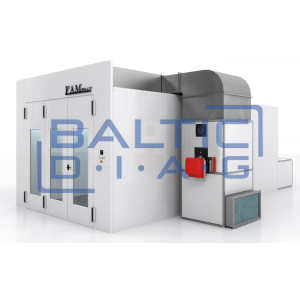

The air supply unit consists of a metal construction with stone wool insulation. This construction consists of three parts:

Ventilation unit: double-draft centrifugal fan on a special support. Three-phase asynchronous motor

Filter unit: consists of a set of pre-filters

Heating unit: located above the ventilation unit. An AISI 430 stainless steel heat exchanger with a diesel burner is installed here. The safety thermostat checks that the maximum permissible temperature has not been reached.

Safety devices: safety thermostat, burner pressure sensor; min. is max. pressure switches

The description provided is a general description of a standard camera. The equipment can be manufactured according to the desired dimensions, parameters and configuration requirements. For a quote for specific equipment, please contact the contact details provided.

Technical parameters:

External dimensions: 8580 x 4120 x 3400 mm (Length x Width x Height)

Internal Dimensions: 7200 x 4000 x 2800 mm (Length x Width x Height)

Main door: 3000 x 2750 x 60 mm (Width x Height x Thickness)

Service door: 900 x 2100 x 60 mm (Width x Height x Thickness)

Chamber walls: polyurethane foam, sandwich type; thickness: 50 mm

Lighting: 12 pcs. 4 luminaires (6 + 6) each. neon 30W lamps; voltage: 240V

Suction fan power: 7.5 kW; 20,000 m3 / h

Exhaust fan power: 7.5 kW; 20,000 m3 / h

Burner: Riello two-stage burner; power: 210 kw; 180000 Kcal / h

Extraction wall: 4000 x 800 mm (Length x Height)

Power supply: 400V / 3 phases / 50Hz
