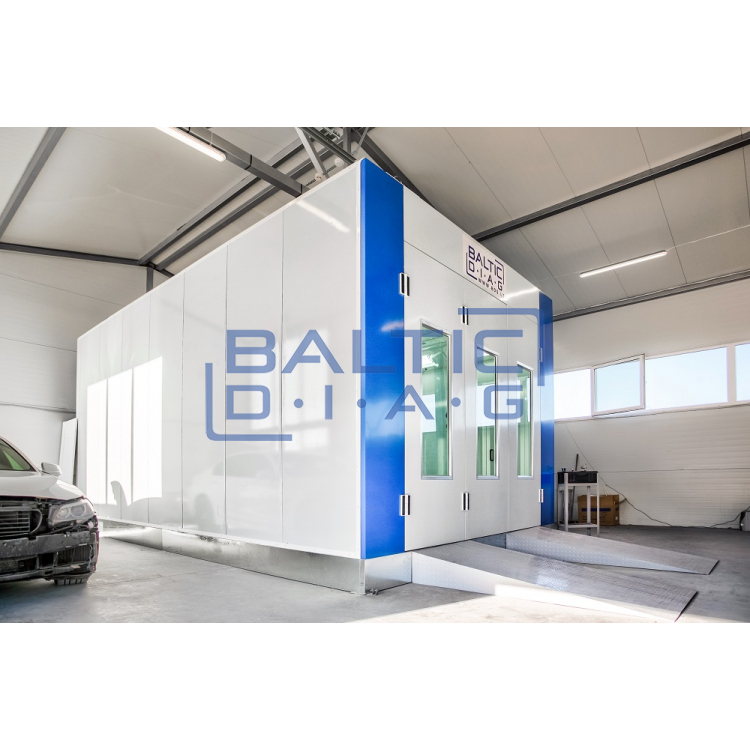

Painting chamber with gas heating BD-6400-G

Painting chamber with gas heating BD-6400-G

Technical parameters:

Model: BD-6400-G

Basic data:

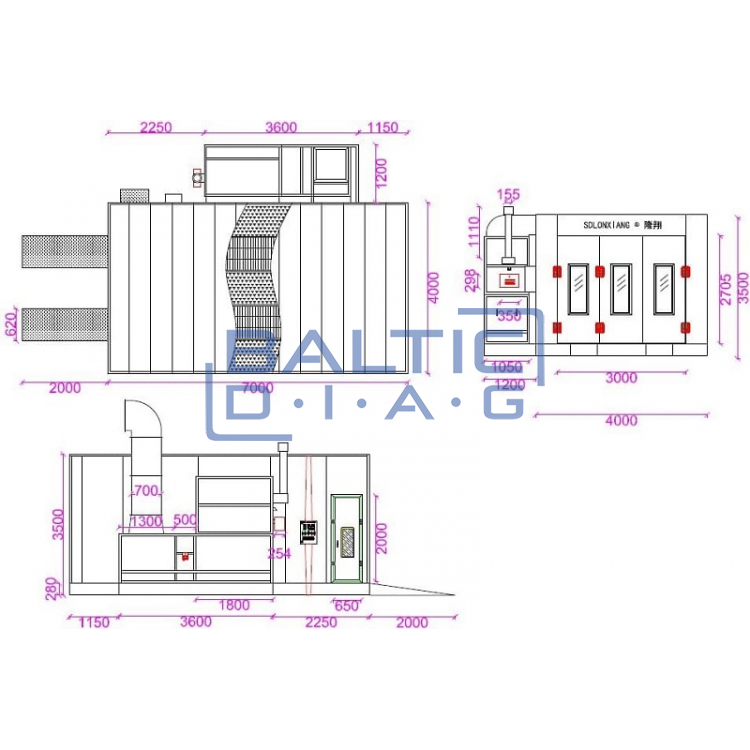

• External dimensions: 7000 x 5200 x 3500 mm
• Internal dimensions: 6900 x 3900 x 2800 mm
• Main door: 3000 x 2700 mm (with handle)
• Staff door: 650 x 2000 mm (with handle)
• Total power: 15.5 kW; 380V / 50Hz

Walls and ceilings:

• 50 mm thick EPS foam insulation between steel plates
• Available in 70 mm EPS foam insulation or stone wool insulation on request

Floors:

• Metal base (galvanized), with five rows of filter trays and ramps
• Five rows of galvanized gratings or fully slatted floors (Price does not change)

Heating system:

• Gas heating system, burner: Riello FS20
• Burner power: 200000 kcal/h
• Gas consumption: 8.2 - 23.5 m3 / h
• Heat exchanger (stainless steel), 1 pc.
• Reaching operating temperature of 50 ~ 80 ° C in 5-10 minutes. Ventilation

Filtration system:

• Main filter, 1 pc. > 83%
• Air inlet filter, 1 pc. > 97%
• Air exhaust filter, 1 pc. > 70%
• The filtration system can be through the bottom of the chamber, recessed into a pit or on a floor with ramps for access to the chamber (standard version), can be filtered through 3 chamber walls, placed on the floor (costs a little more) and can be filtered through 1 chamber side ( costs cheaper).
• The fastest filtration is through the floor of the chamber, slightly slower through the sides of the chamber, and slowest through one side.

Air system:

• Air intake fans, 2 pcs., Centrifugal with 4 kW motors, capacity: 24000 m3 / h
• Exhaust fan, 1 unit, centrifugal with 5.5 kW motor, capacity 18000 m3 / h

Lighting:

• Ceiling lamps, 32 pcs. After 16 W, LED
• Side lamps, 32 pcs., 16 W, LED

Control panel:

• 1 pc., Spray switch, heating switch, light switch, emergency stop, etc.
• Electronics CHINA DELIXI production (CHINA DELIXI - a French capital company working with Schneider electric.)

Included:

• All equipment, fasteners, sealing means, CE certificate
