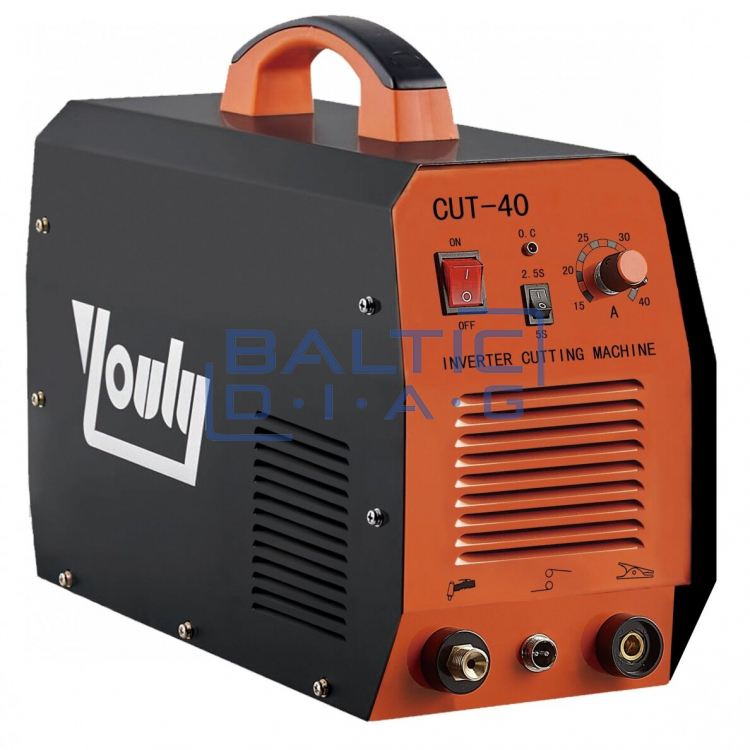

Plasma cutter MOSFET 40 A, 15 mm

Plasma cutter MOSFET 40 A, 15 mm

Technical data:

• Voltage: 230 V, 50 Hz
• Current range: 15 - 40 A
• Cutting thickness: 1-12 mm
• Idle voltage: 230 V
• Operating voltage: 96 V
• Duty cycle: 60%
• Power: 6.6 kVA (5.28 kW)
• Burner diameter: 1.0 mm
• Operating pressure: 4.5 bar
• Average air consumption: 100 L / min
• Degree of protection: IP21S
• Electrical insulation class: F
• Dimensions: 410 x 150 x 300 mm
• Weight: 9 kg
• CE conformity

The set includes:

• Power cord: 1.6 m
• Cutting torch (contact) with cable: 4 m
• Intestine
• Ground cable: 1.6 mm
• Welder's panel
• Brush and pressure regulator
