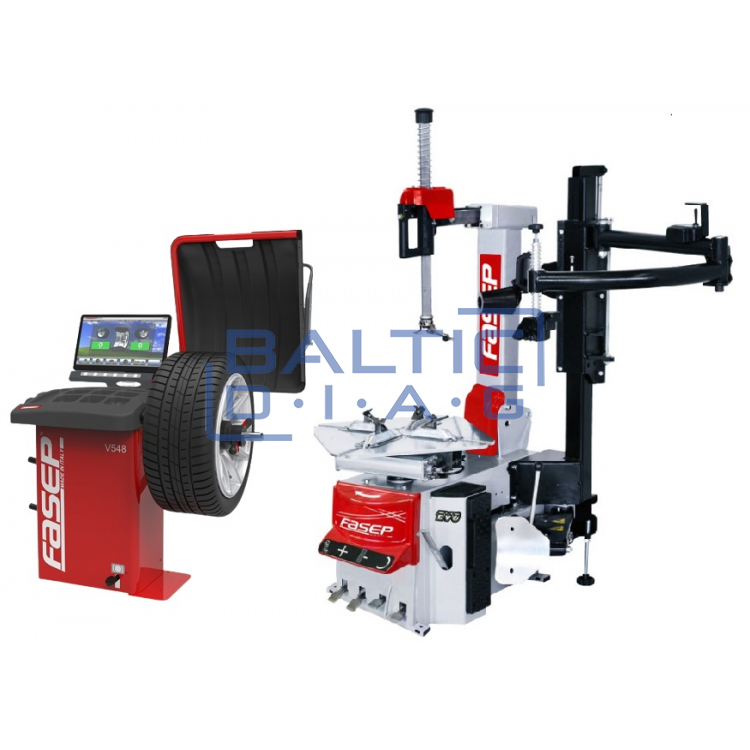

PRO wheel balancing and mounting machine Fasep V548.G4.DA + S245.001
- SKU: BD10031
6,899.00 €
Your shopping cart is empty!
PRO wheel balancing and mounting machine Fasep V548.G4.DA + S245.001
Manufacturer - Fasep; Country - Italy

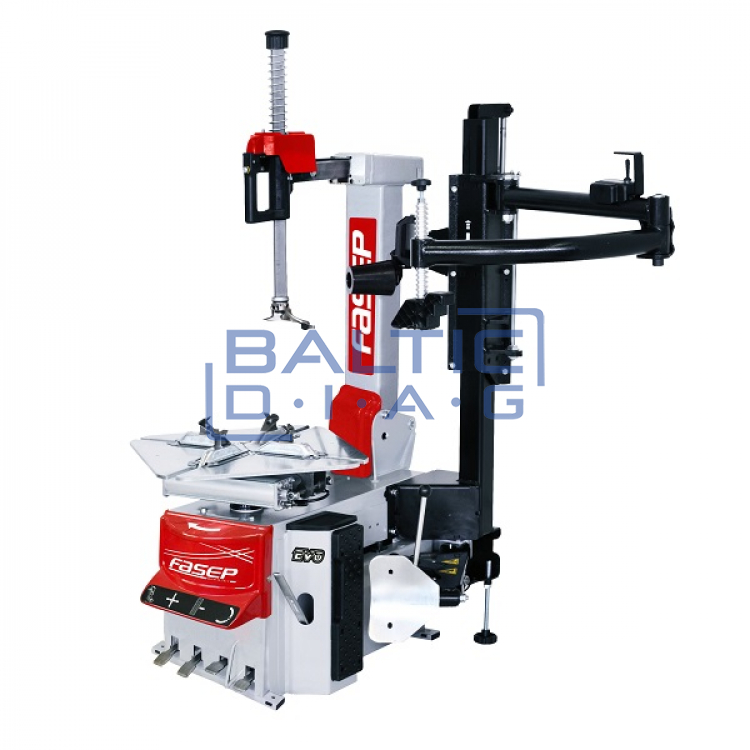

Automatic wheel mounting machine Fasep S245.001
Advantages:
24 "table
Self-centering turntable with 4 clips and 2 cylinders
Steel plate thickness 12 mm
1 speed engine
Folding column (pneumatic)
Pneumatic locking head lock
Double acting break cylinder
Traditional mounting / dismounting head
Sloping mounting post with integrated quick release
Tire inflator with pressure gauge
41 mm hex shaft
Boost pressure limiter (4 bar)
Maximum torque 1.08 kN (110 kgm)
Maximum rim diameter. 10-24 "
Maximum wheel diameter 1000 mm (39 inches)
Maximum wheel width 381 mm (15 inches)

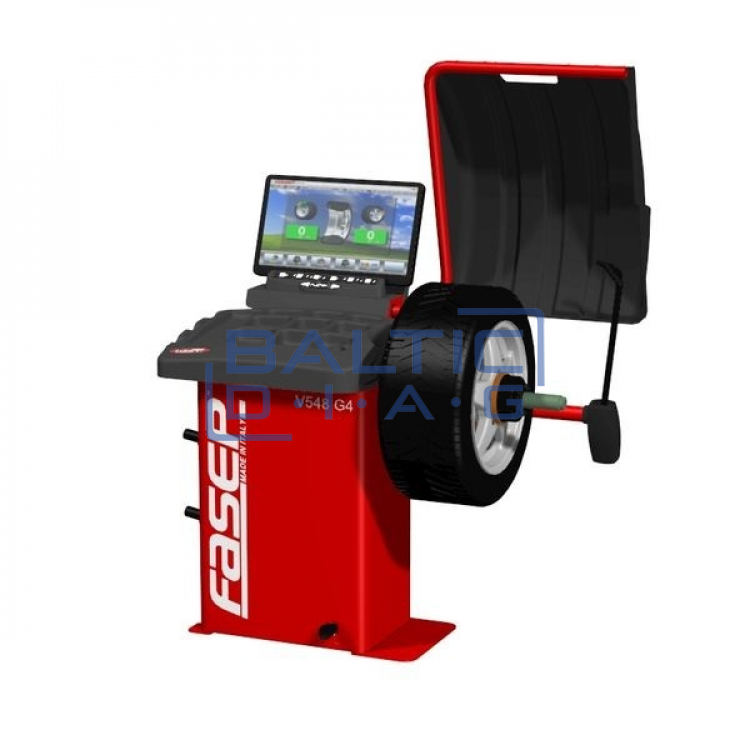

Wheel balancing machine Fasep V548.G4.DA
Technical data:
Suitable for car, SUV and minibus wheels
Automatic scanning of 3D parameters
Balancing machines with three - phase motor
Low speed: 98 rpm
19 "LCD screen
WinCE operating system
IFS Light is an integrated adapter system
TRI.S3NSOR 3 measuring system
Shaft: 40 mm
Shaft height from the floor surface: 665 mm
256-point position sensor
Wheel mounting with quick release handle
Compact dimensions
Mechanical brake pedal to stop the wheel
Automatic START / STOP button
Simple calibration process
Automatic shaft start and stop
Measurements start automatically when the protective cover is lowered
ALU program
ALU-SE / Alu-PAX program for gluing weights
MOTO program
SPLIT program
MARS program
Cones: 42-98 mm
Max. wheel weight: 75 kg
Rim diameter: 10-26 "
Max. wheel diameter: 34 "
