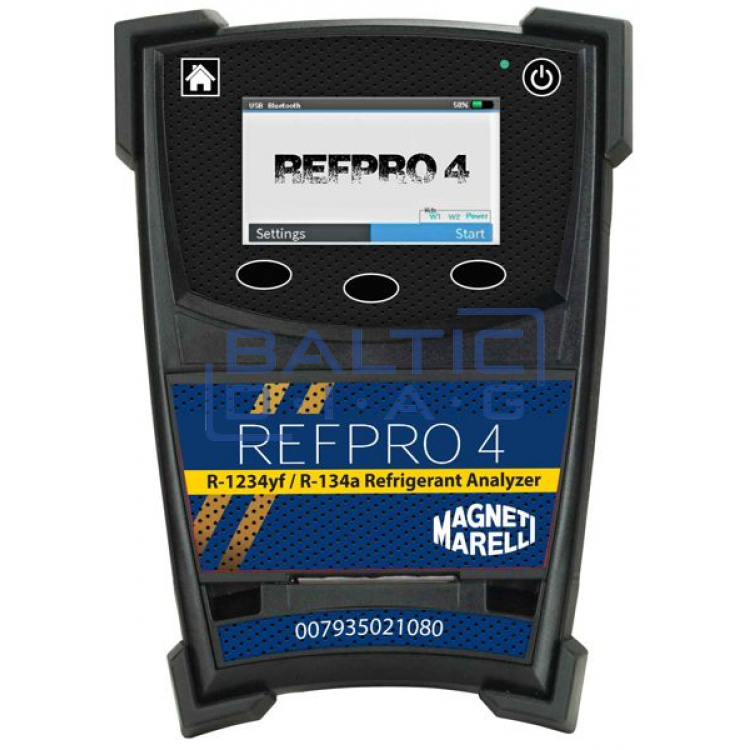

RefPro 4 Basic Factor Identifier and Analyzer (R134a, 1234yf)

Magneti Marelli RefPro 4 Basic Factor Identifier and Analyzer (R134a, 1234yf)

Magneti Marelli is proud to present the refrigerant ID and analyzer of the past, present and future. Control of R12, R134a and R1234yf vehicles with one tool. With the introduction of the new HFO-1234yf refrigerant to the automotive market, automakers around the world have set new standards for servicing automotive air conditioning systems. These standards require that the refrigerant be checked for purity before it is removed from the system.

RefPro 4 is a global tool to meet the maintenance needs of vehicles using the HFO-1234yf. Our instrument is SAE J2912 certified and connects directly to SAE J2843 and J3030 AC service devices with an external analyzer USB port.

Device features:

Suitable for vehicles with R134a, R1234yf and R12 refrigerants

There are six languages ​​to choose from

Large color screen

Internal lithium battery

Ergonomic design

Optional built-in printer

Optional Bluetooth connection

The set includes:

R1234yf and R134a low pressure adapters - R1234yf and R134a

cylinder adapters

2 pcs. R1234yf sampling hoses

2 pcs. R134a Sampling hoses

Charging adapter

Appropriate tray

Specifications:

Supported refrigerants:

R1234yf

R134a

R12

Pollution measurement:

R22

hydrocarbons,

unknown

Accuracy:

exceeds SAE J2912 requirements

Screen% - Refrigerants:

R1234yf

R134a

R22

R12

HC

unknown

oras

Ambient temperature operating range:

from 10 ° C to 49 ° C

Feed:

12 V DC at 1.5 amps

Communication protocols:

USB 2.0, Bluetooth 2.0

User interface:

5 - inch color LCD screen with

Screen buttons

Languages:

English

Spanish

French

German

Italian

Portuguese

Standards:

CE

UL

SAE J2912
