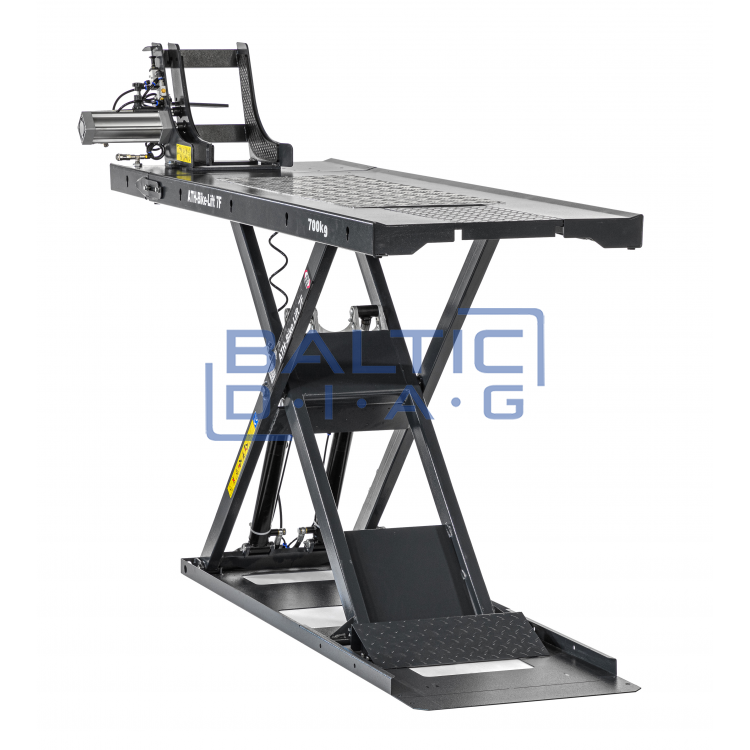

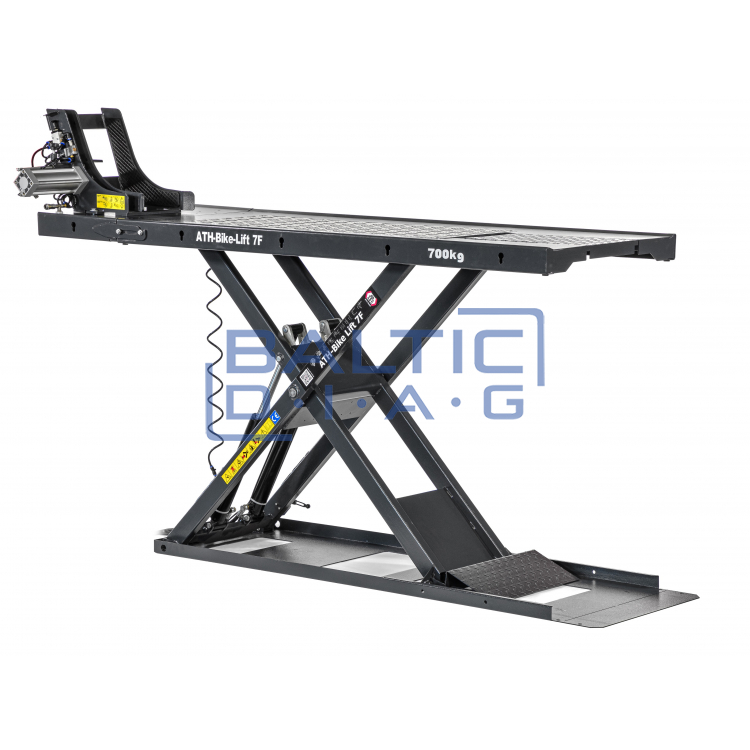

Scissor lift ATH-Bike Lift 7F

Scissor lift ATH-Bike Lift 7F

ATH, Germany; Warranty: 36 months *

Description:

- Top quality: high-quality, rugged electro-hydraulic motorcycle lift for professional service

- Long-lasting technology: low-emission and virtually maintenance-free hydraulic technology

- Convenient use: no obstacles underfoot due to ramping when the platform is raised

- Mechanical release of safety locks: lowering on locks; mechanically locking locks for load-bearing without loading the hydraulic system

- Efficient lifting: the lift immediately reaches maximum power

- No electrical stops, protective sleeve and hydraulic hoses fitted

- Small space requirements

- Safety: emergency release of the system in the event of a power failure

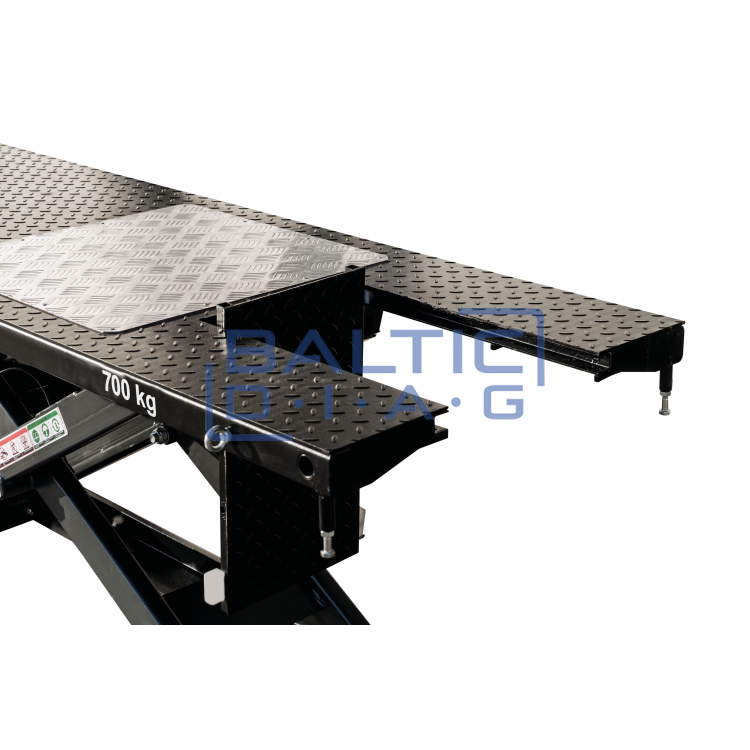

- Removable plate for free access to the rear wheel, chain or shaft

- Installed aluminum plate: specially designed for work with mini motorcycle jacks

- On request: freewheel plate; wheel caliper with swivel handle; pneumatic wheel holder; mini motorcycle lift; ATV adapter set

- Single-phase 230V power supply

Technical parameters:

- Lifting capacity: 700 kg

- Lifting height: 150 - 1200 mm

- Width: 730 mm

- Engine power: 2.2 kW

- Packaging dimensions: 2250 x 730 x 280 mm

- Lifting / lowering time: 15 sec.

- Depth of the pit for floor mounting: 100 mm

- Required concrete strength: C20 / 25

- Weight: 275 kg

- Oil content: 6L

- Fuse: 3C16A

* For service equipment longer than 12 months. warranty period mandatory annual inspection. Missing the inspection period reduces the equipment warranty to a regular 12-month warranty. termino.
