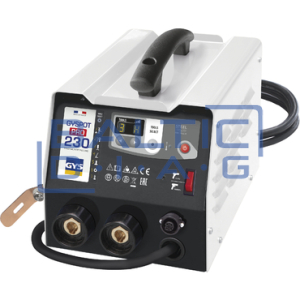

Sheet metal deformation straightening device GYS gyspot pro 230

Sheet metal deformation straightening device GYS gyspot pro 230

GYS, France; Warranty: 24 months

Description:

With a maximum output current of 3800 A, the GYSPOT pro 230 point body straightener is the ideal tool for straightening thin car body parts (hood, doors, roof). This body repair device is multifunctional and therefore complete. Thanks to the low power consumption, a 230V source is enough for the device. Extremely convenient thanks to two pistols, one automatic, one controlled trigger, and a convenient control panel.

• It is enough to select two parameters: output power (from 11 levels); the tool used (out of 7 tools), there is no need to select the welding current and welding time.
• Manual control: welding is performed by pressing the trigger when the tool touches the workpiece.
• Automatic control: welding is performed automatically by touching the tool to the workpiece.

Technical parameters:

• Power supply: 230V, 50 / 60Hz, 1 phase (400V version available gyspot pro 400V, code: 052185)
• Fuse: 16A
• Average current: 2800 A
• Maximum current: 3800 A
• Voltage: 7.4 V
• Dimensions: 225 x 360 x 235 mm
• Weight: 25.5 kg

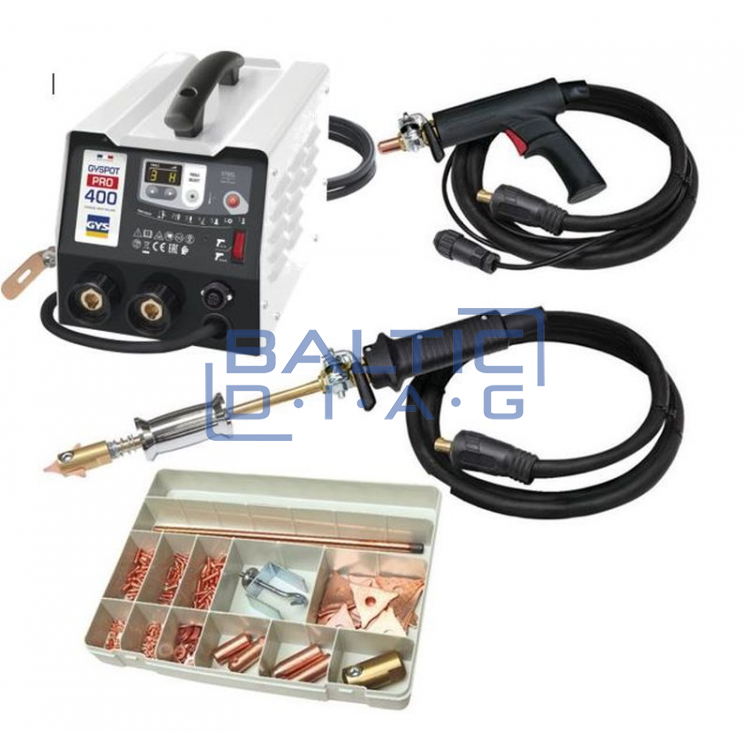

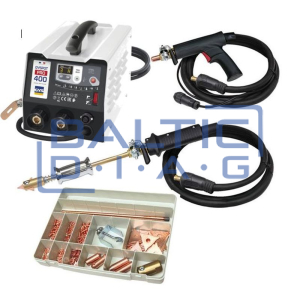

Equipment:

• Ground cable, 70 mm2, 2 meters long
• 2 pcs. Multifunction pistols (2 m long, 70 mm2 cable with connectors): inertial hammer, star alignment; welding of studs, rivets and rings; contact contraction; graphite pencil.
• 8 meter power cable
• Accessory box

A wide selection of accessories is available upon request. Available accessories can be found on the manufacturer's page: http://gys.fr/prods-K966/STEEL_DENT_PULLING_CONSUMABLES_K966/en
