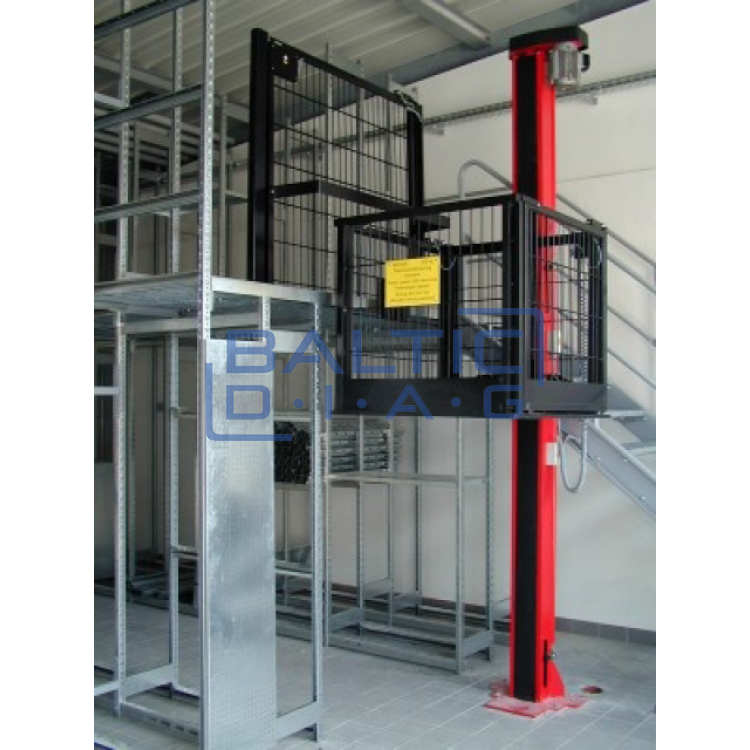

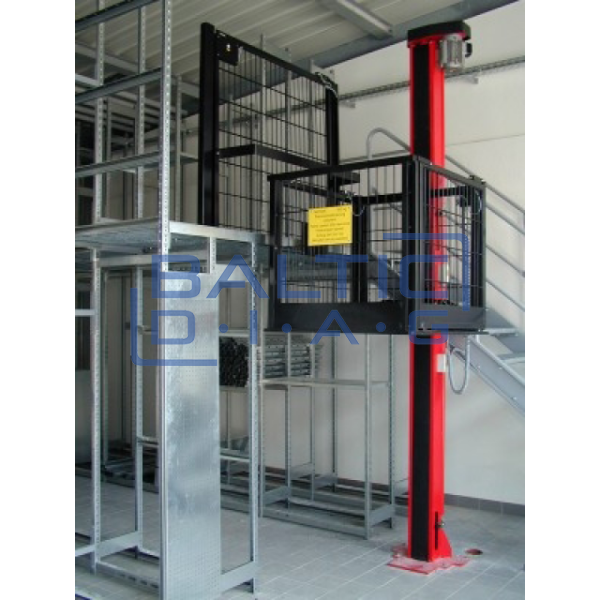

Single column tire lift CONSUL 1.05 KTH 3.500

Single column tire lift CONSUL 1.05 KTH 3.500

Manufacturer: Consul, Germany; Warranty: 2 years

Item description:

• The lift is designed for lifting stocks to the storage shelf.
• The lift platform has four safety fences.
• Has a locking mechanism for safe use.

Technical data:

• The column is specially rolled, the platform is controlled by 6 rollers
• Bronze safety nut
• Has an oil bottle to support lubrication
• The lift has a limiter
• The lift is controlled by a button
• Lockable with main switch (as required by CE)
• The platform has acoustic foot protection
• Belt motor with thermal protection
• Full facade covering
• The platform gates can open from different sides
• Various fasteners can be installed according to the customer's needs
• The lift must be attached to at least one wall
• Not suitable for permanent work (ED100%)
• Protection class IP 54, approved by GS, DIN EN 1493, approved by CE
• Capacity: 500 kg
• Lifting speed: 0.06 m / s
• Lifting height: 3,500 mm
• Engine data S3 10% ED
• Power: 3.0 kW
• Power supply: 400/50 V / Hz
• Fuse protection: 16
