-15 %

SKAMET pit lifts

Name: SKAMET pit lifts
Brand: BALTIC DIAG
Price: 1331.00 EUR
Availability: InStock

1,331.00 €

1,573.00 €

Prices shown include tax

Manufacturer: Skamet, Poland

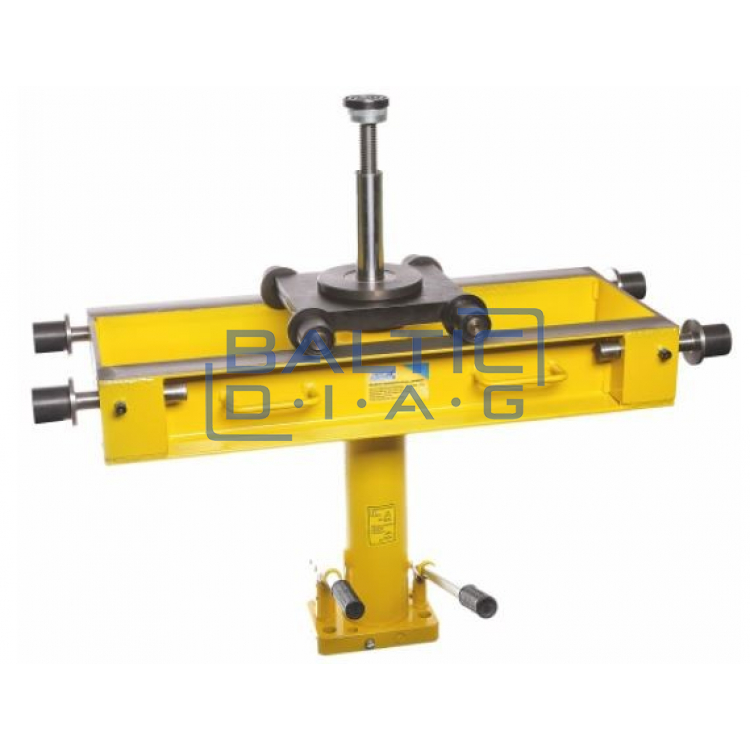

Manual hydraulic lift for partial lifting of the car. It is used for maintenance and repair work in car repair shops, as well as for chassis diagnostic and control functions.
The lift is equipped with two pumps. The pump on the left side of the cylinder with a piston with a diameter of Ø 20 mm is used to bring the piston closer to the lifting object.
Manual cylinder lifting allows you to use it in any workshop. The lift has all the documents required for vehicle service stations.
The simple models are straight and the SD models are injected into the pit.

TECHNICAL DATA OF THE PIT HOIST
Model	Lifting capacity	s	h	H	A	B	Weight	Price with VAT
	t	mm	mm	mm	mm	mm	kg
w-8200 Item code: BD21710	3,5	470	120	485	218	480	85	1331€
w-8200/SD Item code: BD21711	3,5	470	55	535	218	480	92	1452€
w-8210 Item code: BD21712	6	470	120	485	218	480	89	1513€
w-8210/SD Item code: BD21713	6	470	55	535	218	480	96	1634€
w-8220 Item code: BD21714	16	650	240	590	230	535	125	2420€
w-8220/SD Item code: BD21715	16	650	50	645	230	535	160	2550€
w-8230/SD Item code: BD21716	20	650	65	803	230	535	210	3146€
w-8235/SD Item code: BD21717	25	650	90	798	230	535	245	3630€
w-8236/SD Item code: BD21718	30	650	90	798	230	535	255	3992€
