TIG welding machine with controlled torch 200A

TIG welding machine with controlled torch 200A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

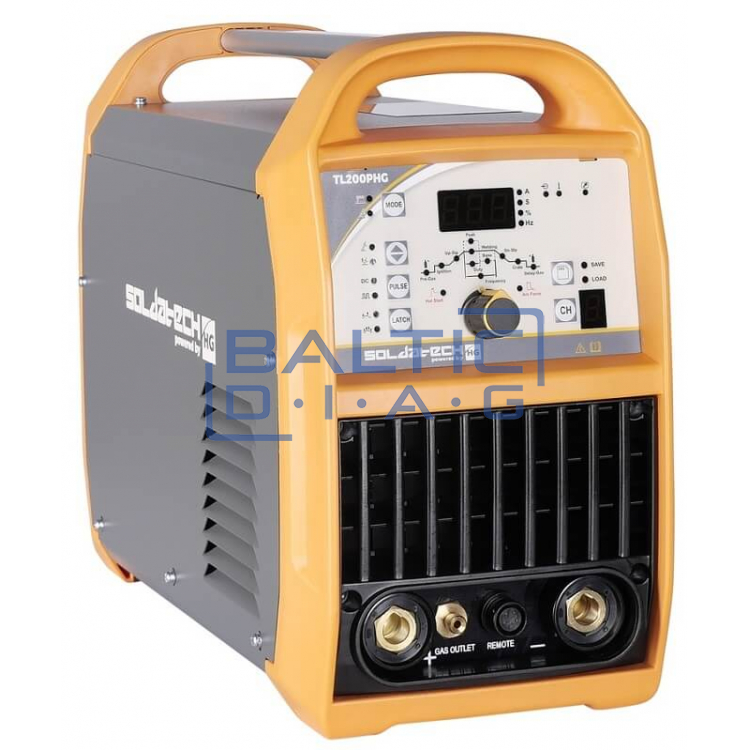

The TL200PHG is a convenient, portable and easy-to-use device that processes a wide range of materials in a variety of welding processes, including impulse, TIG and MMA welding. Adjustment and selection buttons make it easy to set all parameters of the TL200PHG, so that every welding job is done with quality. Advanced IGBT inverter technology ensures that the TL200PHG operates with higher power and longer duty cycle. Overload protection combined with a built-in fan prevents overheating and ensures high-quality welding performance for a long time. The digital adjustable display clearly shows the welding processes and possibilities. The included TLT26M4 torch has a flexible head, allowing TIG welding in any position. The TIG torch also has a remote control that can be used to adjust the amperage range during welding. The hot start/anti-stick feature rapidly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and copper.

Standard equipment:

• Soldatech TLT26M4 remote flexible TIG torch with 4m cable
• Welding earth terminal with 3 m 16 mm² cable
• European Dinse connectors 13 mm
• 3 m gas pipeline with quick connection
• 3-pin 32A plug with 1 m 3x4 mm² cable

Technical specifications:

• Voltage = 230 V - 1 phase
• Frequency = 50/60 Hz
• Circuit breaker = 16 A B-char
• Input power = 8.7 kVA
• No load voltage = 82V
• Duty cycle (at 20°C ambient temperature) = 40% - 200 A
• Duty cycle (at 40°C ambient temperature) = 30% - 200 A
• Welding current range = MMA 20-180A / DC TIG 10-200 A
• Protection class = IP21S
• Dimensions = 460 x 200 x 340 mm
• Weight = 9.5 kg
