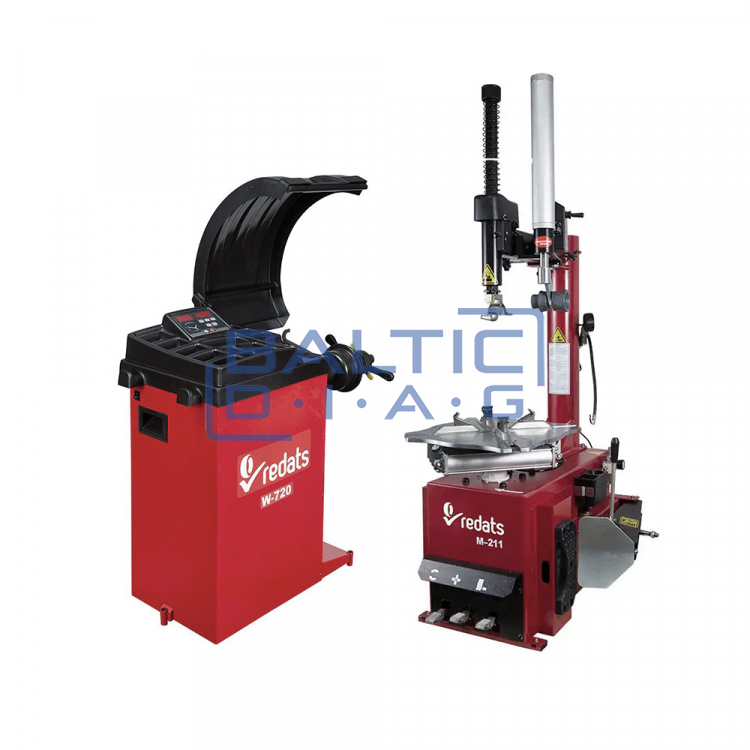

Tire changer and wheel balancing machines Redats M-211 + W-720

Tire changer and wheel balancing machines Redats M-211 + W-720

Manufacturer: Redats. Country: Poland.

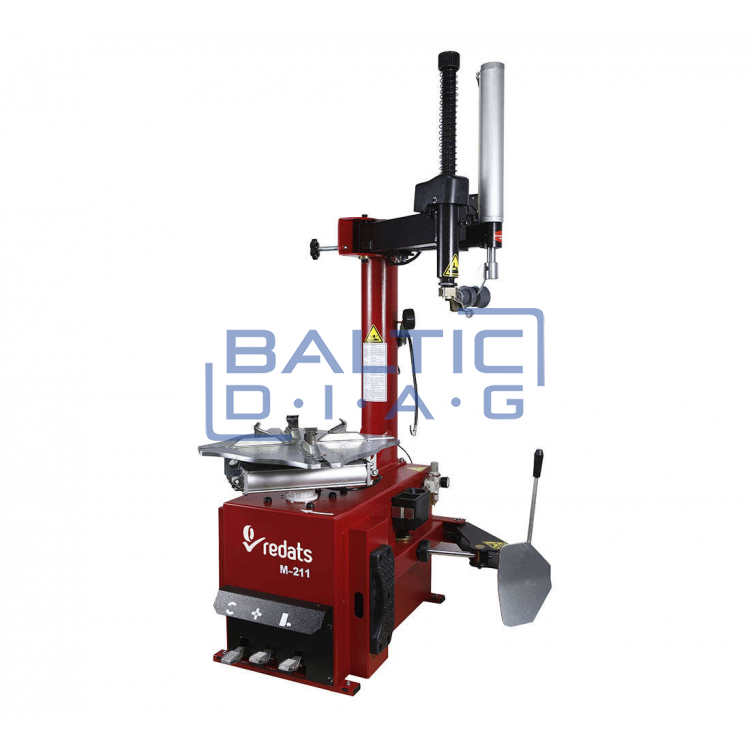

Tire changer machine Redats M-211

Technical data:

• Type: semi-automatic
• Power supply: 3-phase, 400V
• Outer Rim Mount: 10-21"
• Inner rim mounting: 12-24"
• Maximum tire width: 355 mm
• Max. wheel diameter: 1000 mm
• Power of the tire breaker: 2500 kg
• Motor: 0.75 kW
• Working pressure: 8 - 10 bars
• Noise level: < 75 dB
• Max. torque: 1078 Nm
• Table rotation speed: 6 rpm
• Weight: 214 kg
• Dimensions: 190 x 95 x 80 cm

Complete set:

• Tire fitting machines
• Oil + air conditioning unit
• Inflation gun with pressure gauge
• Tire mounting lever
• Pasta container
• Plastic grip protectors (4 pcs.)

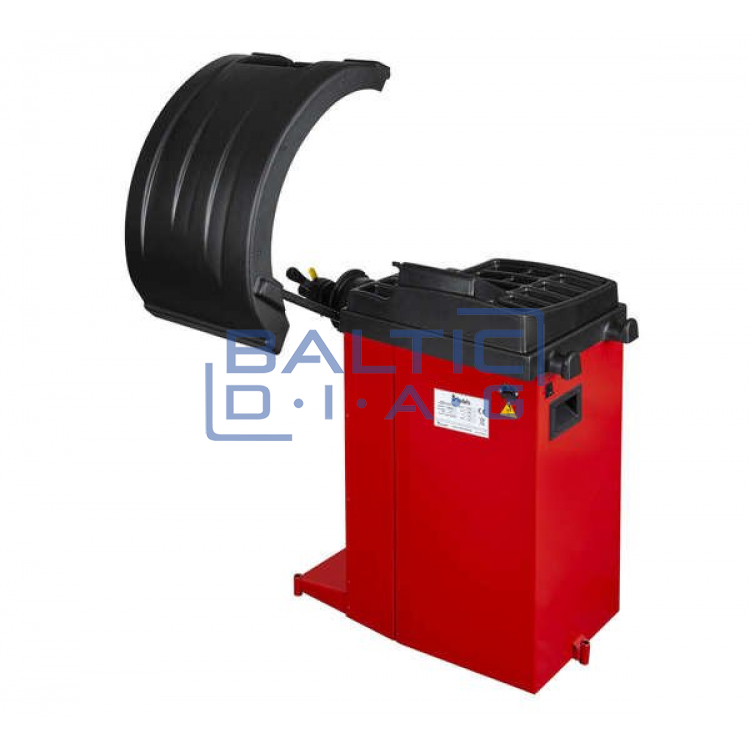

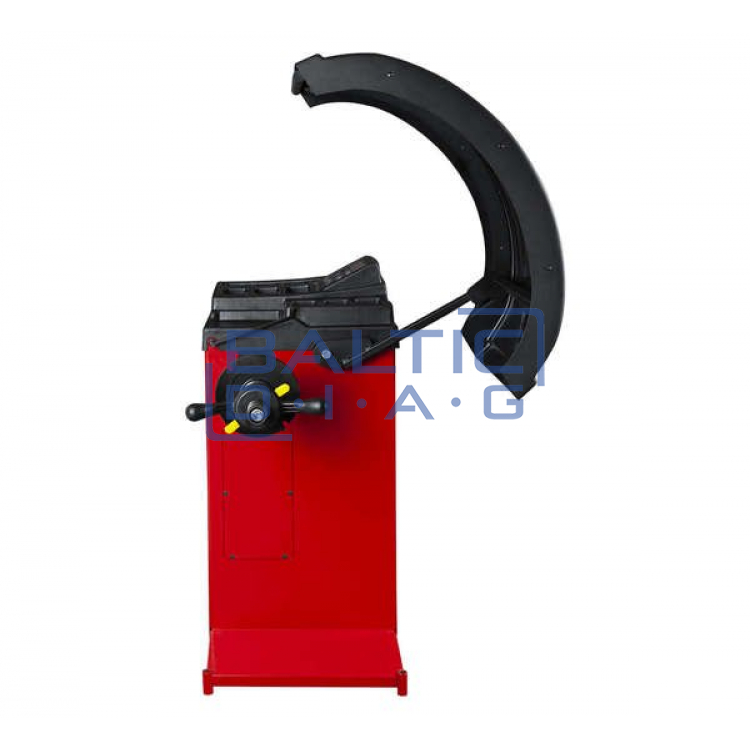

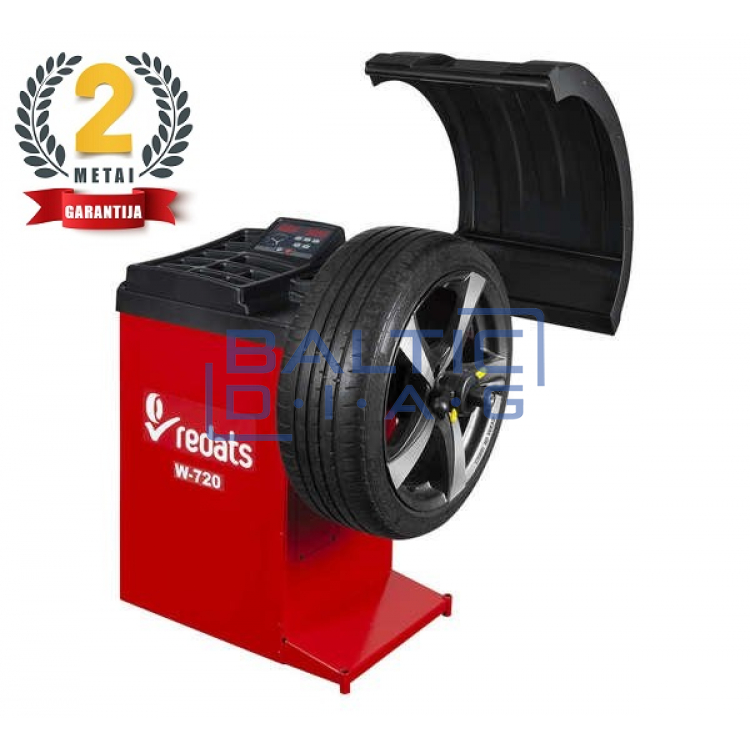

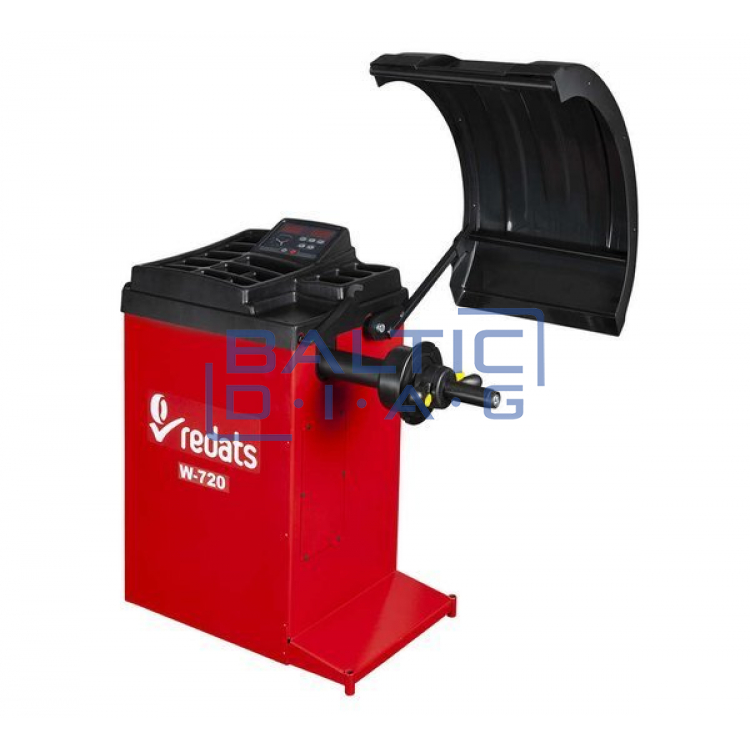

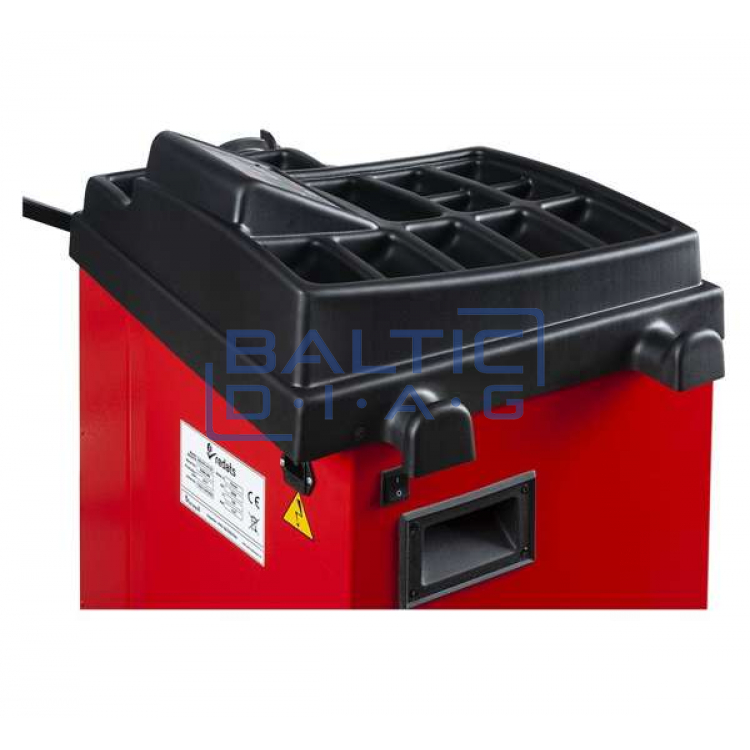

Wheel balancing machine Redats W-720

Functions:

• Dynamic balancing - for light vehicle wheels
• Static balancing - for narrow (motorcycle) wheels
• Four special programs: 3 for aluminum rims and 1 for motorcycle rims
• Quiet, strong and precise shaft
• LED line in balanced position
• Self-diagnosis and device calibration
• The imbalance value is given in grams and ounces

Technical data:

• Rim diameter: 10-24"
• Rim width: 1.5-20"
• ALU programs: 5
• Auto-ALU: automatic indication of the location of the weights
• Max. wheel weight: 65 kg
• Cycle time: 8s
• Max. noise level: > 70 dB
• Shaft diameter: 40mm (diameter) x 3mm (thread pitch)
• Rotation speed: 200 rpm
• Noise level: <70 dB
• Engine power: 0.35 kW

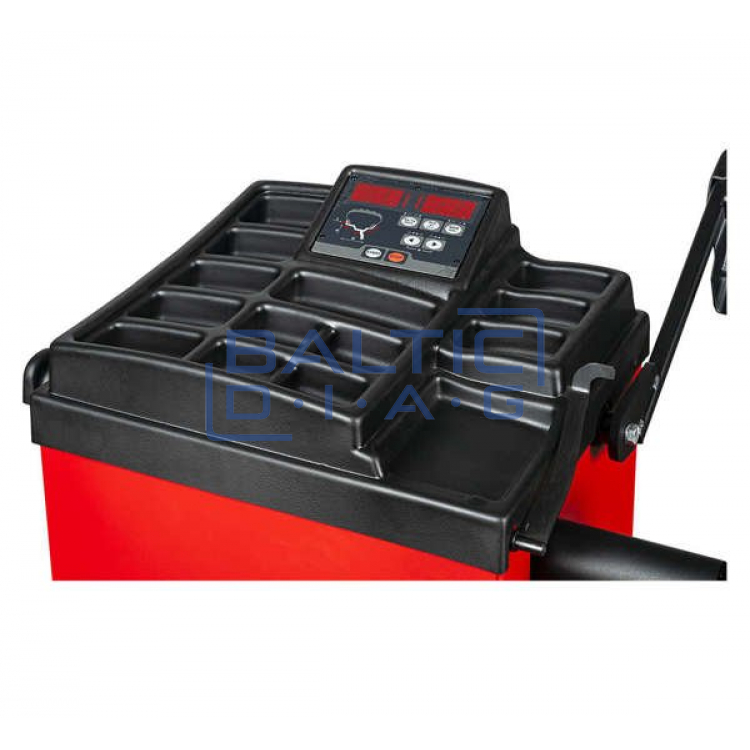

• Screen: LED
• Minimum imbalance: 1 g
• Shaft locking: brake pedal, electromechanical brake
• Additional options: autocalibration, SPLIT
• For power supply: 230V / 50Hz
• Dimensions: 940 x 880 x 1260 mm
• Weight: 100 kg

Complete set:

• Balancing machines
• Calibration weight
• Rim width gauge
• Weight pliers
• 3 balancing cones
• Quick release bolt
• Attachment for release screw for aluminum rims
• Instructions
