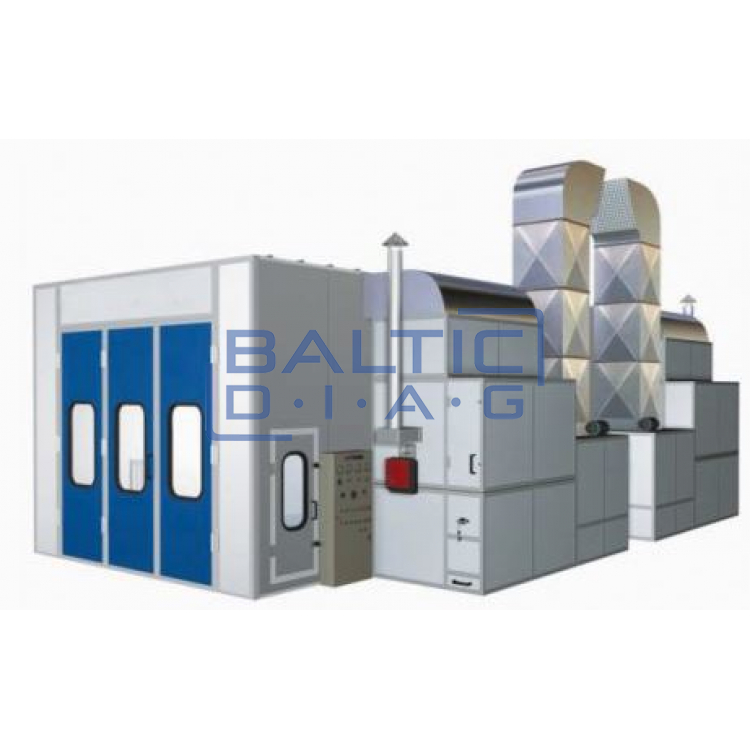

Truck painting camera BD-6900
Technical data:
General information:
Total power: 20 kW, 380V / 3 phases / 50Hz
Color: blue, white
Dimensions:
External dimensions: 12150 x 6096 x 4100 mm
Internal dimensions: 12000 x 4500 x 3500 mm
Main door: 3300 x 3400 mm (with handle)
Staff door: 600 x 2000 mm (with handle)
* Standard dimensions are provided, all dimensions can be adjusted to order. Please contact the listed contacts to calculate the price after resizing.
Walls and ceilings:
75 mm thick panels, EPS foam insulation between two steel panels
Floor system:
Two rows of pits.
Pit dimensions: 10000 x 750 mm (Length x width)
Heating system:
Diesel burner (Riello RG5S) 2 pcs., 400,000 kcal / h
Heat exchanger (stainless steel) 2 pcs.
Baking temperature of 60 ~ 80 ° C is reached in 5 - 10 minutes
Housing 2 pcs., Ducts 4 pcs.
* Gas burner also available on request. Contact the indicated contacts for the price.
Filtration system:
Main filter 1 pcs., Filtration efficiency> 83%
Air intake filter 1 unit, filtration efficiency> 97%
Air extraction filter 1 unit, filtration efficiency> 70%
Glass wool filter
Activated carbon filter
Ventilation system:
Air intake fans 4 pcs., Centrifugal fans 4.0 kW, air capacity: 12500 m3 / h
Exhaust fans 2 pcs., Centrifugal fans 7.5 kW, air capacity: 20000 m3 / h
Housing for fans 2 pcs., Ducts 6 pcs., Electric damper 2 pcs.
* Minimum quantity of ducts to complete the required number of ducts with the painting chamber must be provided in advance. We recommend installing the ducts yourself.
Lighting:
Ceiling lamps 64 pcs., 36W each
Side lamps 40 pcs., 36W each
* Available between neon and LED lamps.
Control panel:
1 pc., With paint switch, baking switch, light switch, emergency brake, etc.
Other information:
The set includes all equipment, connections, insulation, seals, screws, etc.
