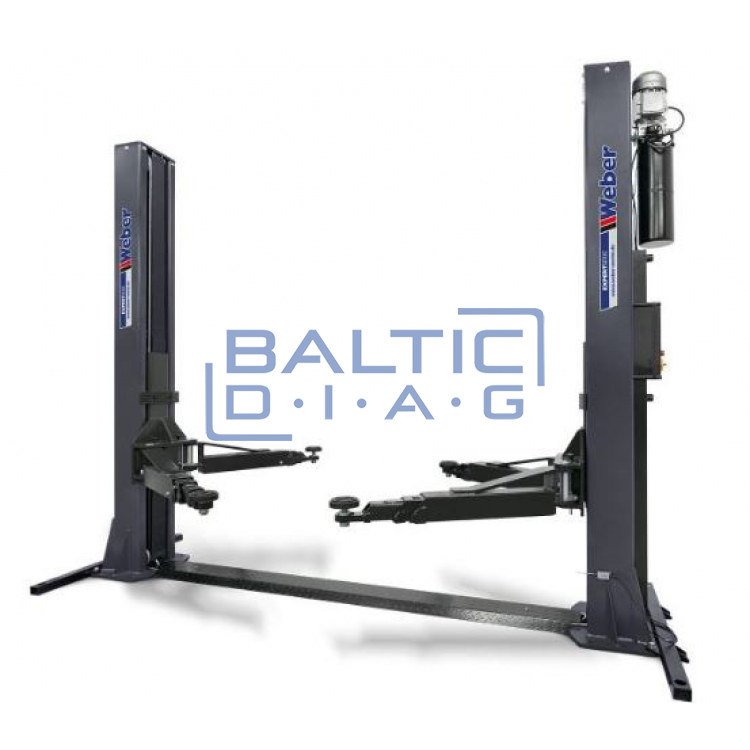

Two post lift Weber Klassik 4.0A

Electrohydraulic two-column lift Weber Classic 4.0A

Description:

Sturdy passing plate between the columns

Bending-resistant steel column housing

Electric unlocking of security locks

Electric lifting limit switch

CE-Stop audible signal

Low minimum height

Rubber car door guards on both columns

Wide passage

Automatic paw lock, manual unlocking

Two-step front and rear paws

Asymmetrical paws provide more convenient access to the car door

Minimal wear - easy maintenance

Powder coated surfaces

The main parts are assembled in advance

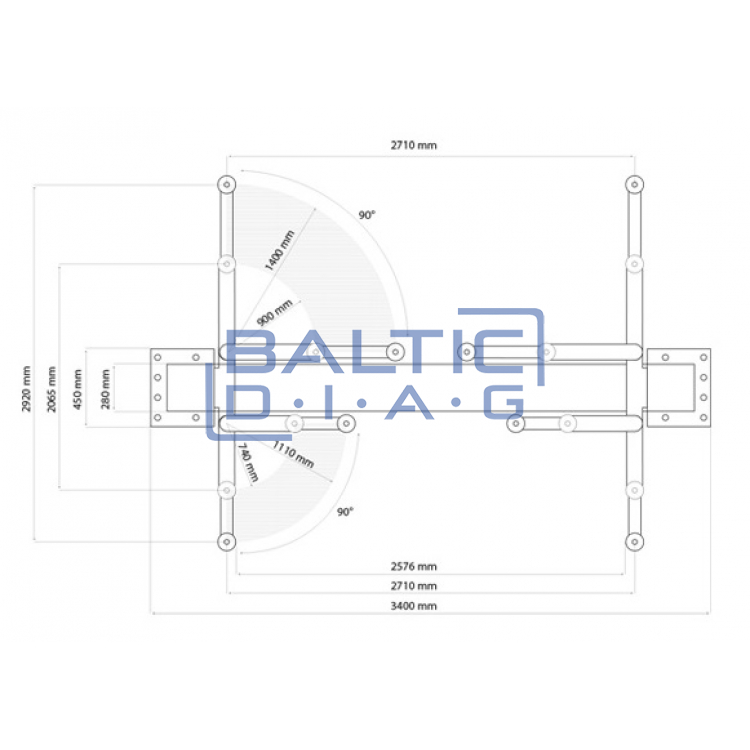

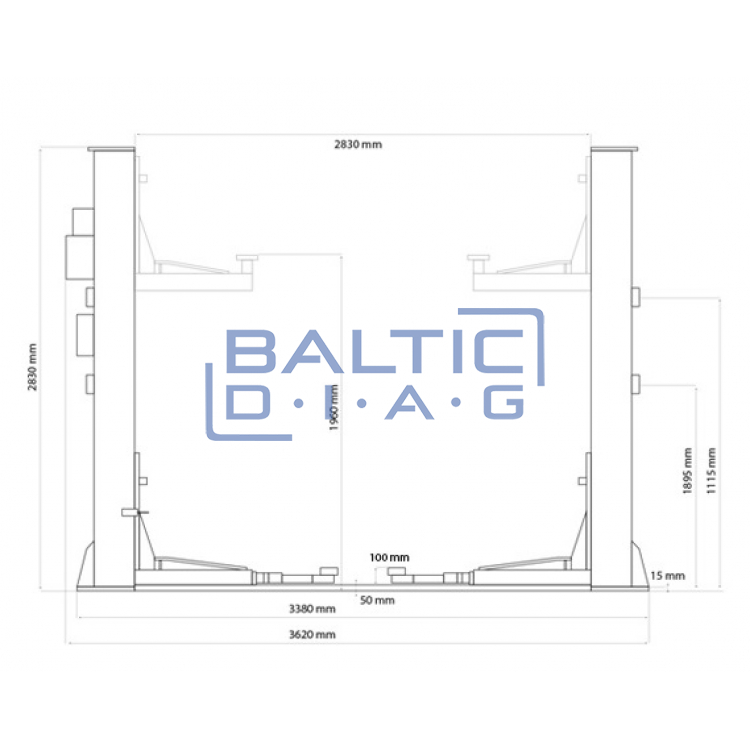

Technical parameters:

Lifting capacity: 4000 kg

Max. lifting height: 1940 mm

Min. lifting height: 110 mm

Height of the passage plate: 50 mm

Column height: 2830 mm

Distance between columns: 2830 mm

Passage width: 2580 mm

Overall width: 3560 mm

Length of long paws: 900 - 1400 mm

Length of short paws: 620 - 880 mm

Minimum required ceiling height: 3100 mm

Weight: 620 kg

Engine power: 2.2 kW

Lifting time: 55 s

Power supply: 230V / 1Ph / 50Hz

Columns and plate color: black - RAL 9017

Paw color: red - RAL 3020
