U-shaped scissor lift table
U-shaped scissor lift table

U-shaped scissor lift table

  • SKU: BD873190
0.00 €

Prices shown include tax

Send Message

Description

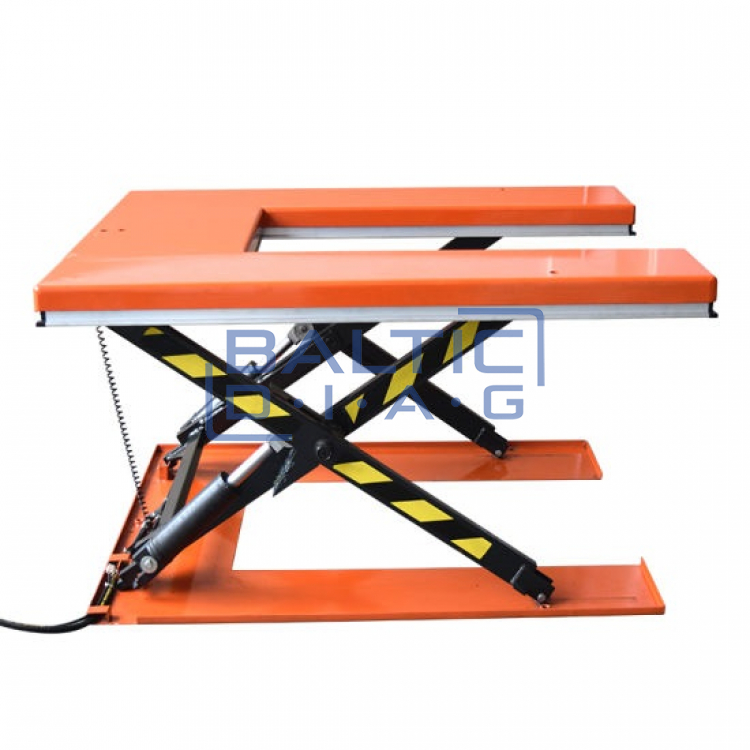

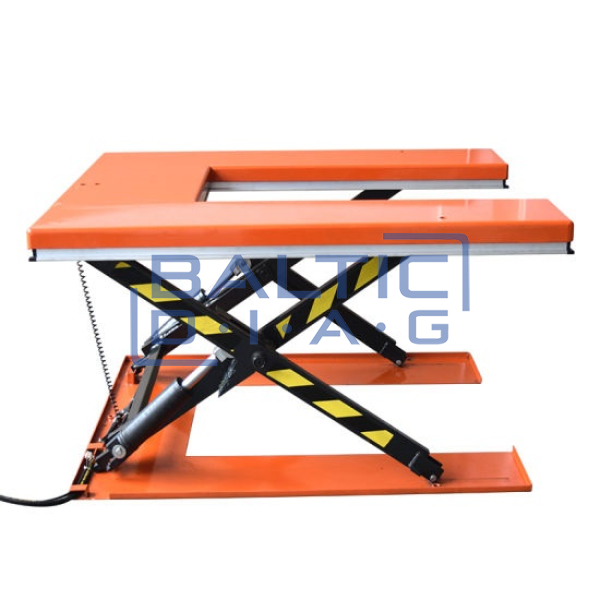

U-shaped scissor lift
Warranty: 12 months
The UL series scissor lift table is a high-quality electro-hydraulic scissor lift with a loading platform from 600 kg to 1,500 kg and a lifting height of up to 860 mm. You can also choose the platform size or lift height. The scissor lift is designed so that the load to be lifted can be lifted from both sides, there is no need to use a ramp to lift the product on the table.
  • Maximum height: 860 mm
  • Basic size: 1335 * 947 mm
  • Engine power: 1.1 kW



Model

Load Capacity kg

Self Height mm

Platform Size

(mm)



Lifting Time (s)



Size A (mm)

SizeB

(mm)



Size C (mm)



Net Weight

(kg)

UL600

600

85

1450*985

25- 35

200

1080

580

207

UL1000

1000

85

1450*1140

25- 35

280

1080

280

UL1500

15001051600*118030- 403001094380
